Vacuum Amplifier: Description and Operation

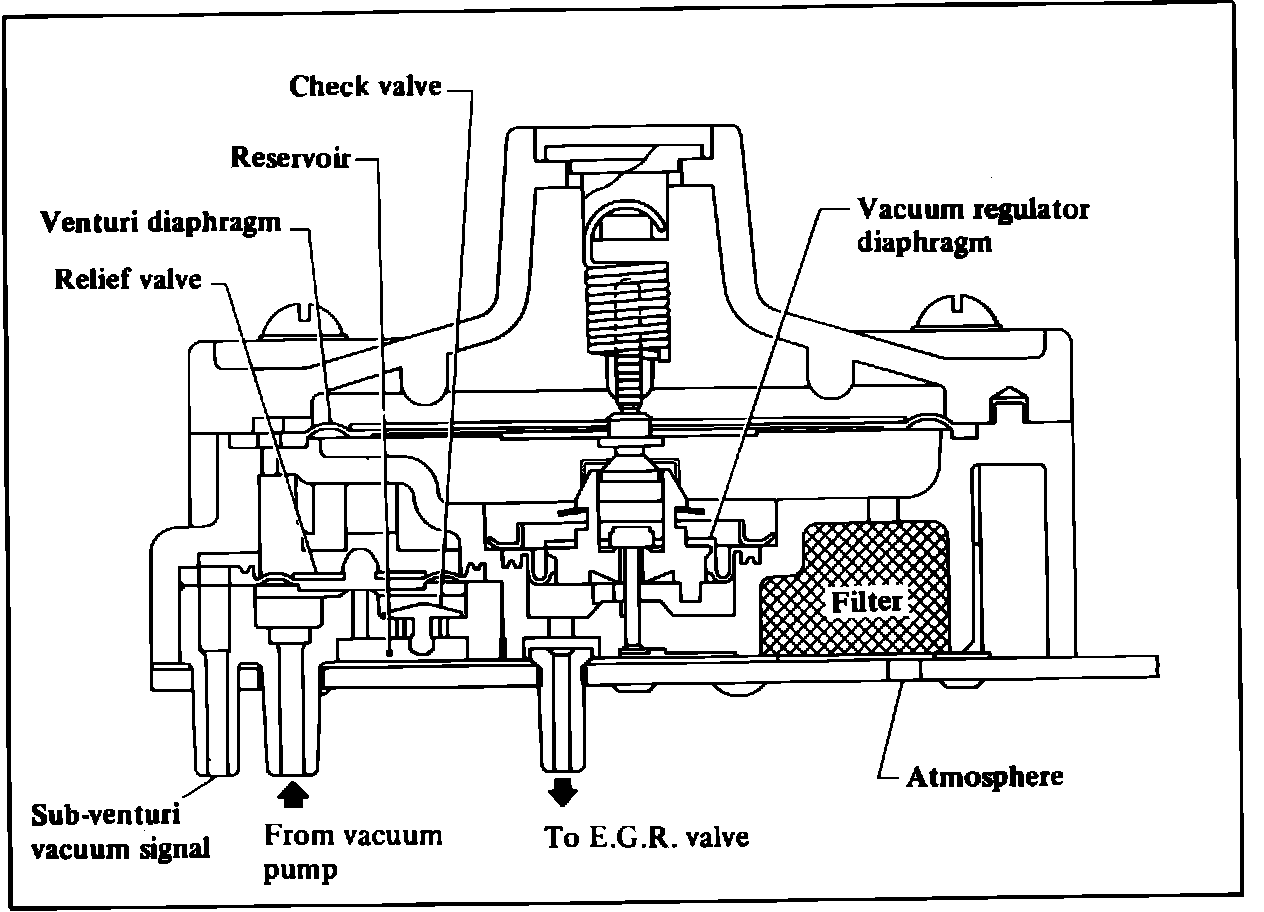

Fig. 55 Vacumm amplifier.:

The vacuum amplifier which receives a weak vacuum signal produced in sub-venturi, activates the venturi diaphragm. This controls the output vacuum admitted to the EGR control valve.
