Vacuum Control Valve

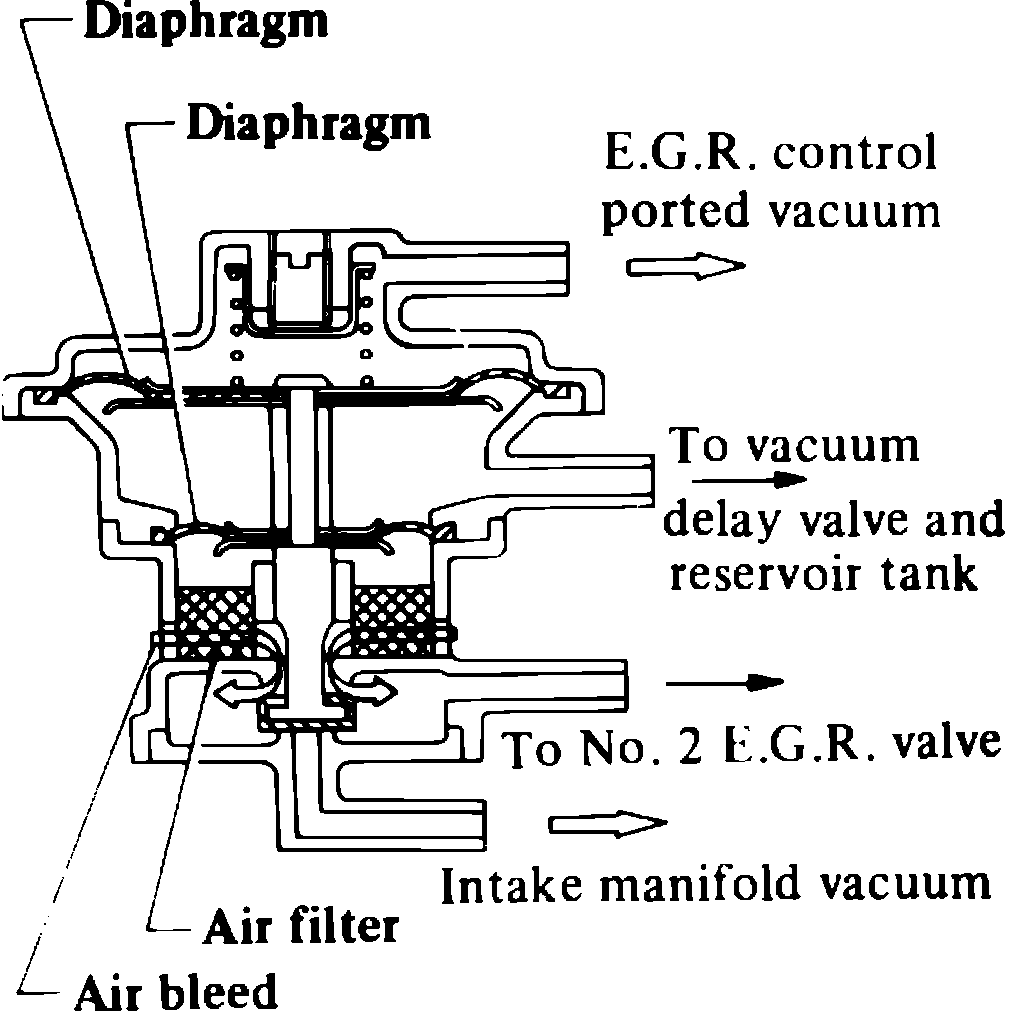

Fig. 17 Vacuum control valve. (Typical):

During rapid acceleration, the vacuum control valve, Fig. 17, monitors vacuum in the reservoir and engine vacuum. The control valve serves to activate a second EGR control valve when there is a sudden drop in the vacuum signal.
