Thermal Vacuum Valve: Testing and Inspection

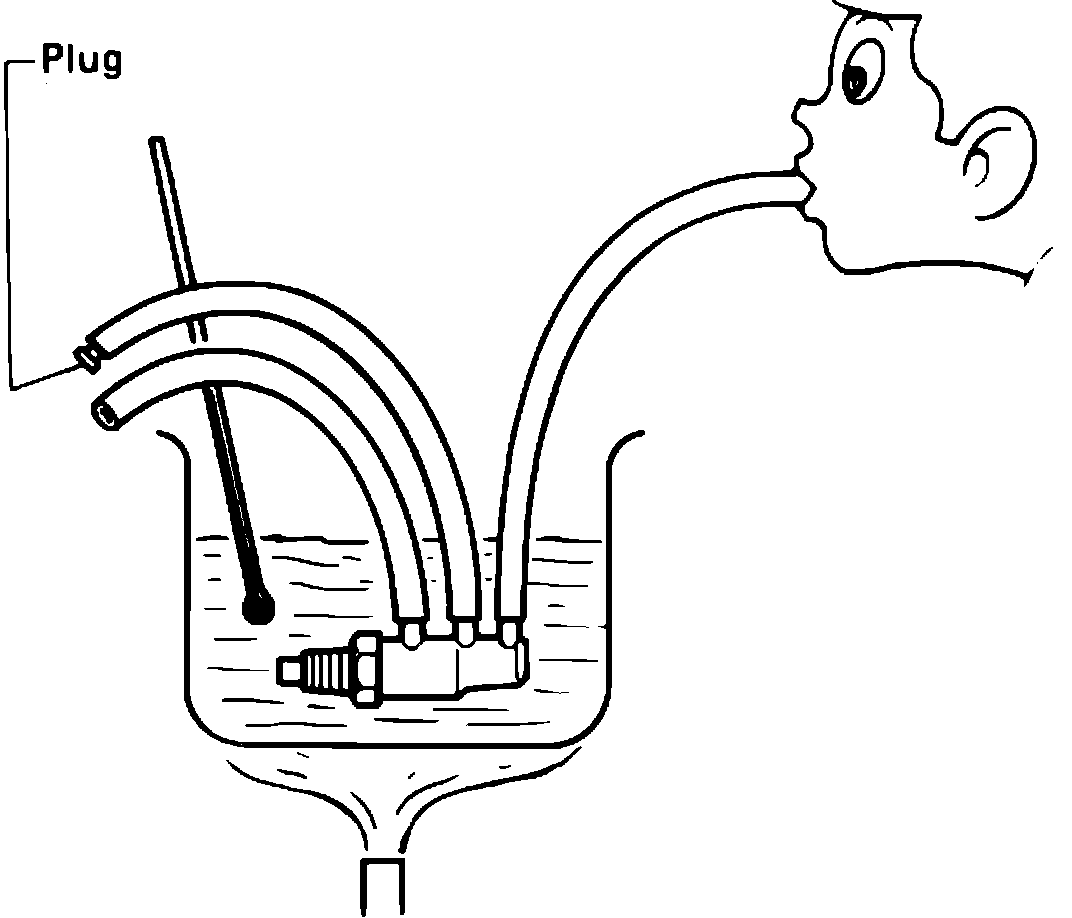

Fig. 54 Thermal vacuum valve test:

1. Drain a portion of engine coolant, then remove thermal vacuum valve from engine.
2. Inhale air from air cleaner side port, Fig. 54. Ensure valve opens at temperatures between 59°F and 140°F and is closed at all other temperatures. Do not allow water to get inside valve.
