Transmission Position Sensor/Switch: Testing and Inspection

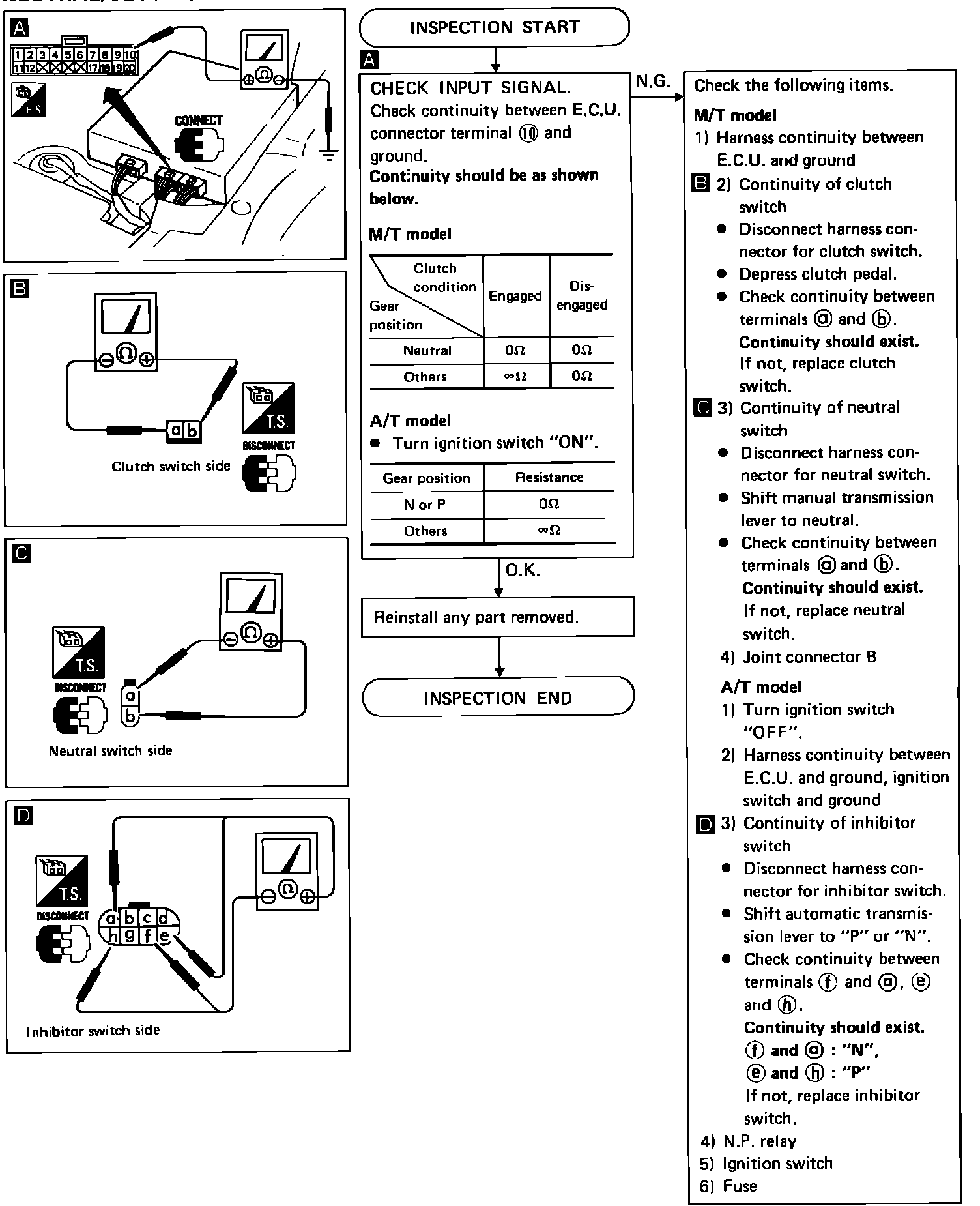

Fig. 395 Neutral/inhibitor switch circuit diagnosis.:
