Mode V (Real Time Diagnostic System)

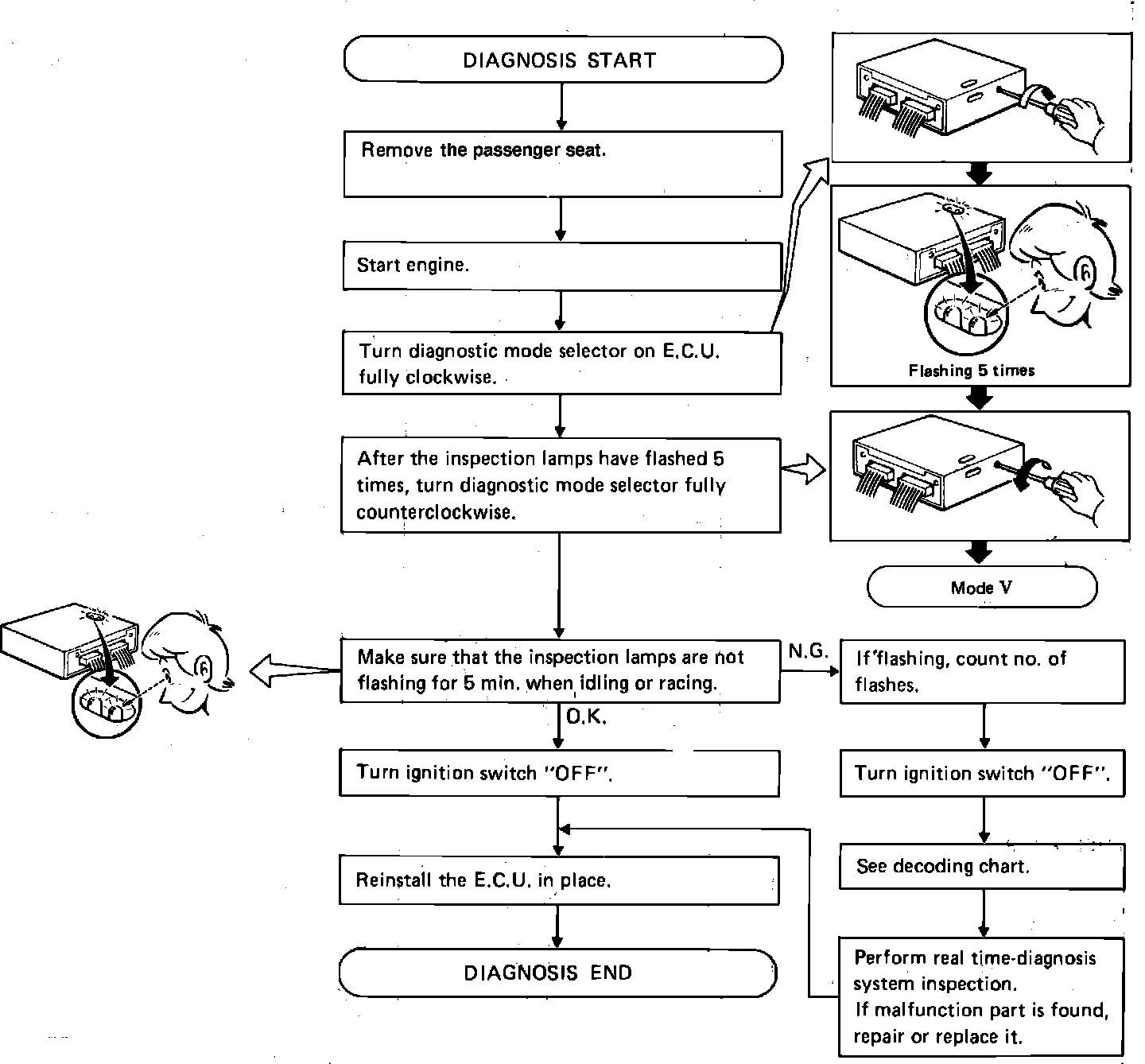

Fig. 269 Mode V self diagnosis procedure.:

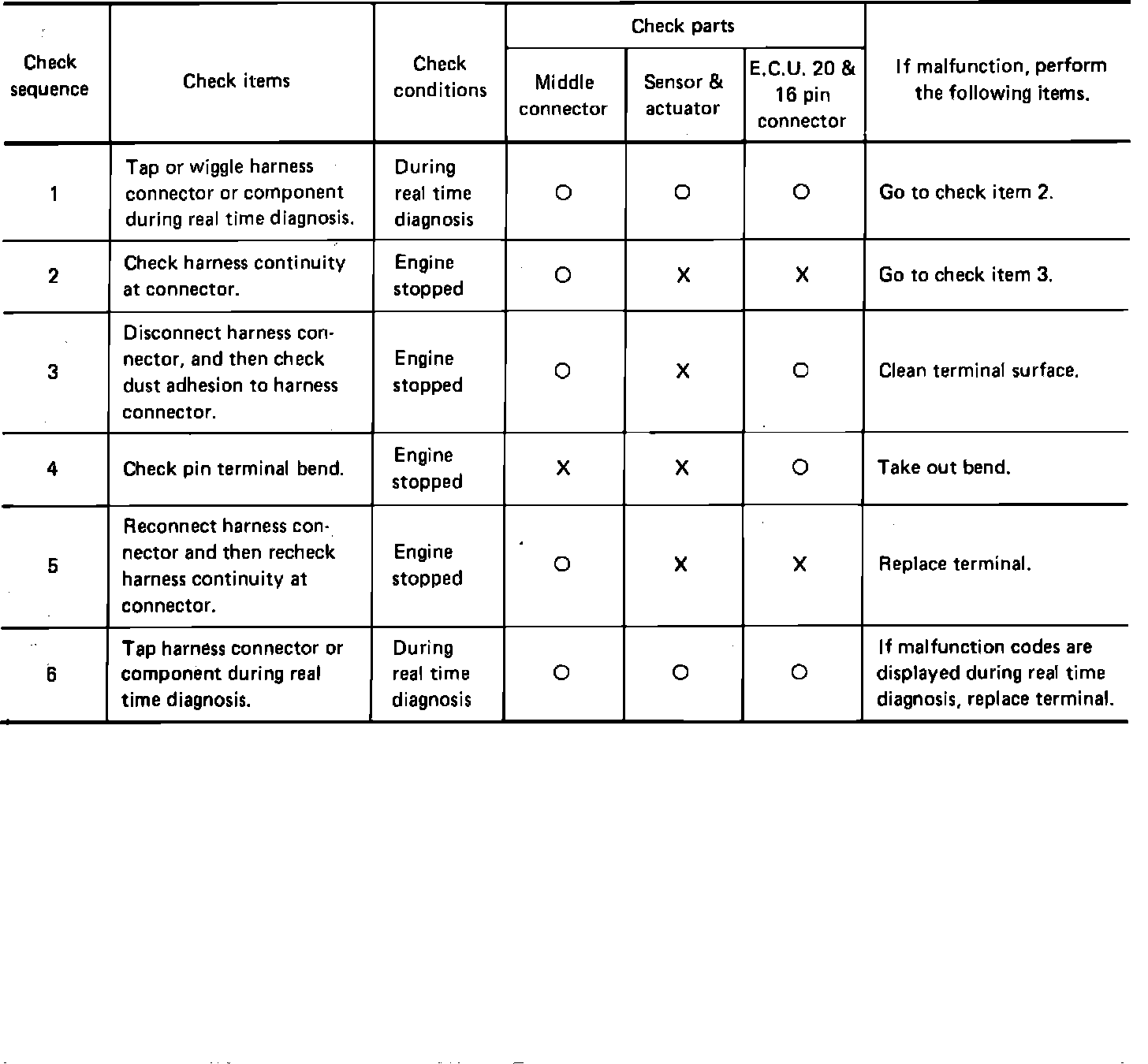

Fig. 271 Mode V real time diagnosis inspection.:

Switch ON/OFF Diagnosis
Refer to "Connector I.D. & Voltage Specs." for diagnosis procedures.
