Idle Speed/Ignition Timing/Idle Mixture Ratio Inspection

Start with CHART 1 and continue until re-directed by the charts.

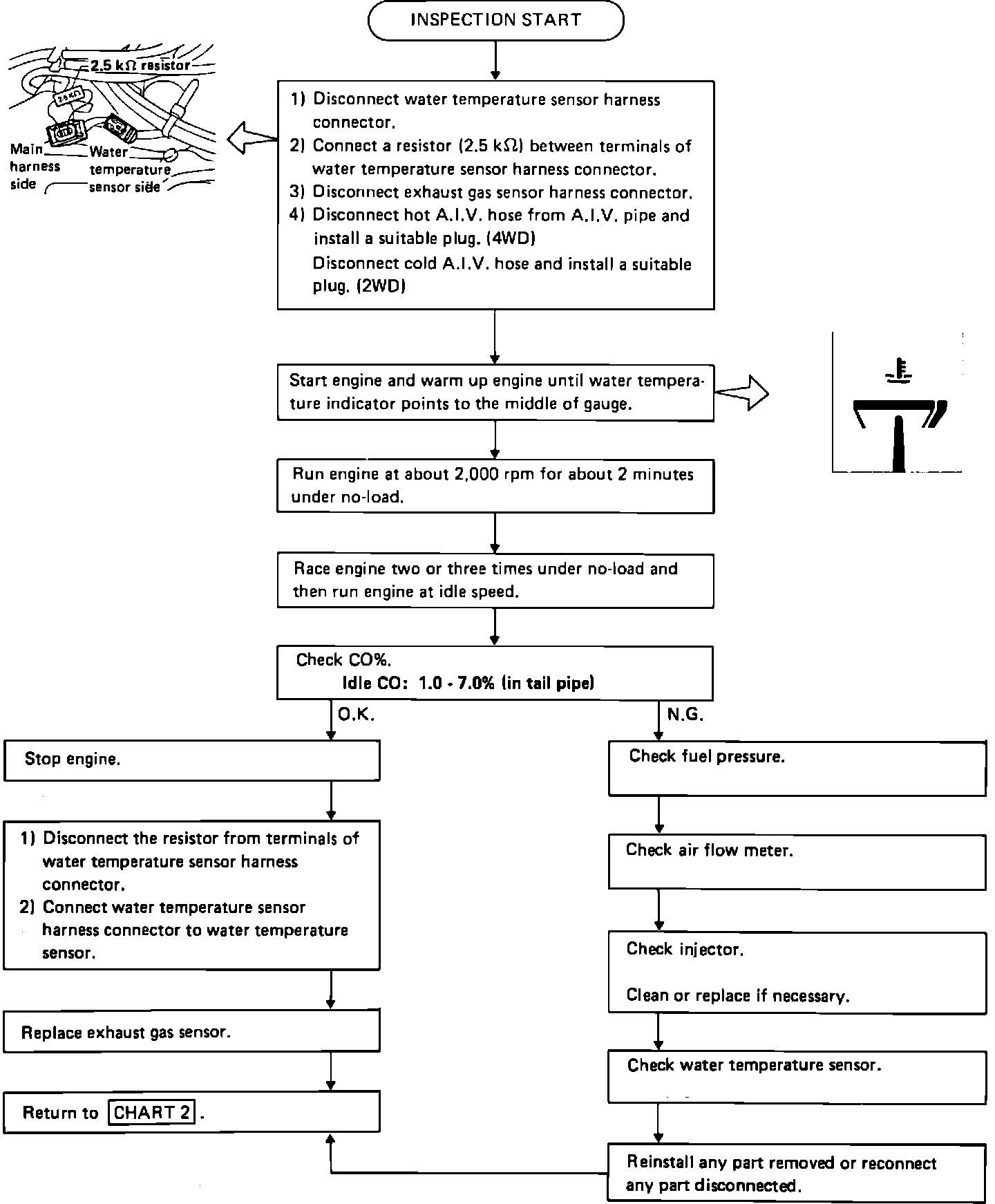

Chart 1:





CHART 1

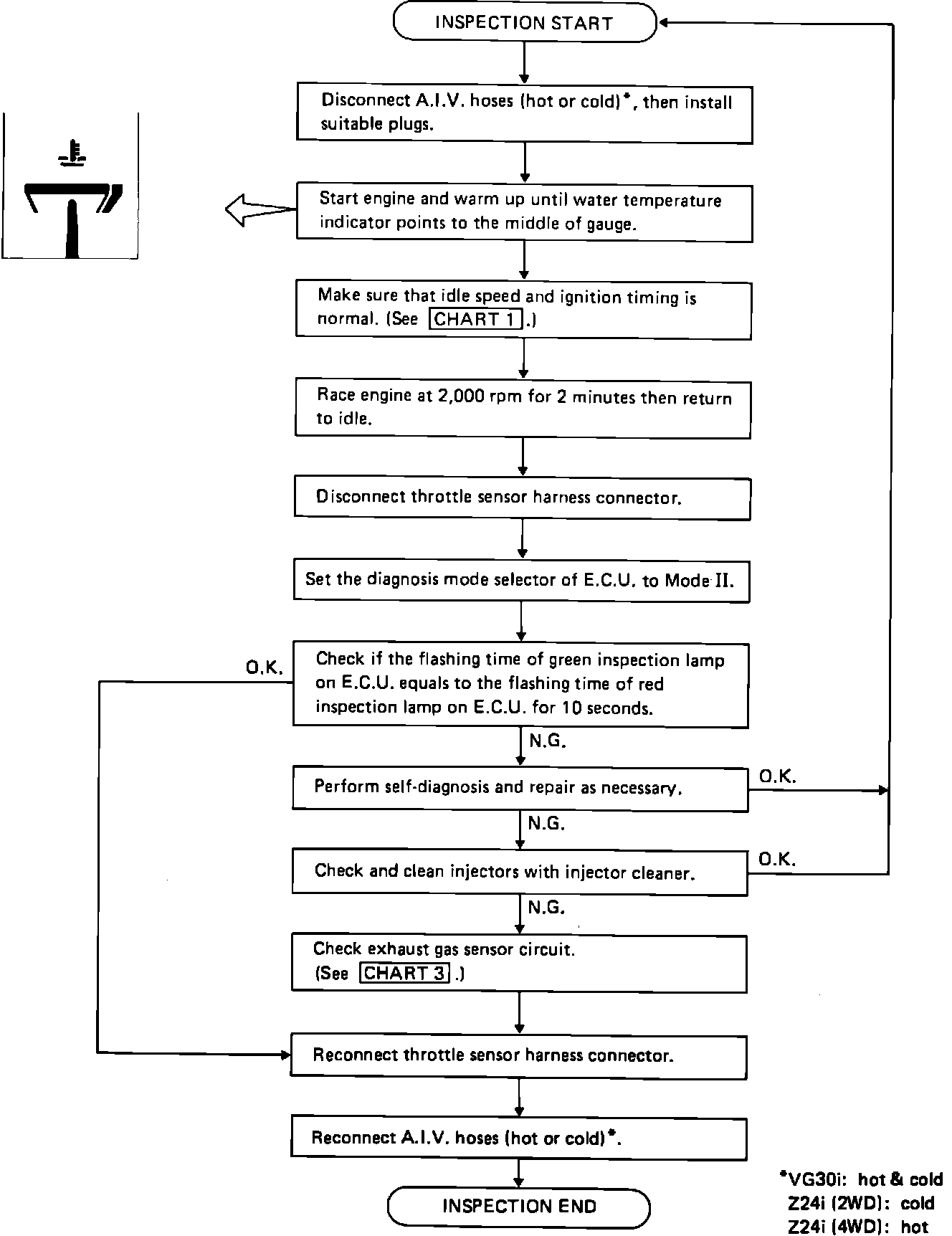

Chart 2:





CHART 2

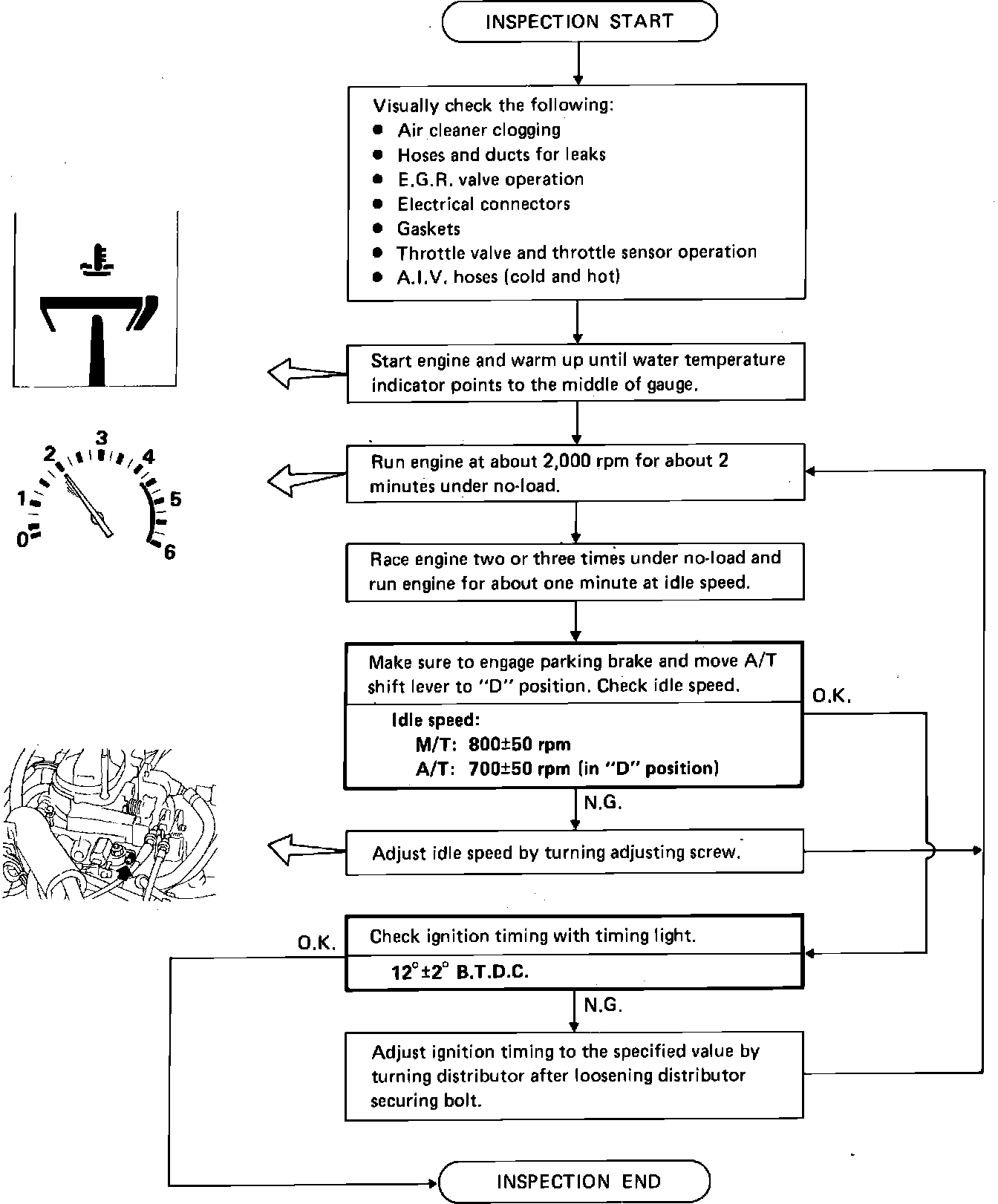

Chart 3:





CHART 3

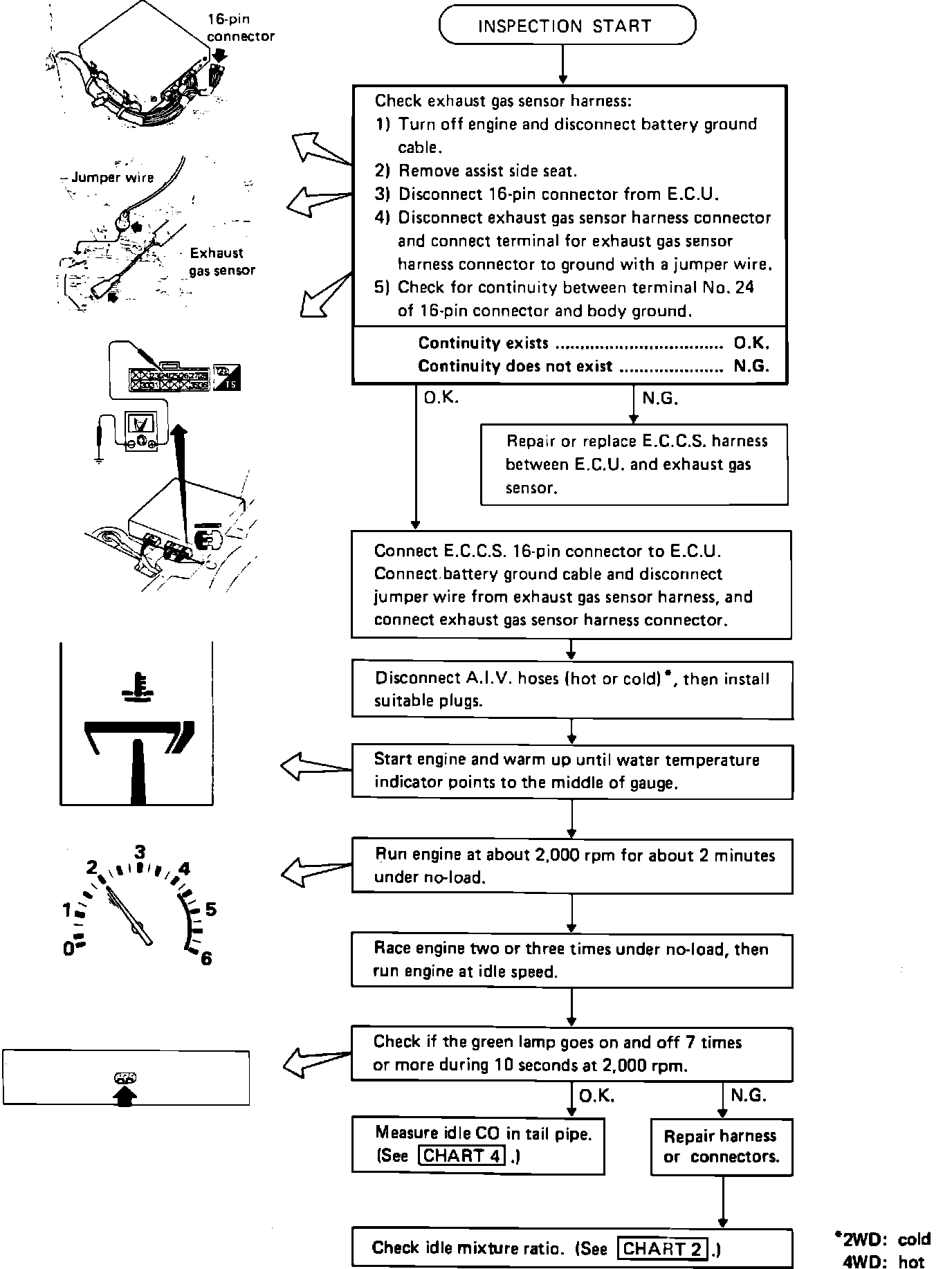

Chart 4:





CHART 4
