Home >> Nissan-Datsun >> 1988 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter >> Diagrams >> Electrical Diagrams

Electrical Diagrams

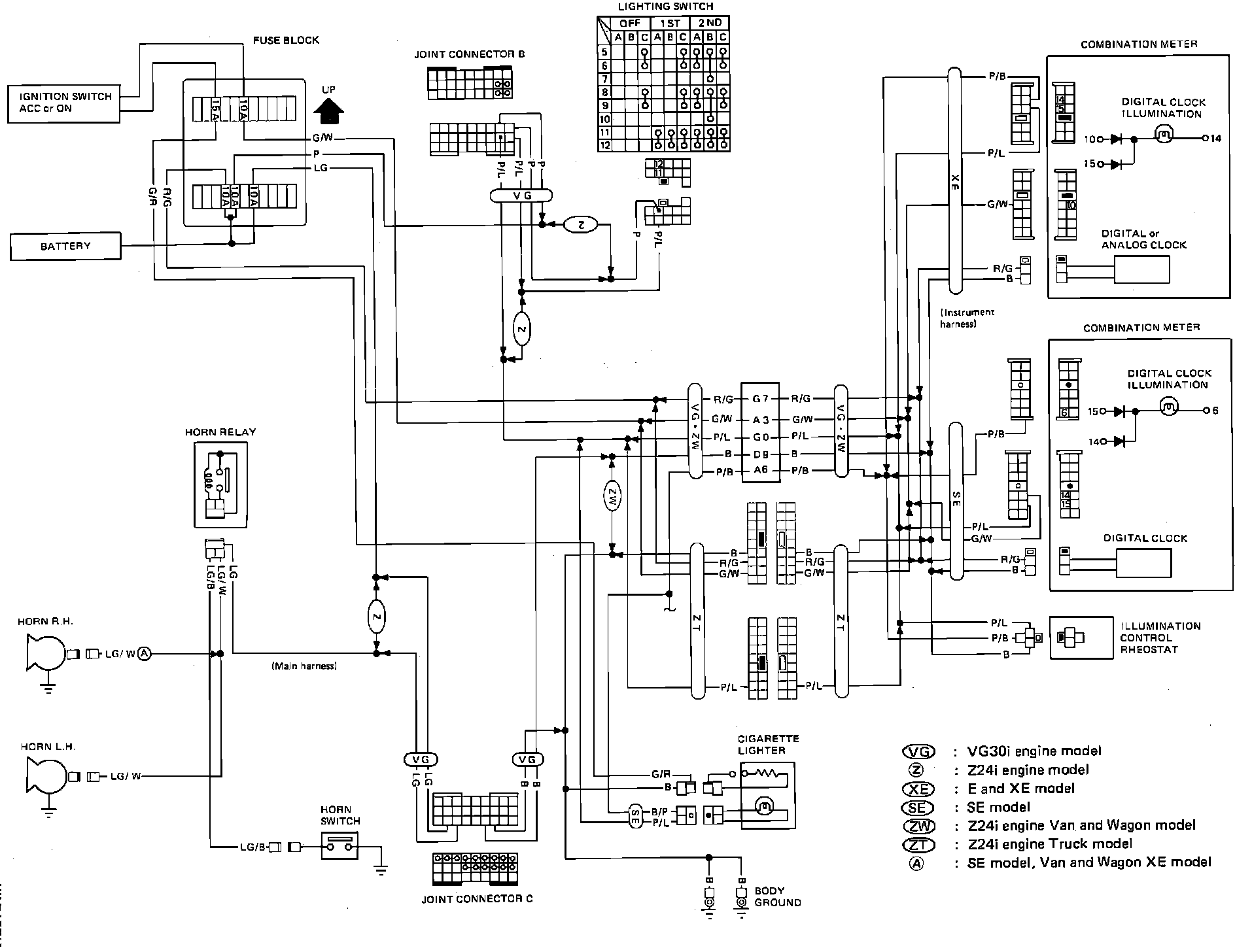

Fig. 14 Cigarette Lighter, Clock & Horn Wiring Circuit:
