Heating System Troubleshooting - Manual Type

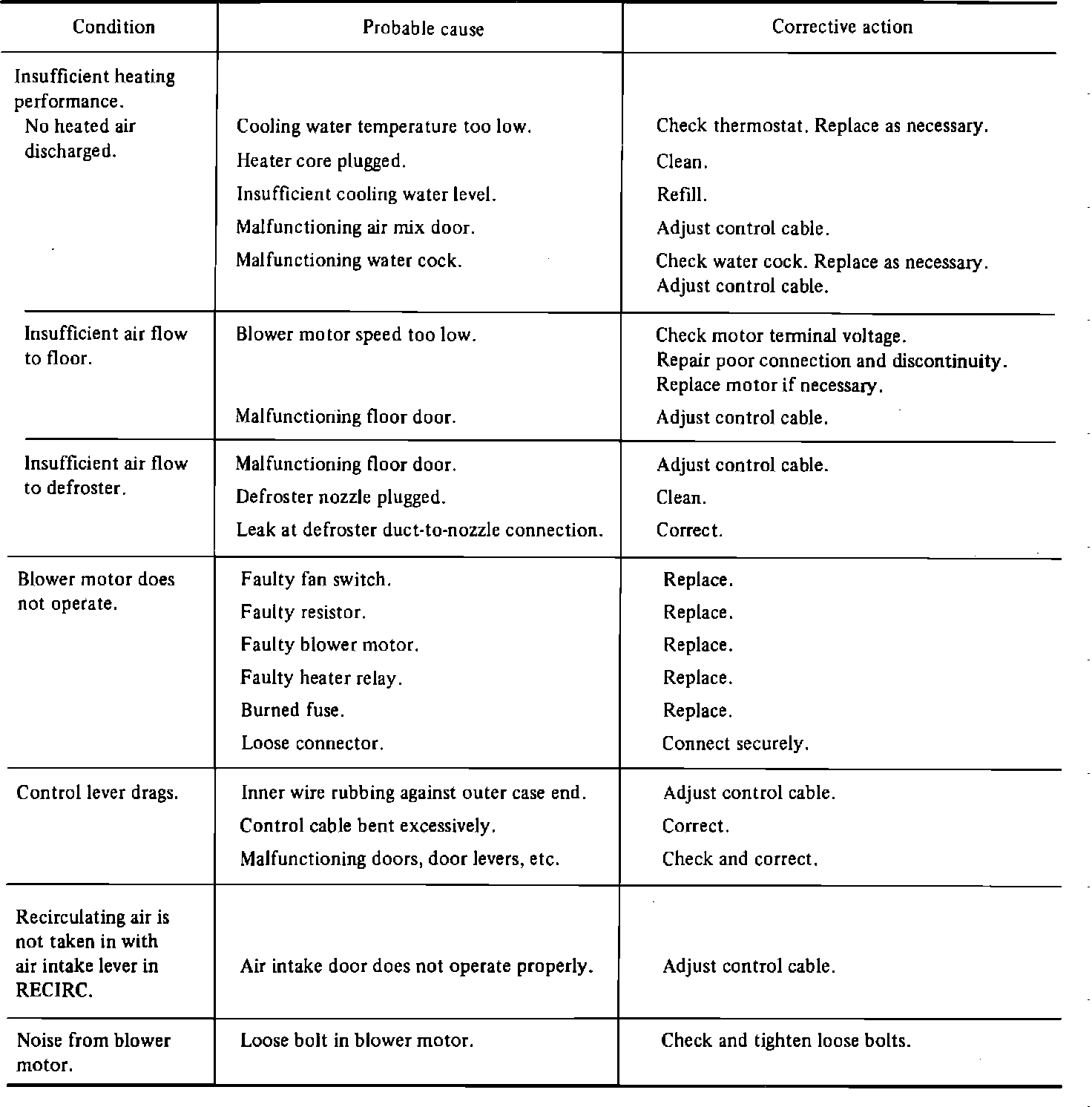

Fig. 4 Heater diagnosis.:






When diagnosing heater operation only, refer to Fig. 4.
