Home >> Nissan-Datsun >> 1988 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Temperature Sensor (Gauge) >> Diagrams >> Electrical Diagrams

Electrical Diagrams

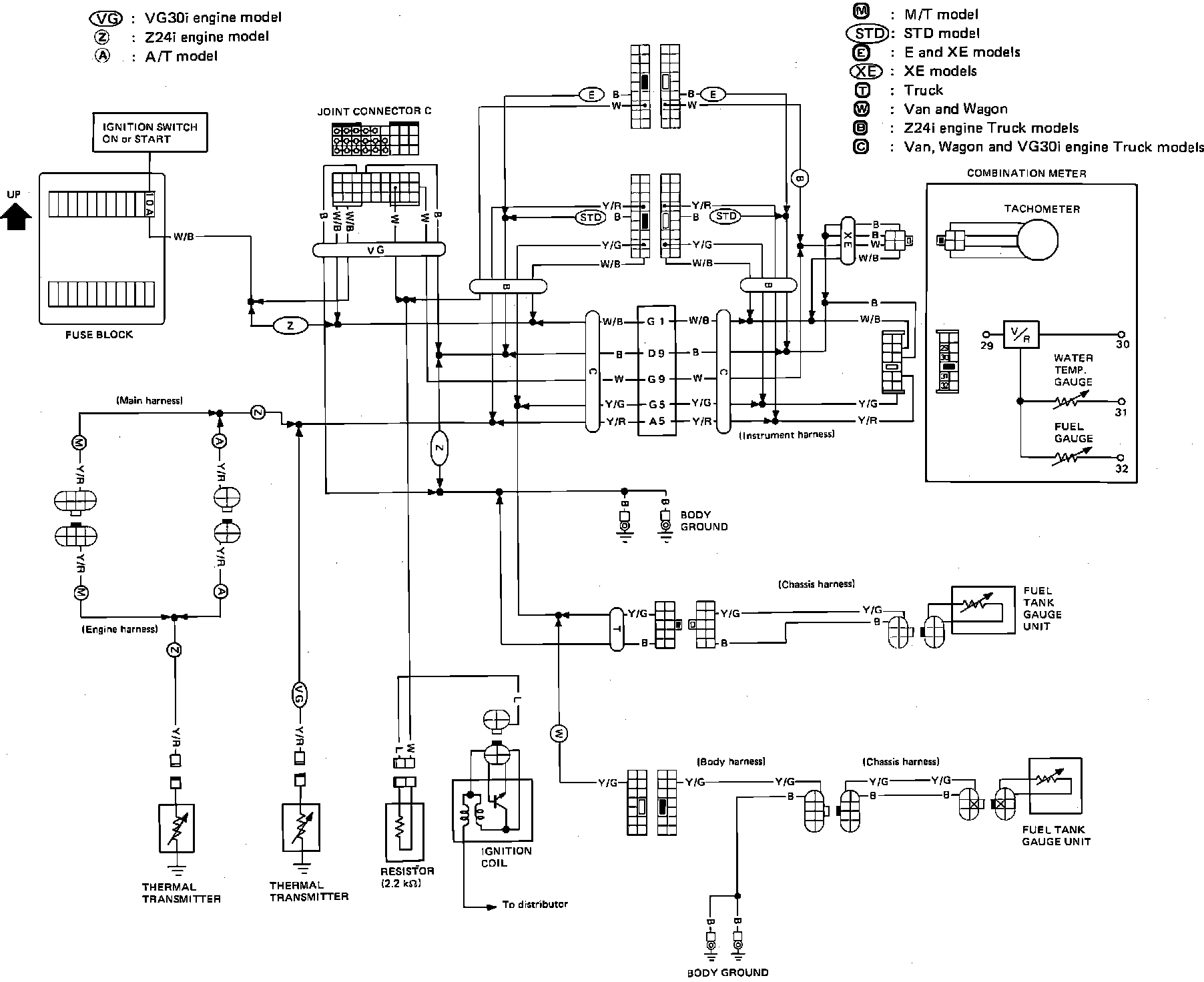

Fig. 27 Instrument Panel Wiring Circuit:
