Emission Control System - W/Z24I Engine
Emission Control System - W/Z24I Engine

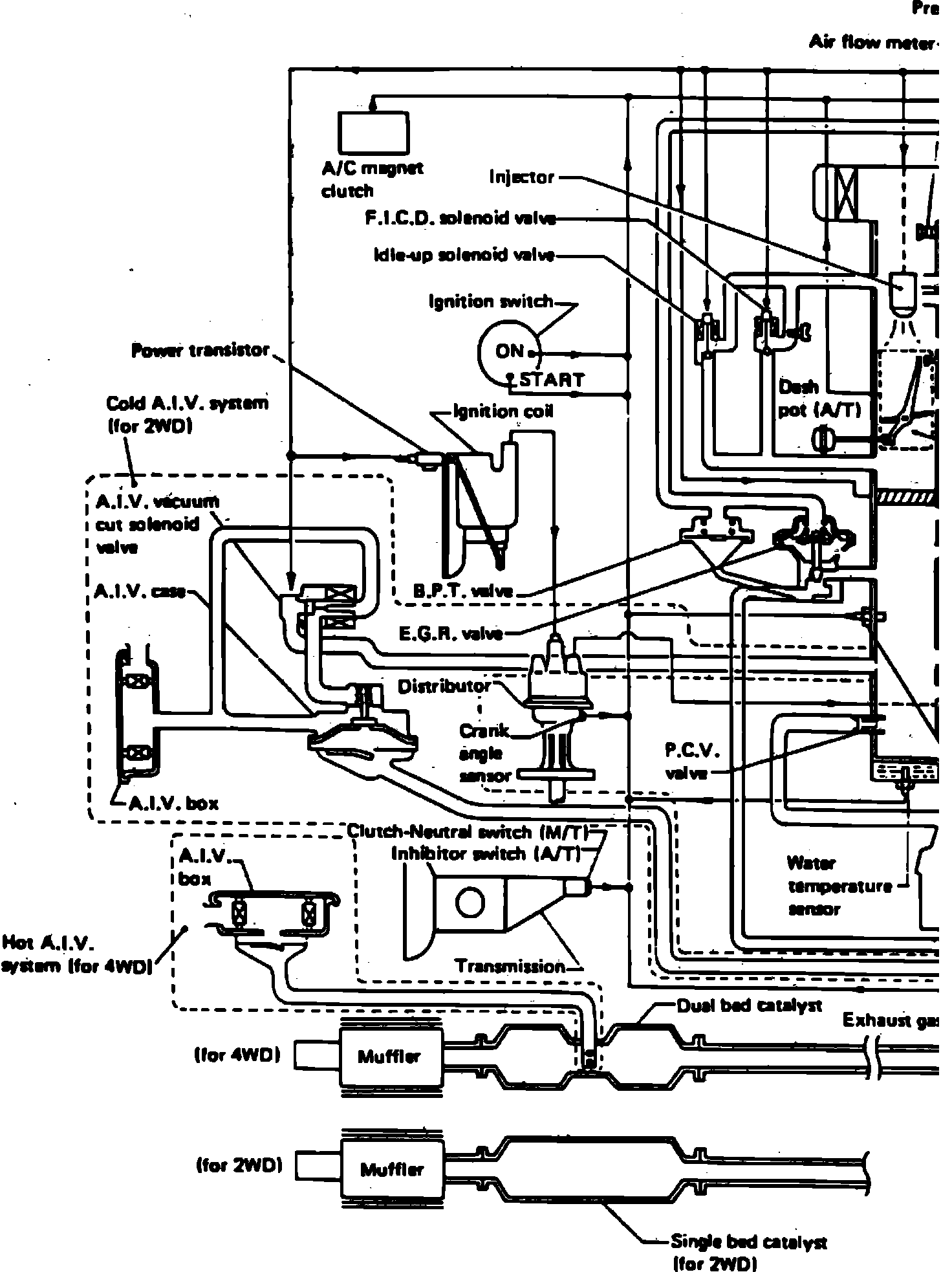

Fig. 112a Emission control system. 1988 Pathfinder & Pickup w/Z24i engine (Part 1 of 2):

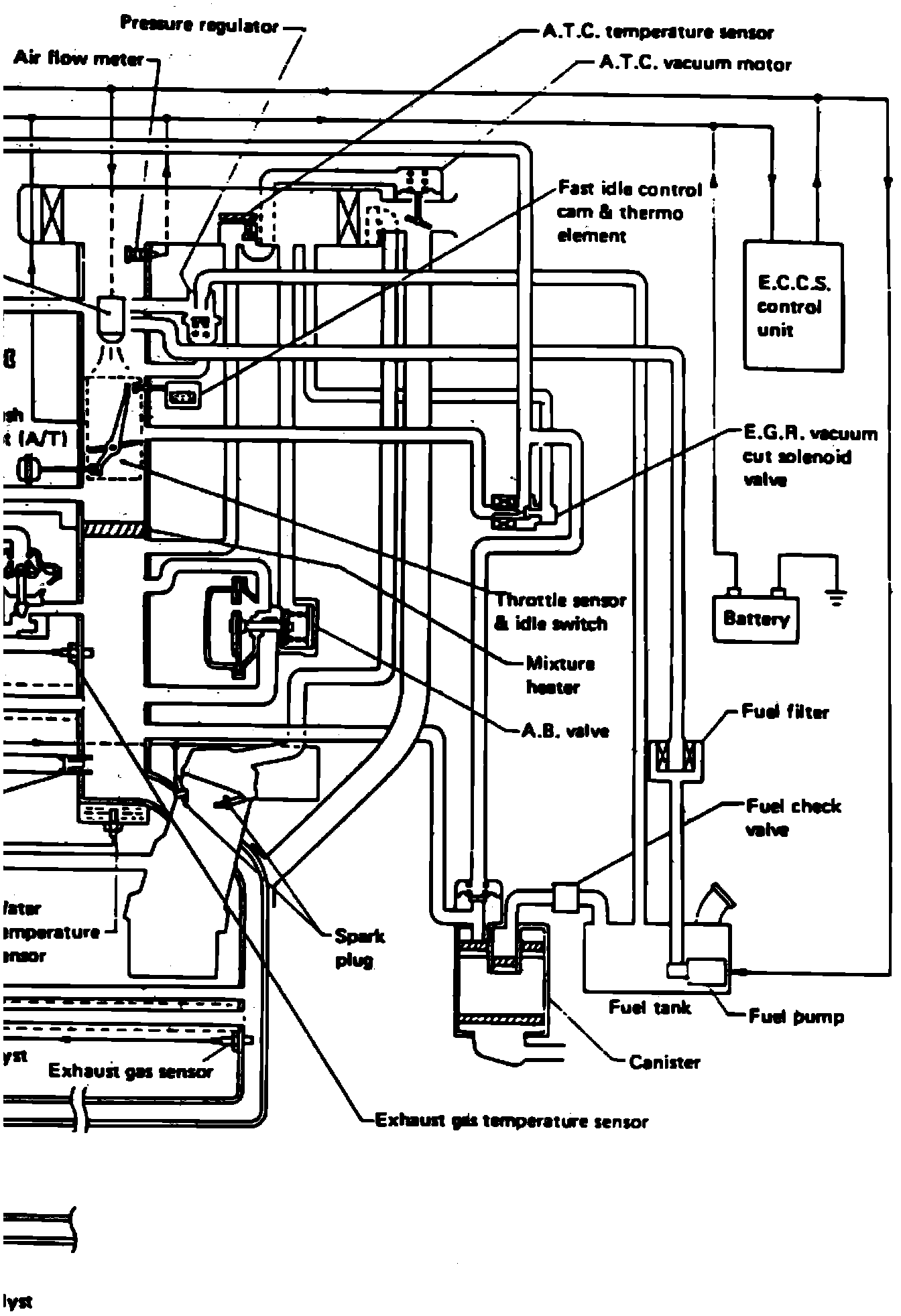

Fig. 112b Emission control system.:
