Nissan-Datsun
>>
1988
>>
D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering Gear
>>
With Power Steering
With Power Steering

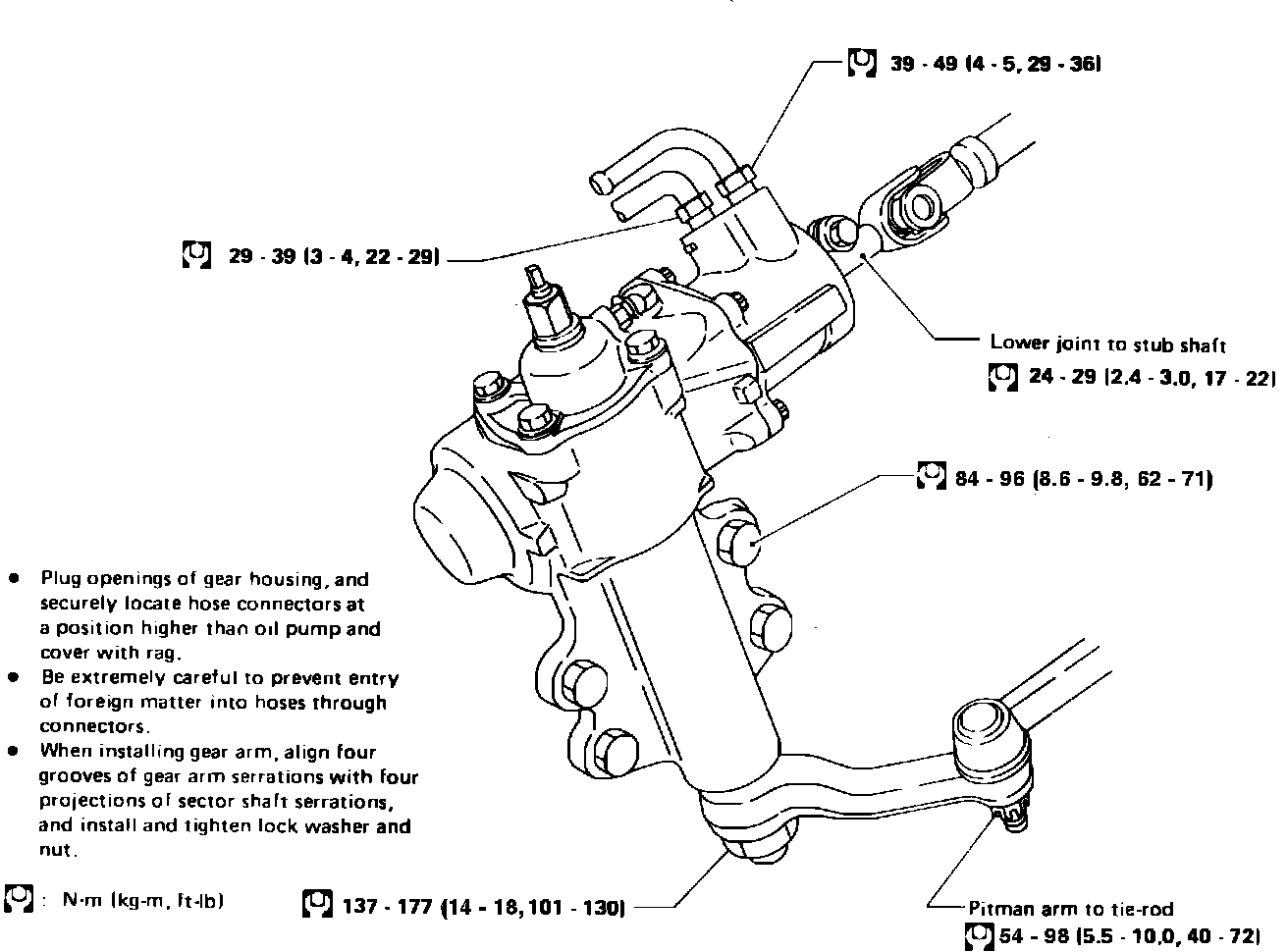

Fig. 15 Power steering gear replacement. Pathfinder & 1986-1/2 - 88 Pickup & w/PB48S type steering gear (PB56S type steering gear similar):
