Home >> Nissan-Datsun >> 1988 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

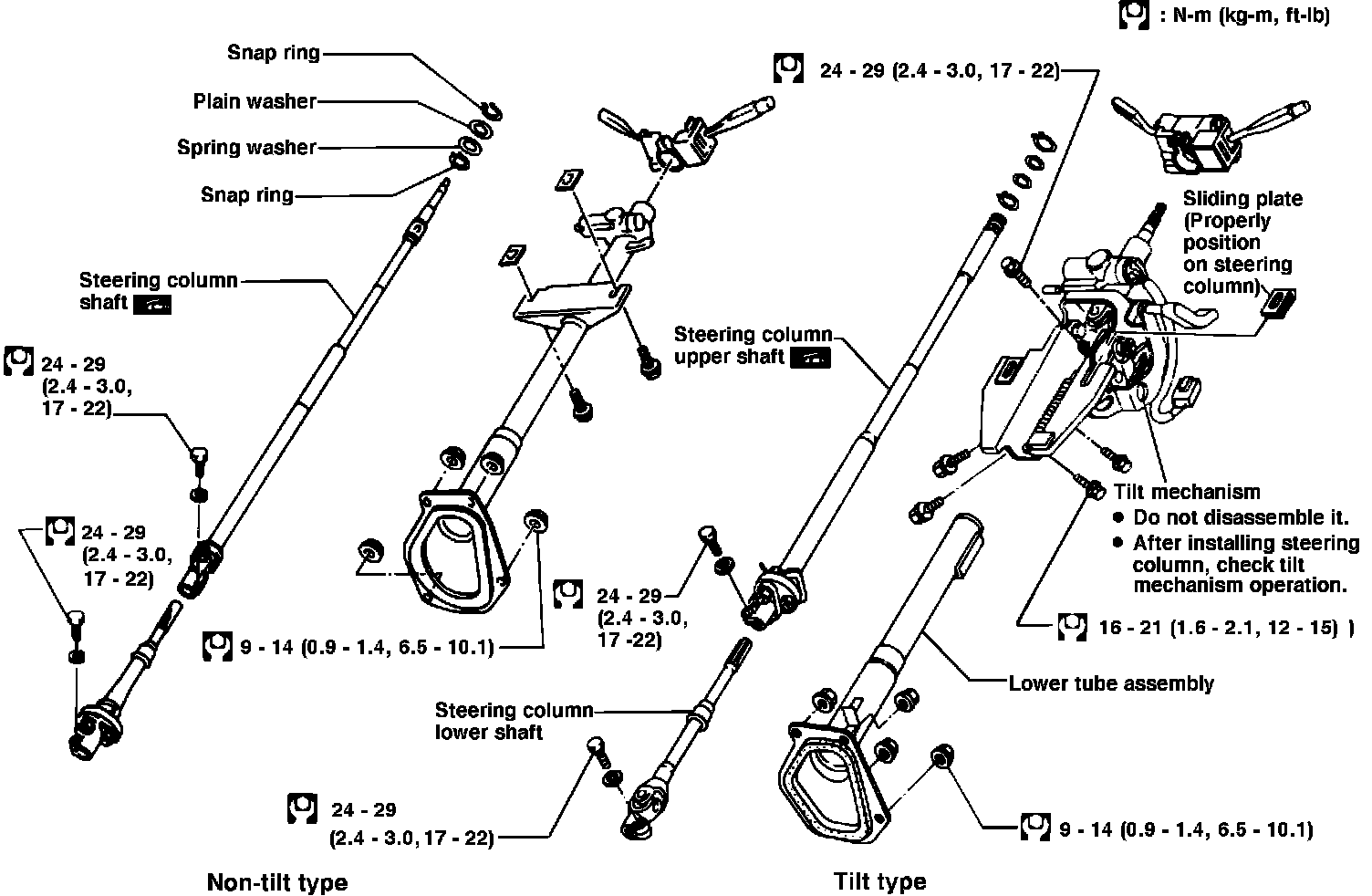

Fig. 8 Exploded view of steering column. Pathfinder & 1986-1/2 - 88 Pickup:
