Front Wiper and Washer Wiring Diagram
>>
Less Intermittent
Less Intermittent

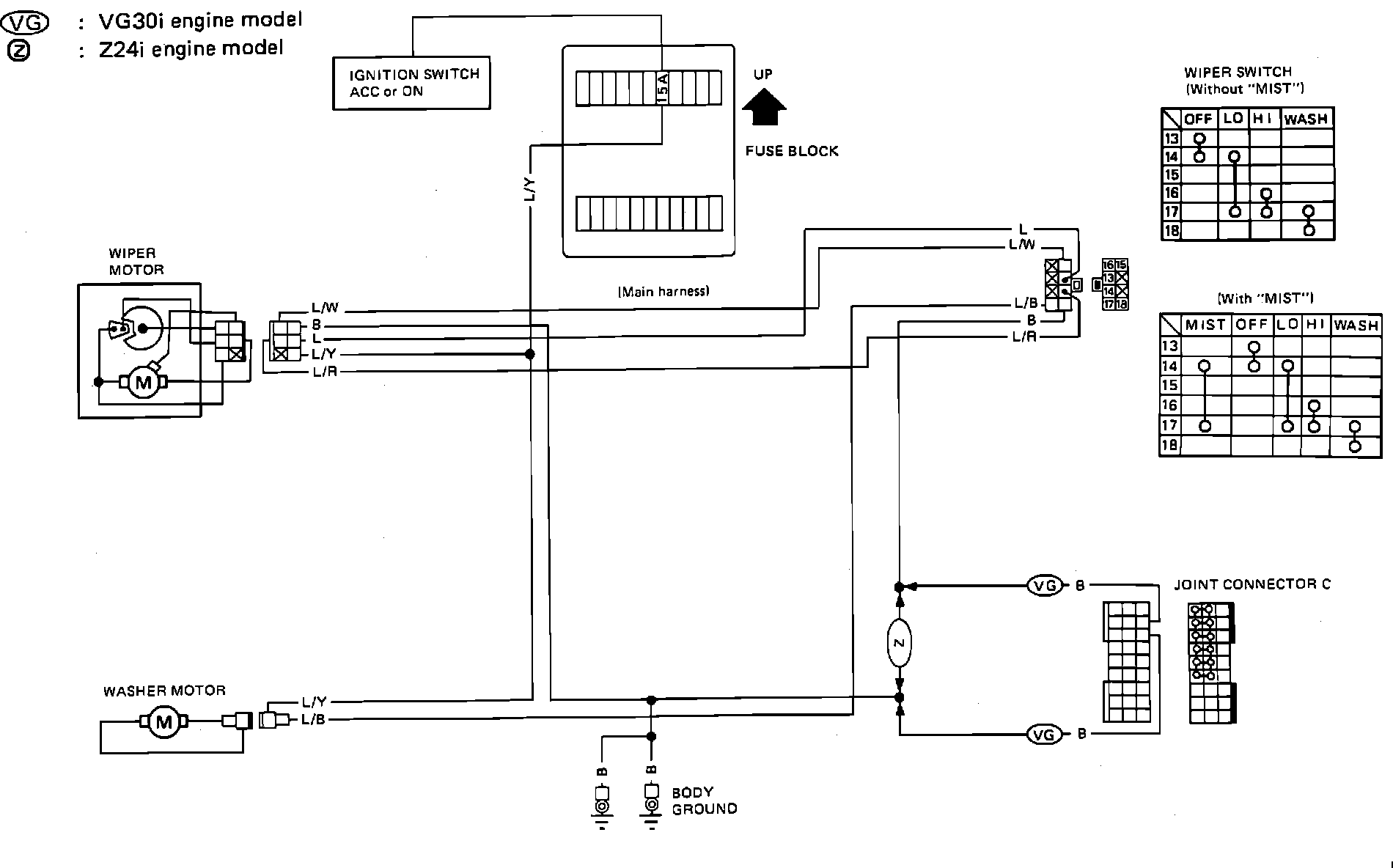

Fig. 45 Wiper & Washer Wiring Circuit. Less Intermittent:
