Home >> Nissan-Datsun >> 1988 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> 4 Speaker

4 Speaker

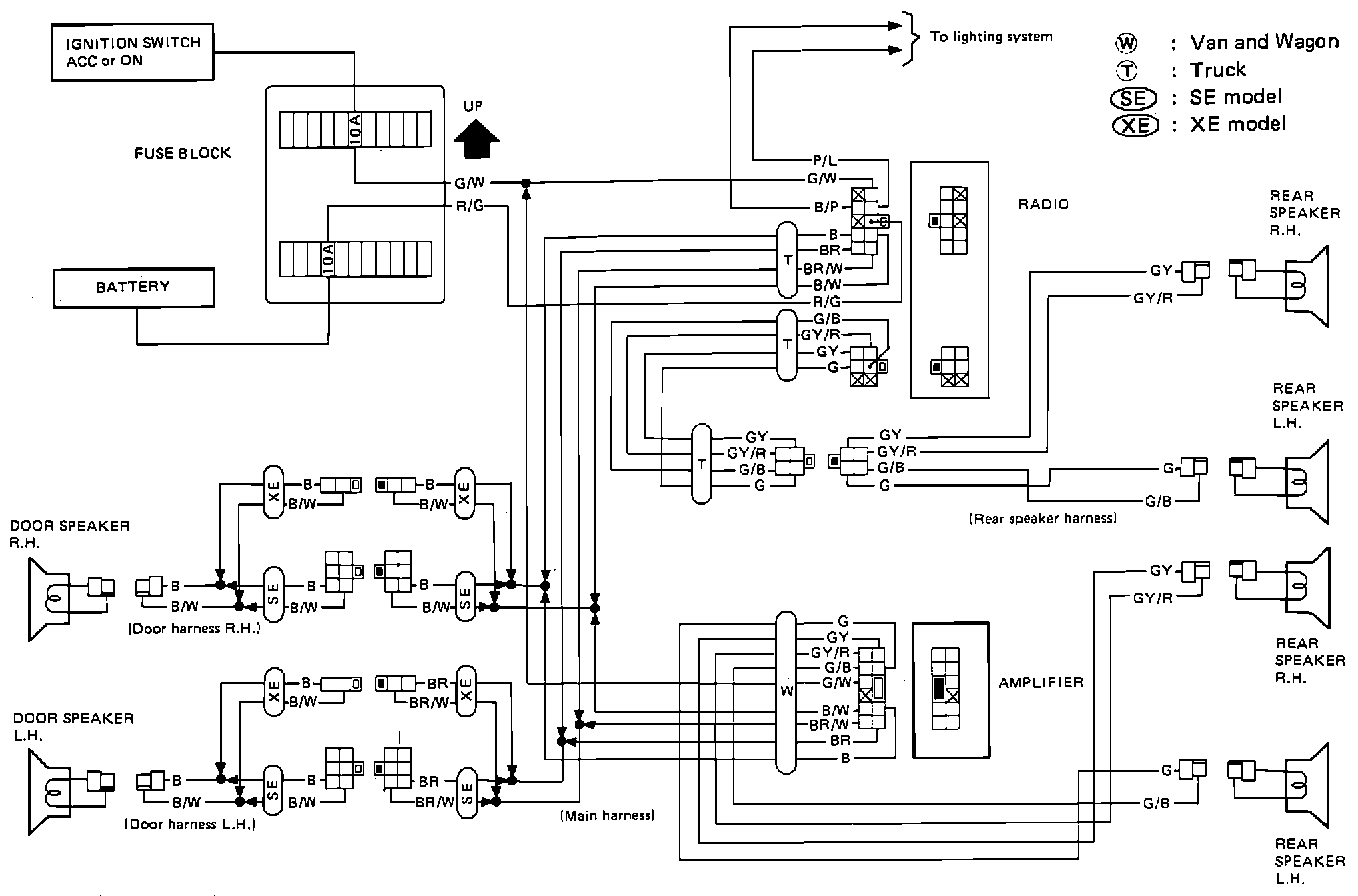

Fig. 5 Audio System Wiring Circuit. 4 Speaker:
