Drum Brake System: Application and ID

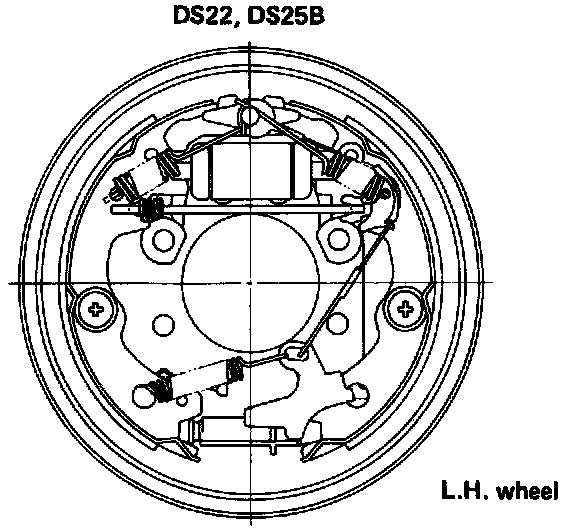

DS22, DS25B:

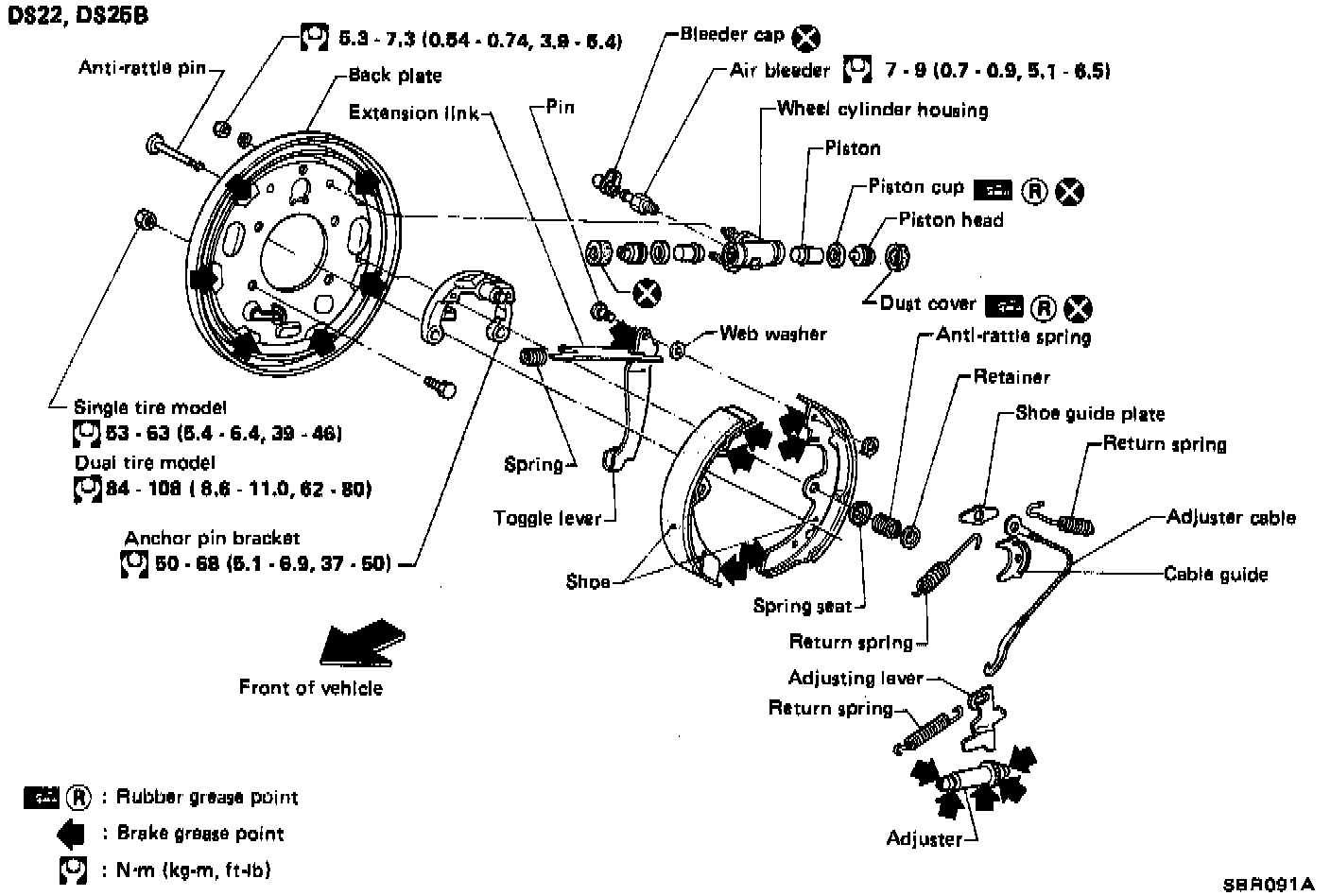

Exploded View:

DS22, DS25B

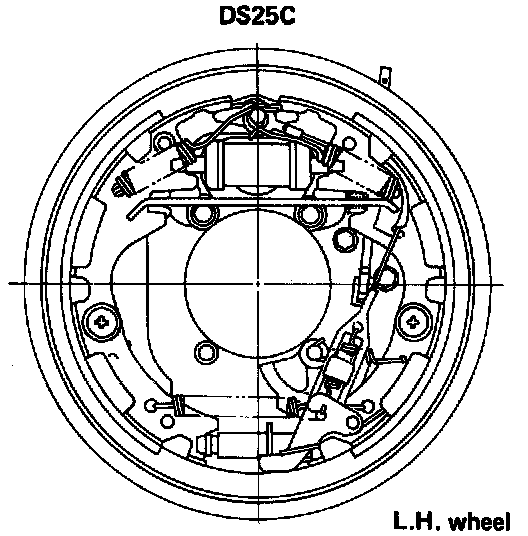

DS25C:

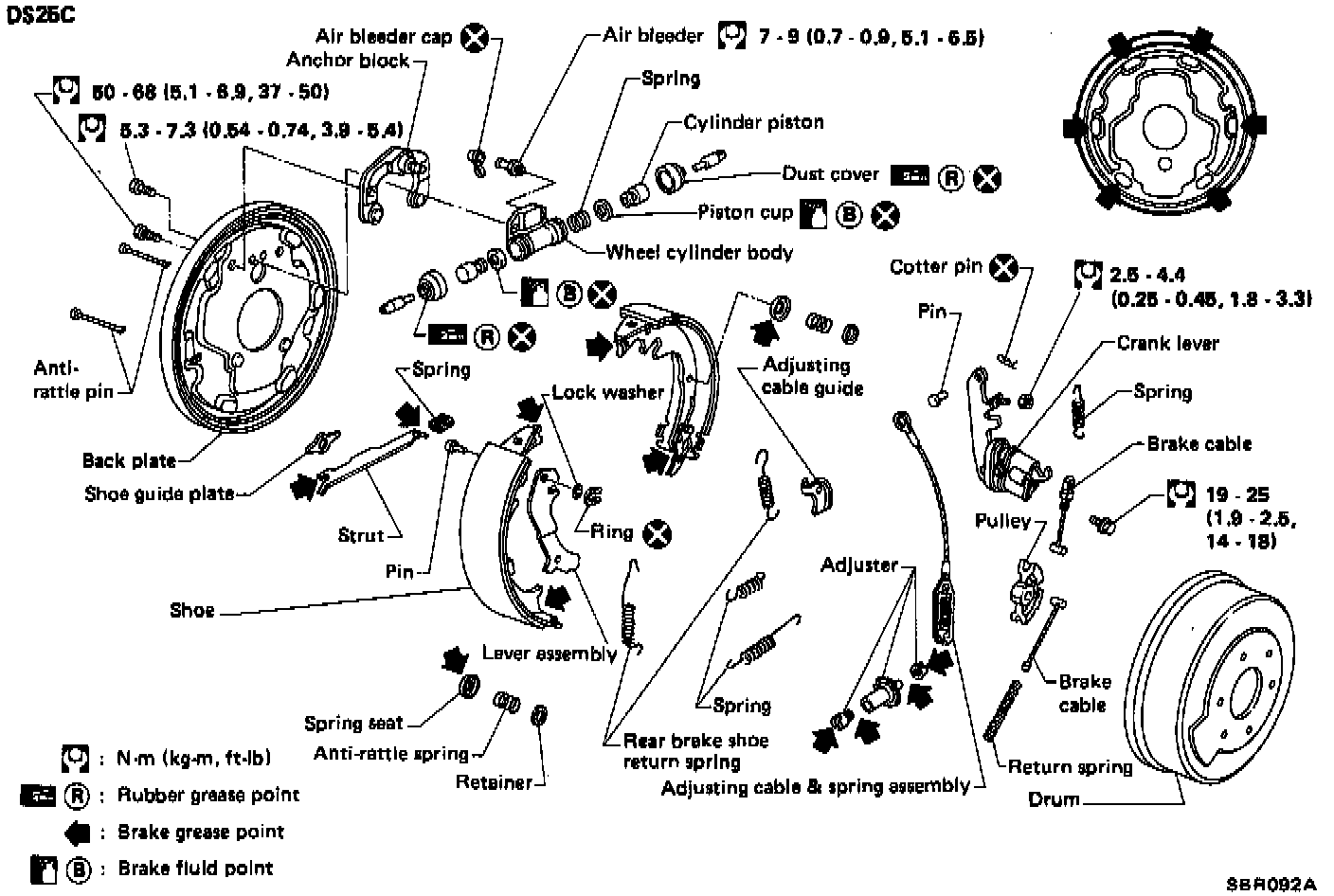

Exploded View:

DS25C

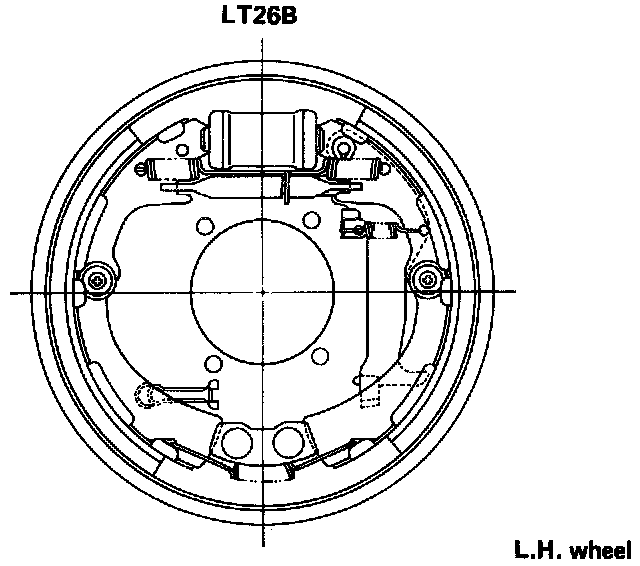

LT26B Assembled View:

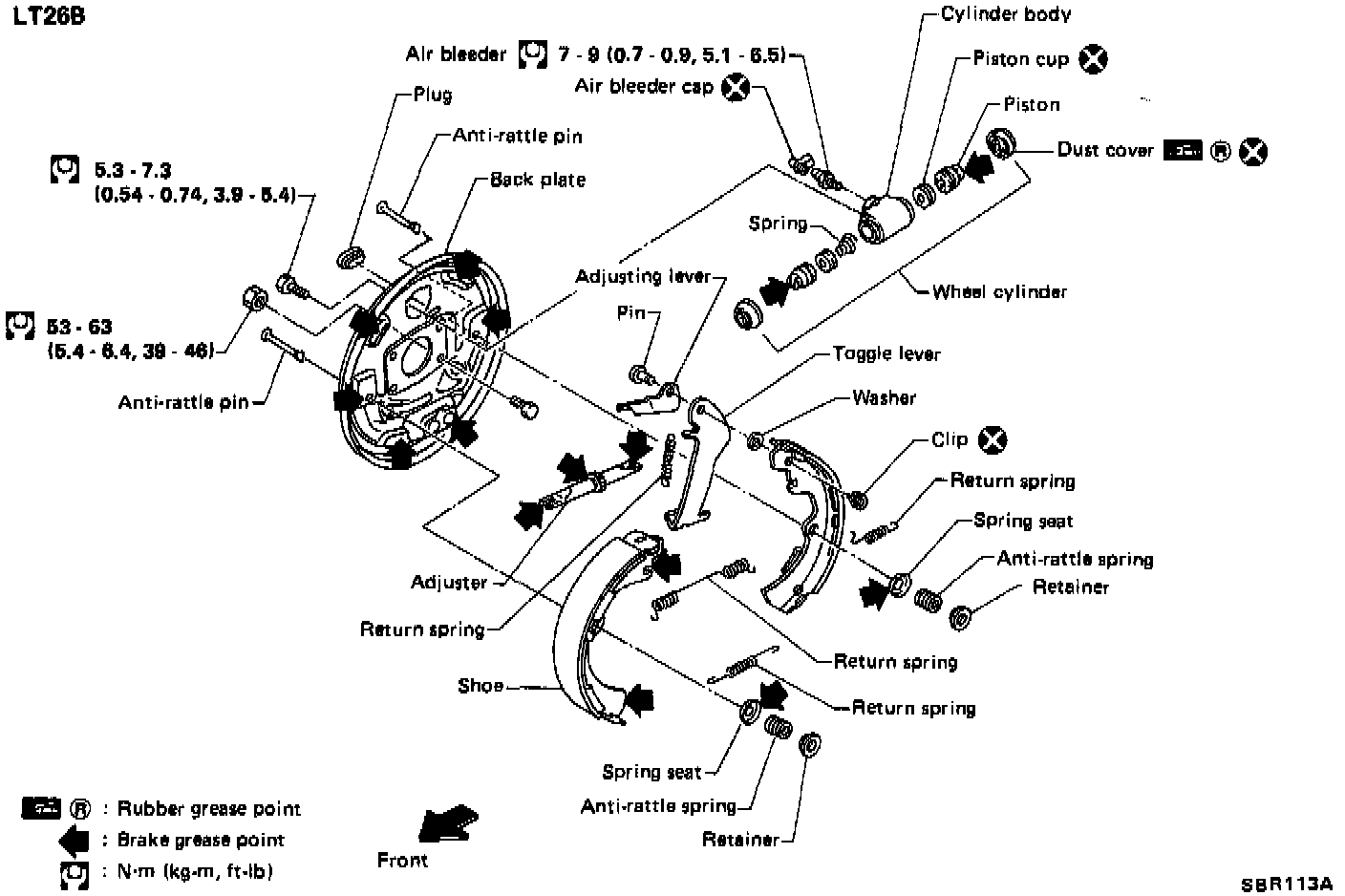

Exploded View:

LT26B

REAR BRAKE SYSTEM IDENTIFICATION
These are the standard and optional drum brake systems available for this vehicle. Use images shown above for reference.
