Removal

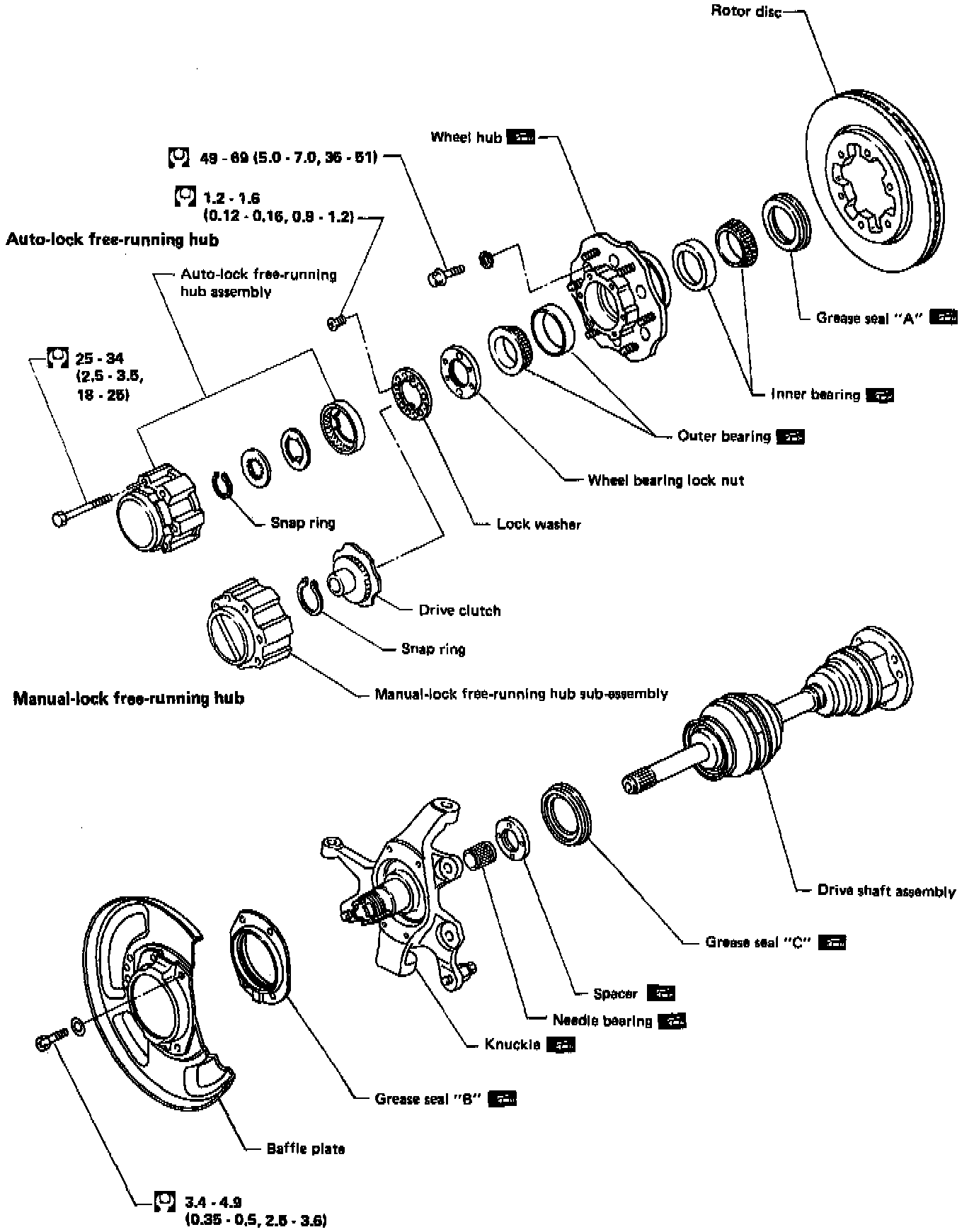

4WD Rotor And Hub Assembly:

1. Remove free-running hub assembly.

Caliper Retaining Bolts:

2. Remove brake caliper assembly.

NOTE: Brake hose does not need to be disconnected from brake caliper. Be careful not to depress brake pedal, or piston will pop out. Make sure brake hose is not twisted.

Lock Washer:

3. Remove lock washer.

Lock Nut:

4. Remove wheel bearing lock nut with suitable tool.

Hub And Brake Rotor Removal:

5. Remove wheel hub and wheel bearing.

6. Scribe matching marks between hub and rotor, then separate rotor from hub.
