Home >> Nissan-Datsun >> 1988 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Brakes and Traction Control >> Application and ID >> Disc Brake System ID >> Front

Front

Exploded View:

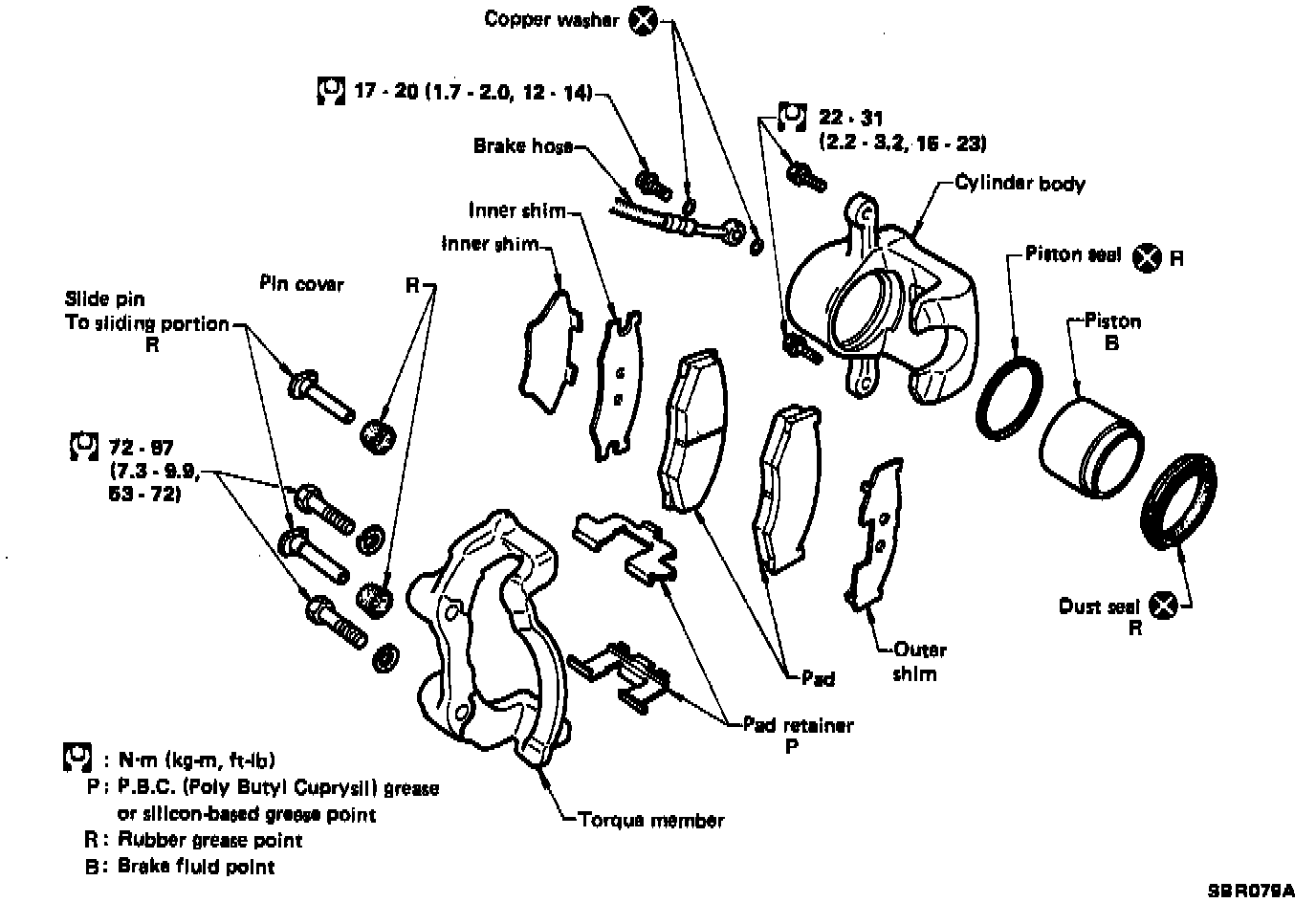

SINGLE PISTON CALIPER - CL28VA

Exploded View:

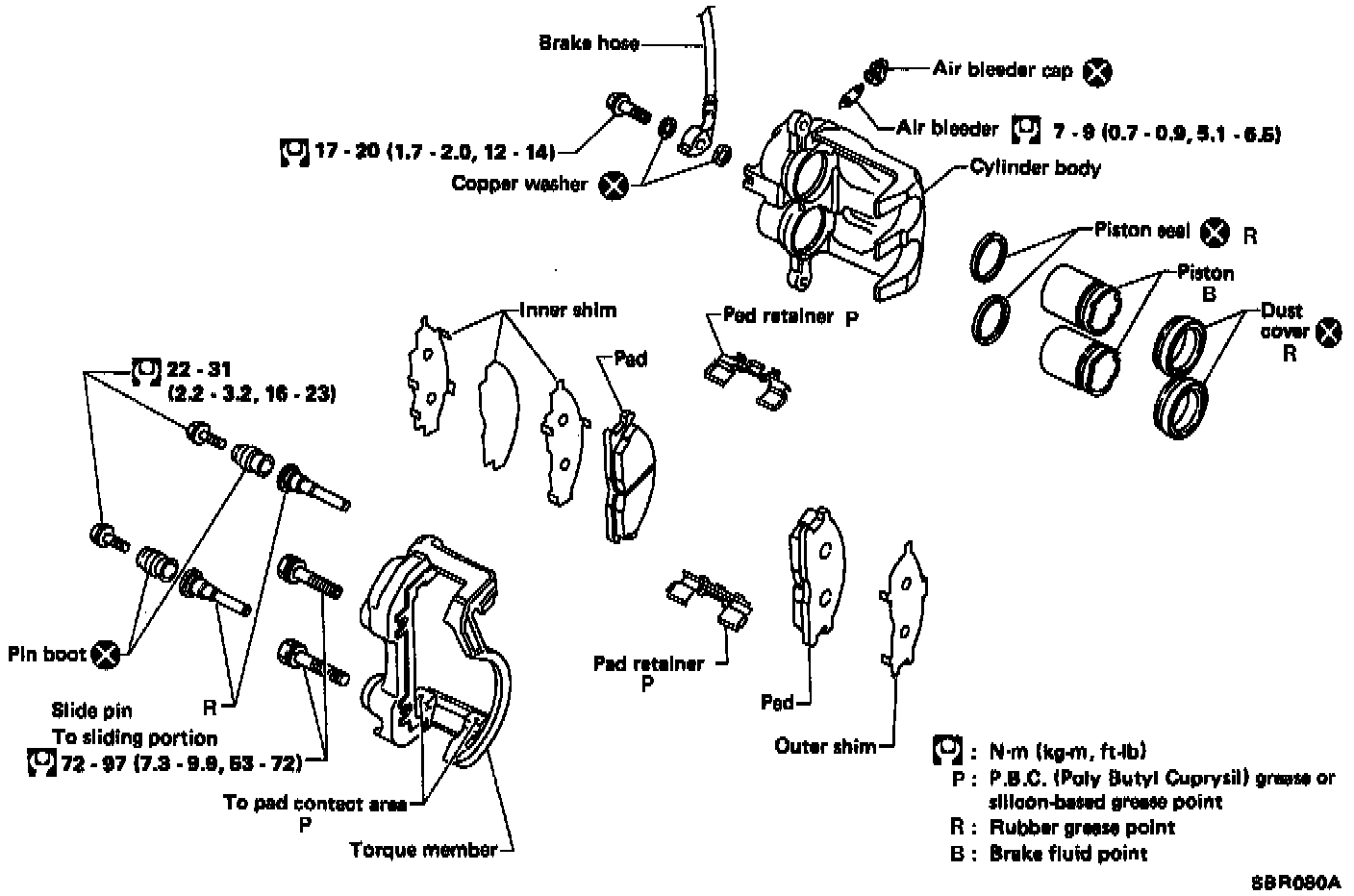

DUAL PISTON CALIPER - CL28VD
There are two basic calipers used for front disc brake applications. Refer to above images.
