DTC 51

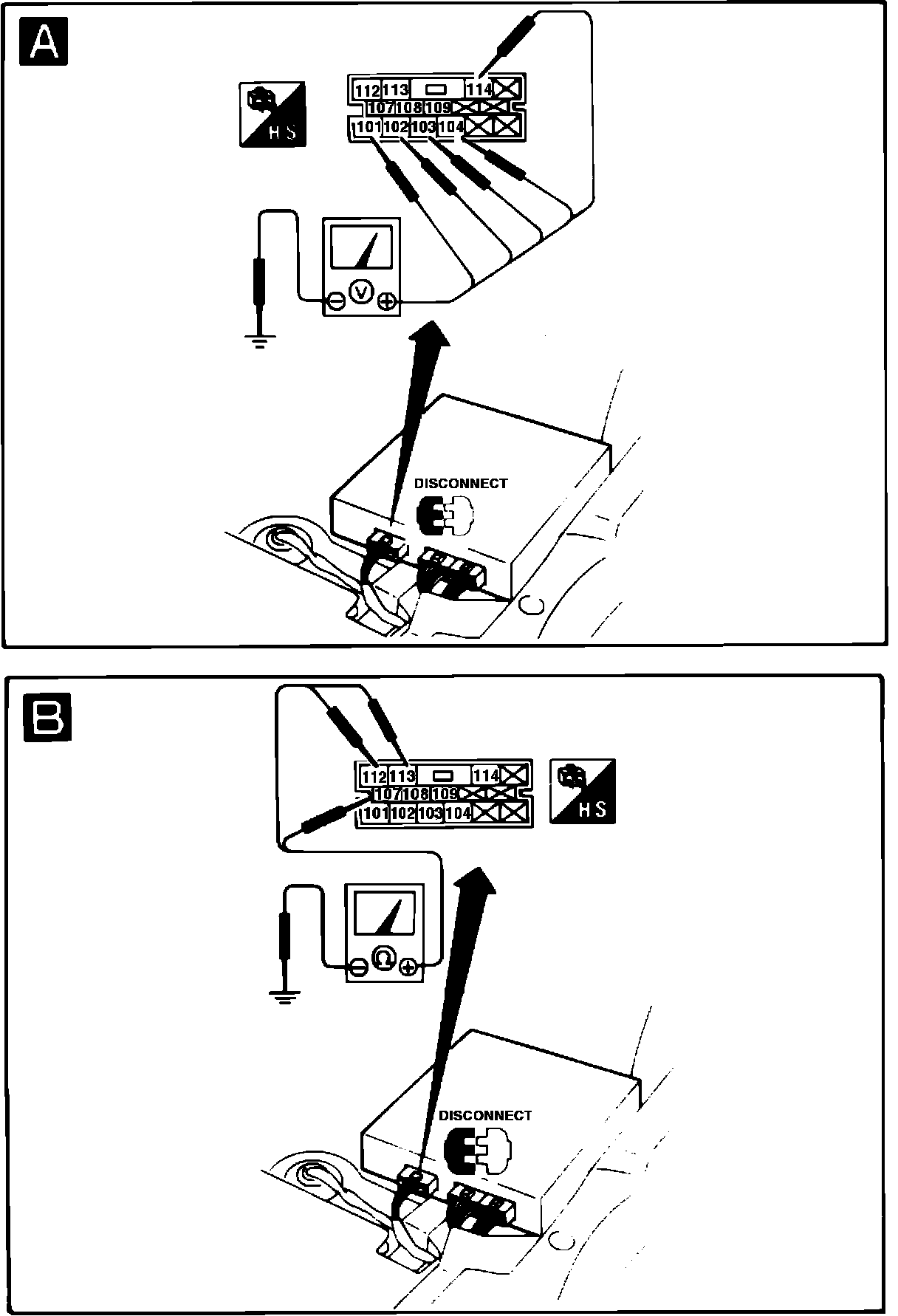

Fig. 231a Injector diagnosis chart. (Code 51):

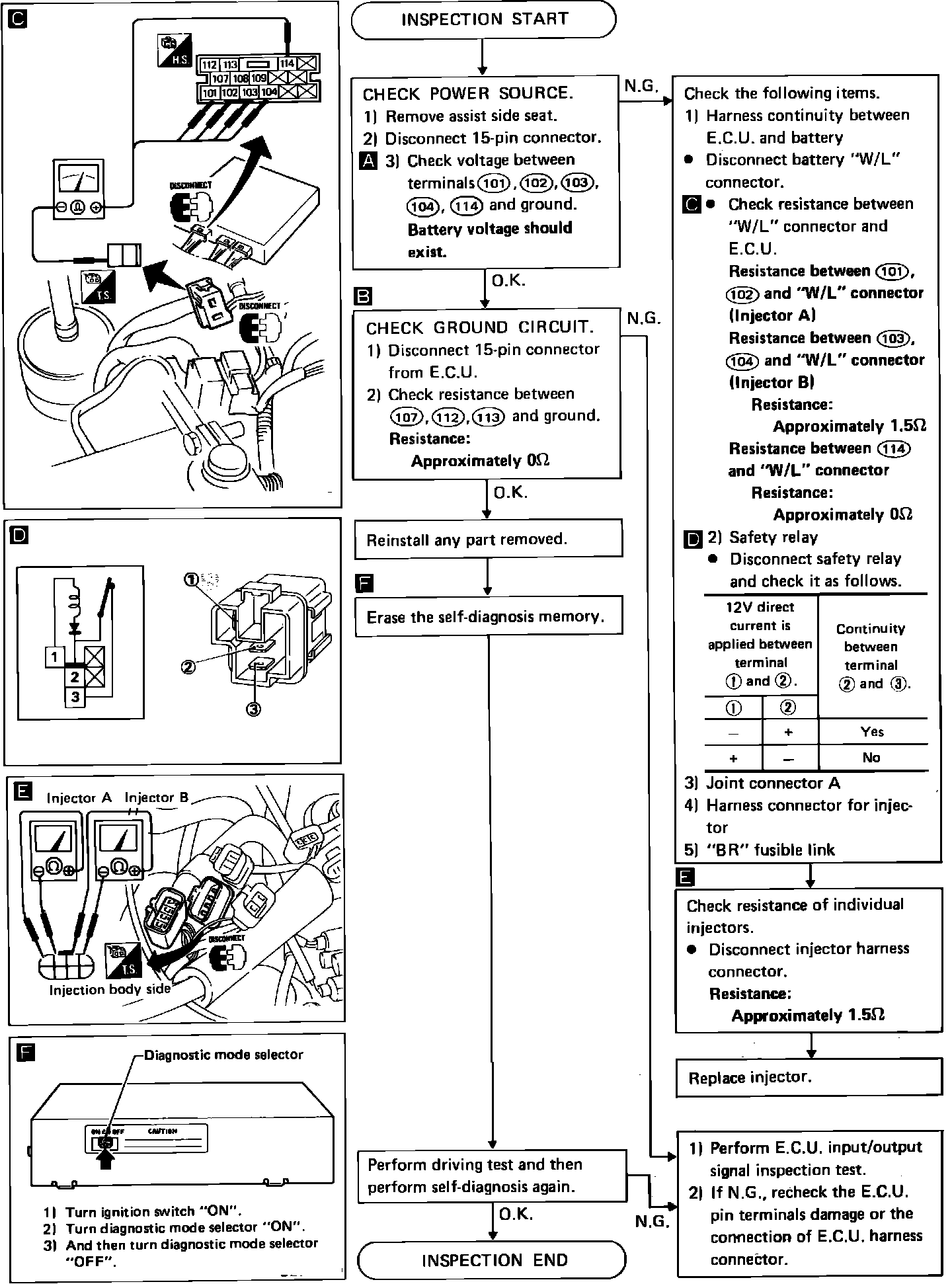

Fig. 231b Injector diagnosis chart. (Code 51):
