Home >> Nissan-Datsun >> 1988 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 43

DTC 43

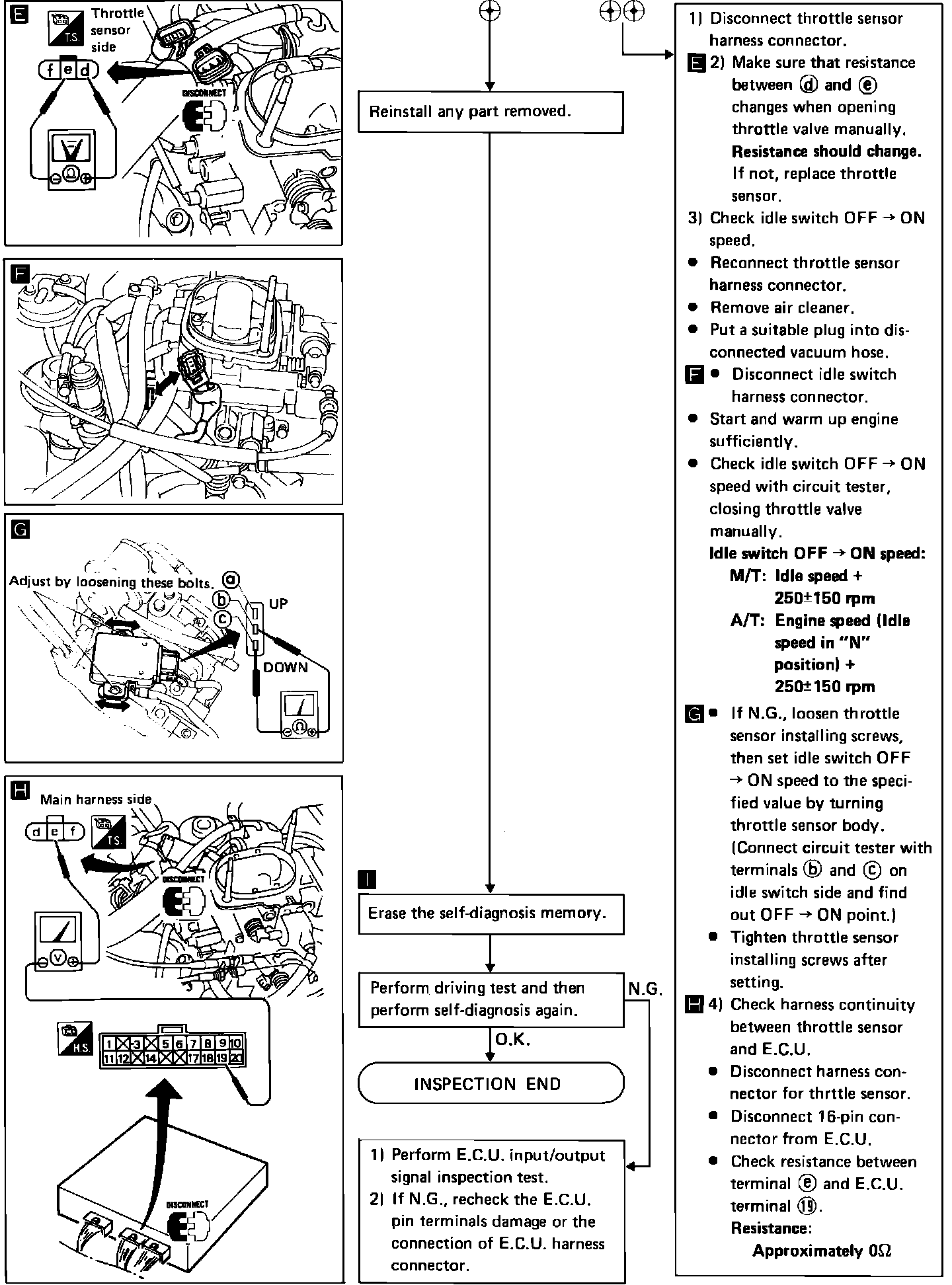

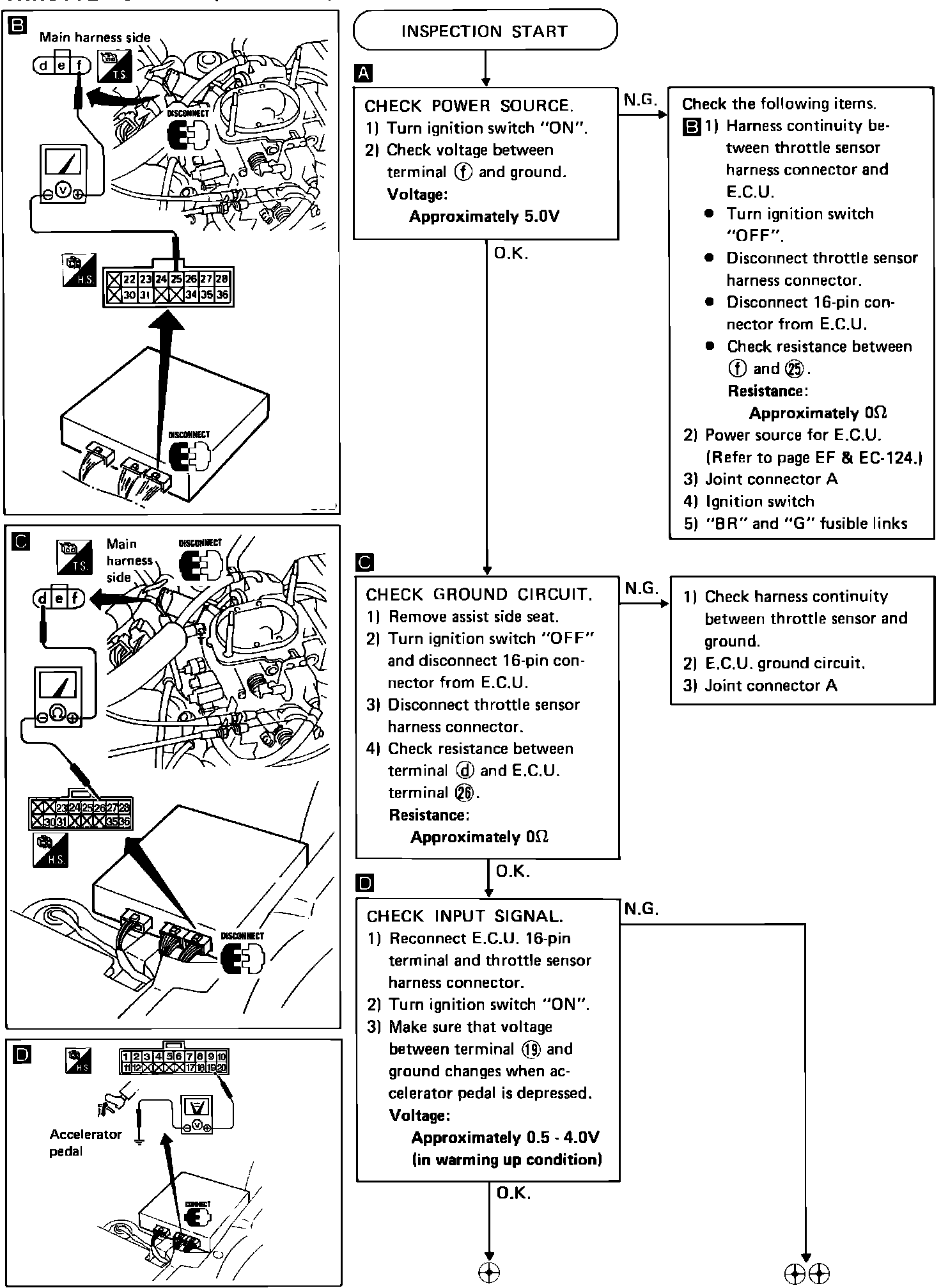

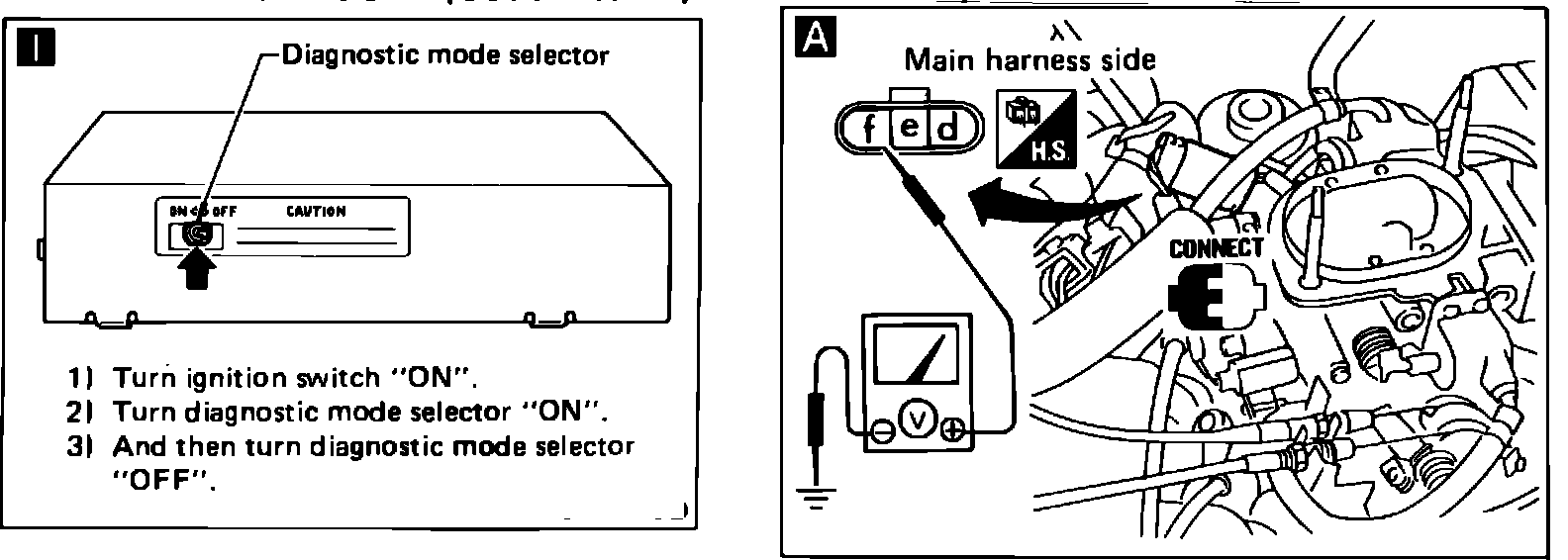

Fig. 229a Throttle sensor diagnosis chart. (Code 43):



Fig. 229b Throttle sensor diagnosis chart. (Code 43):



Fig. 229c Throttle sensor diagnosis chart. (Code 43):
