DTC 33

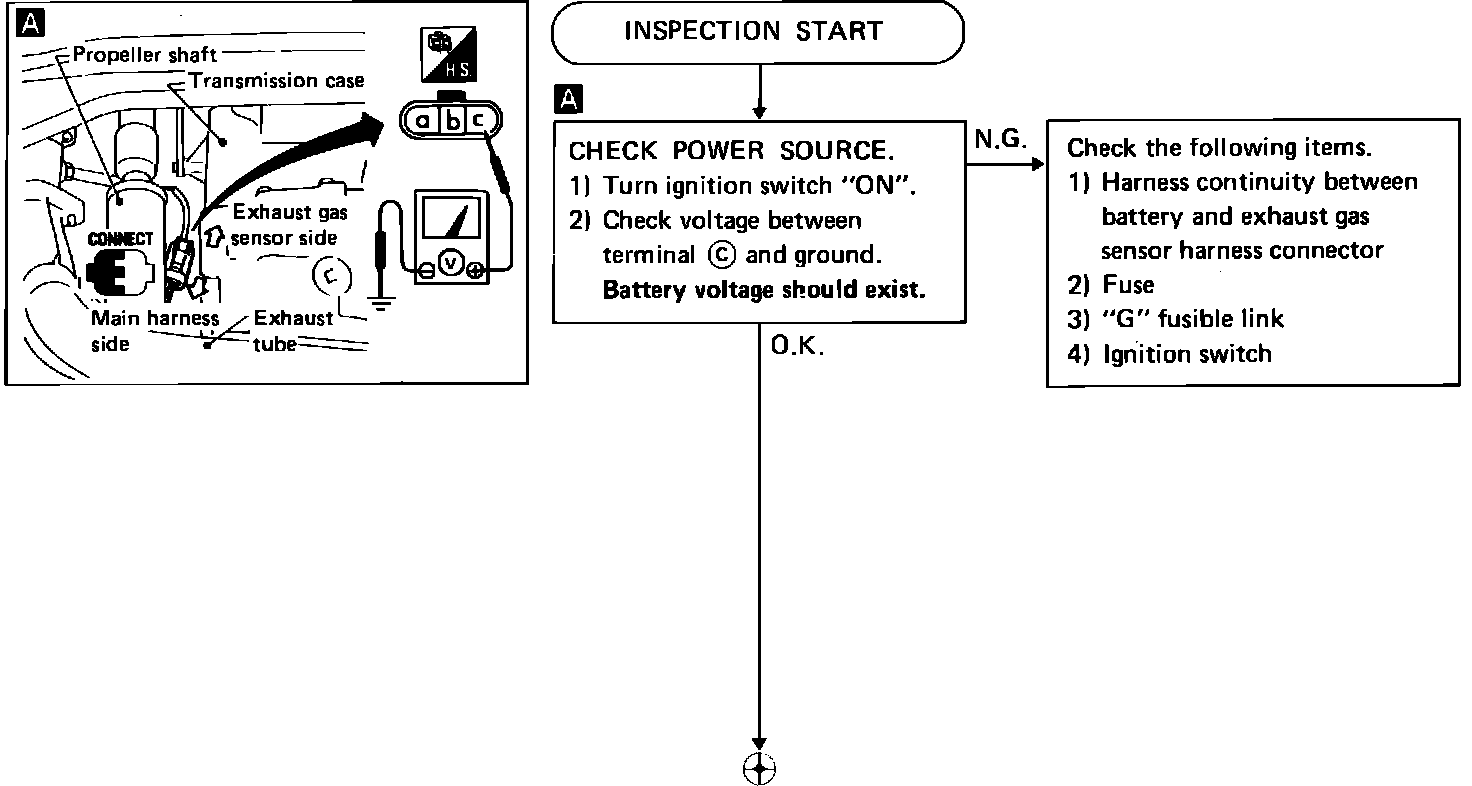

Fig. 225a Exhaust gas sensor diagnosis chart. (Code 33):

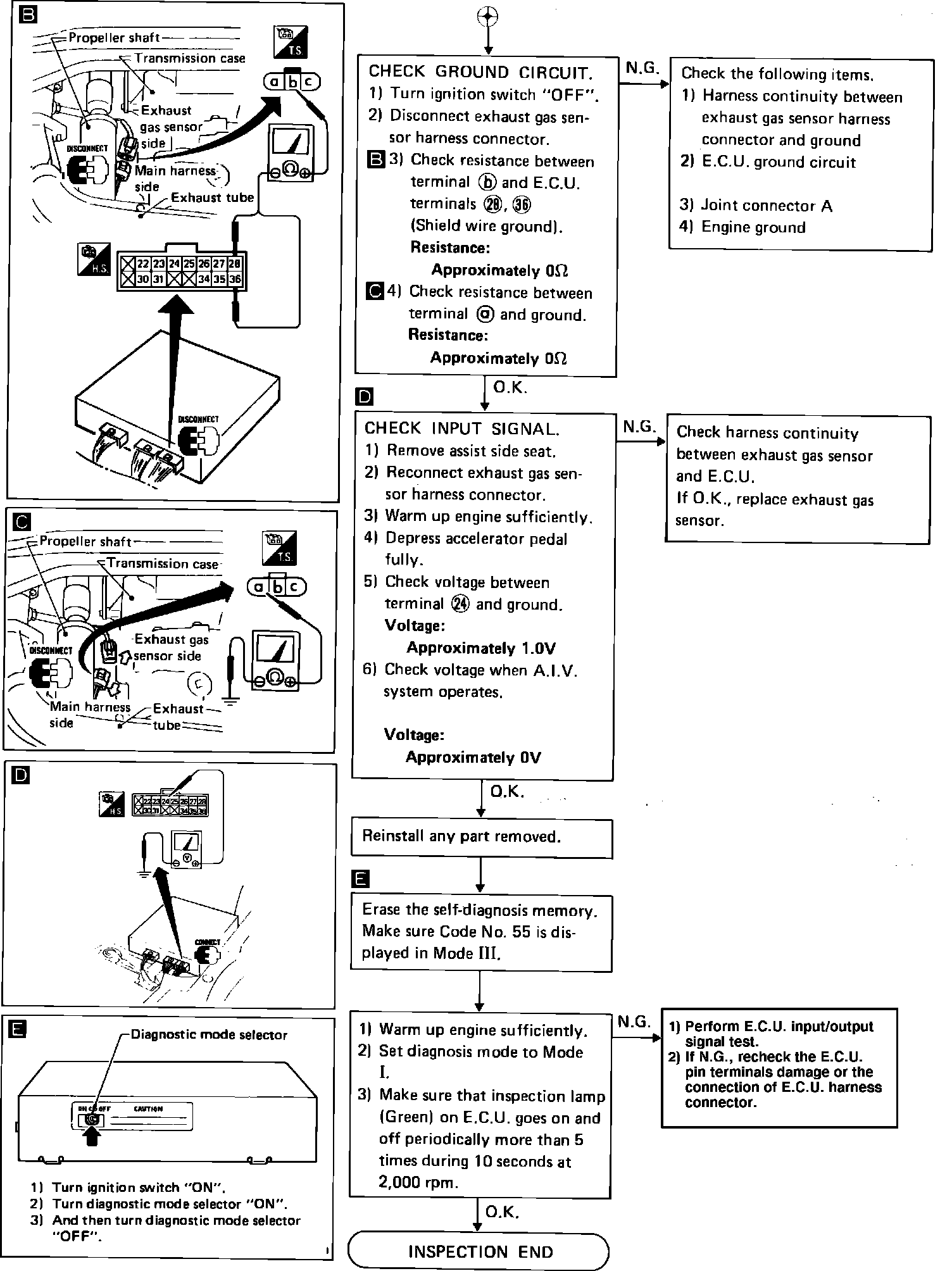

Fig. 225b Exhaust gas sensor diagnosis chart. (Code 33):
