DTC 32

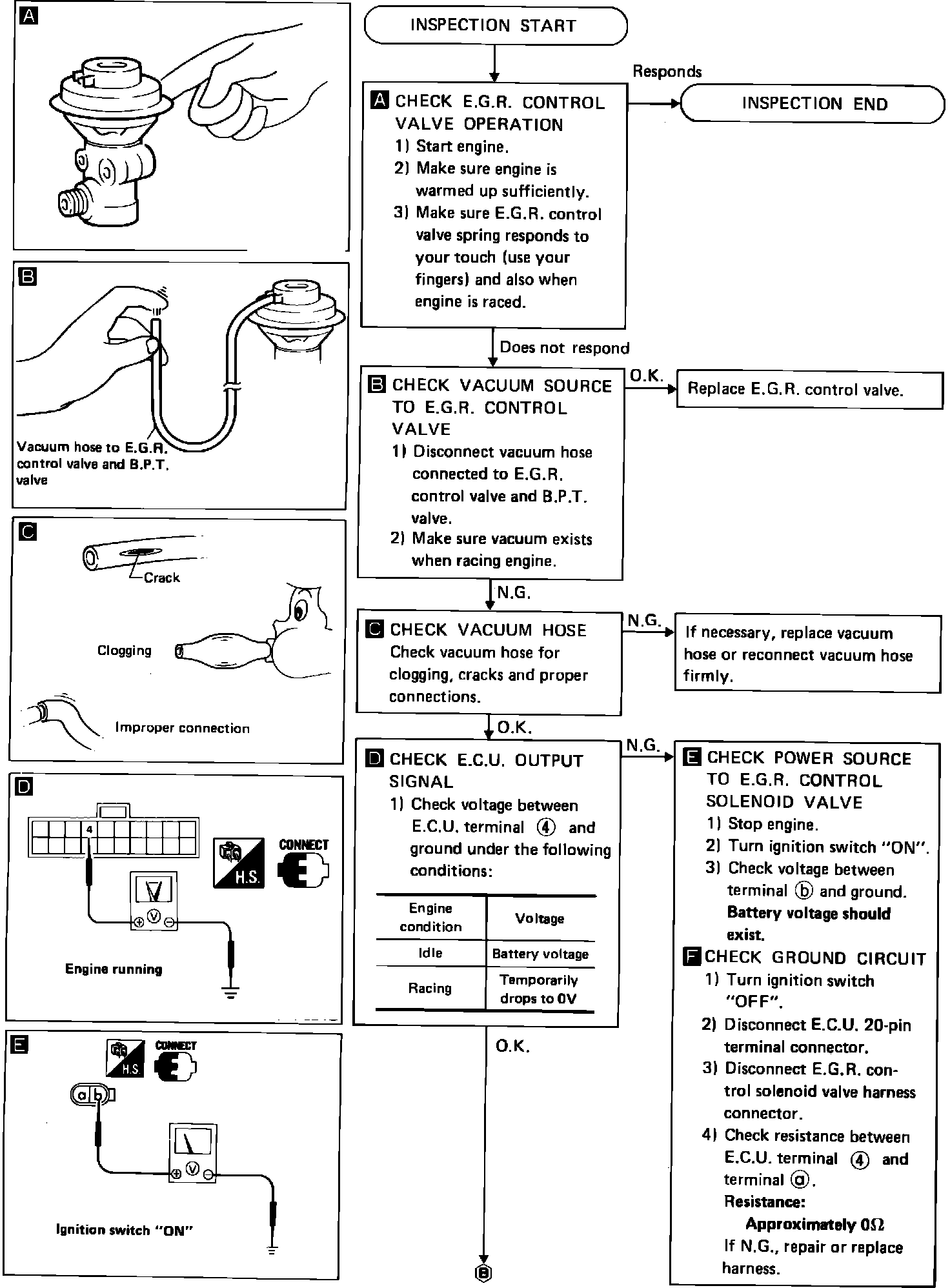

Fig. 224a EGR function diagnosis chart. (Code 32):

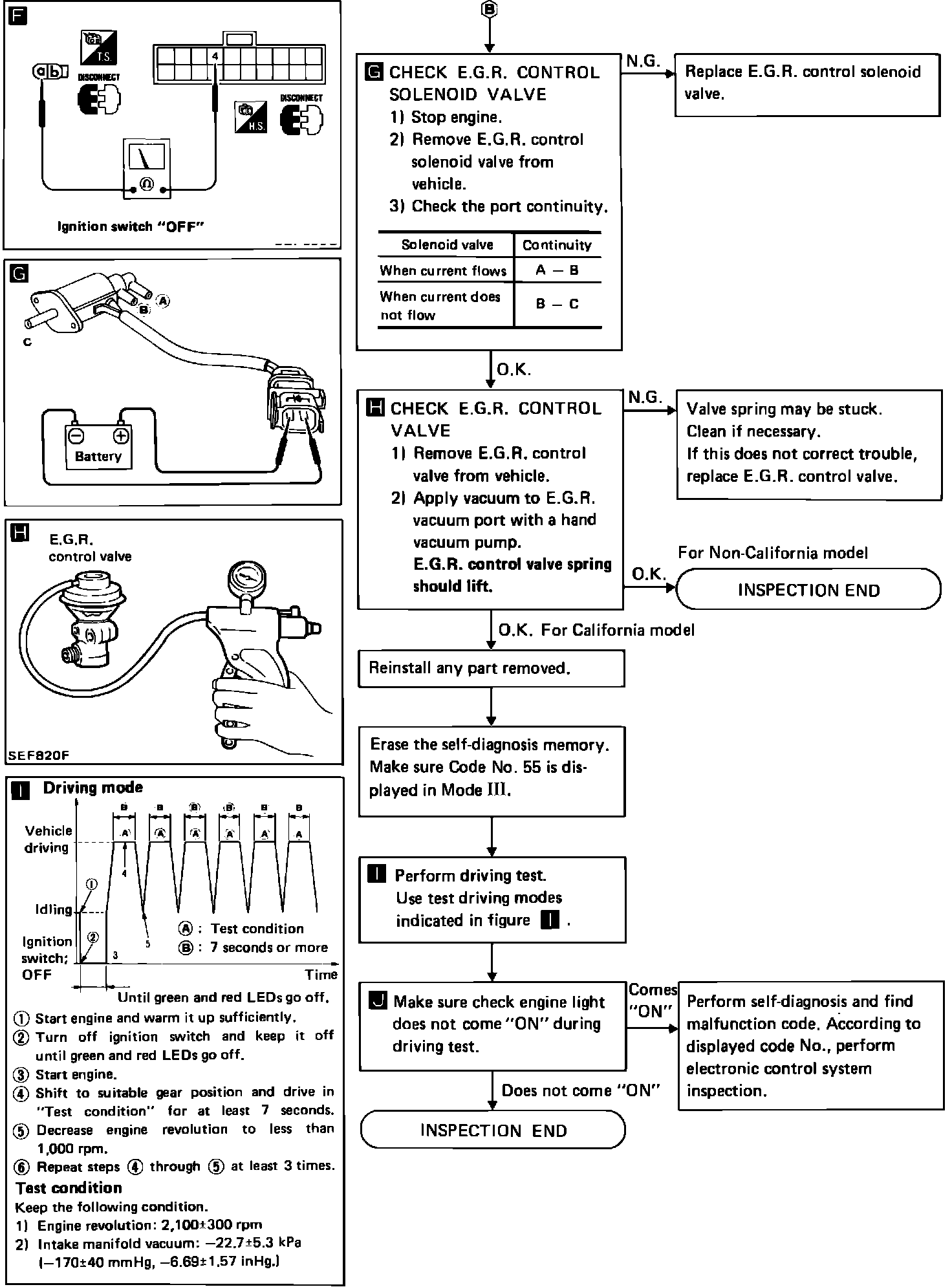

Fig. 224b EGR function diagnosis chart. (Code 32):
