Home >> Nissan-Datsun >> 1988 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 13

DTC 13

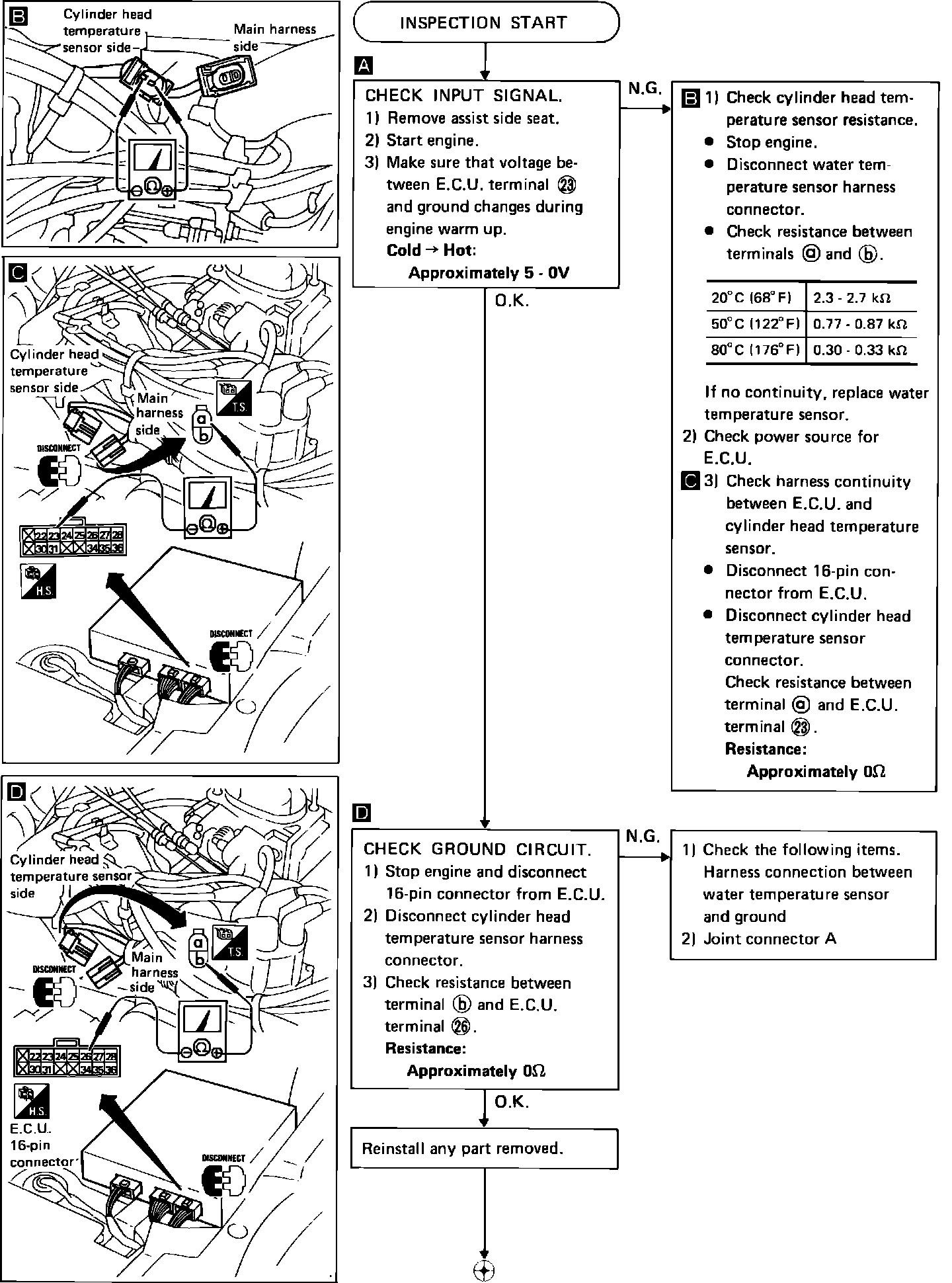

Fig. 221a Cylinder head temperature sensor diagnosis chart. (Code 13):

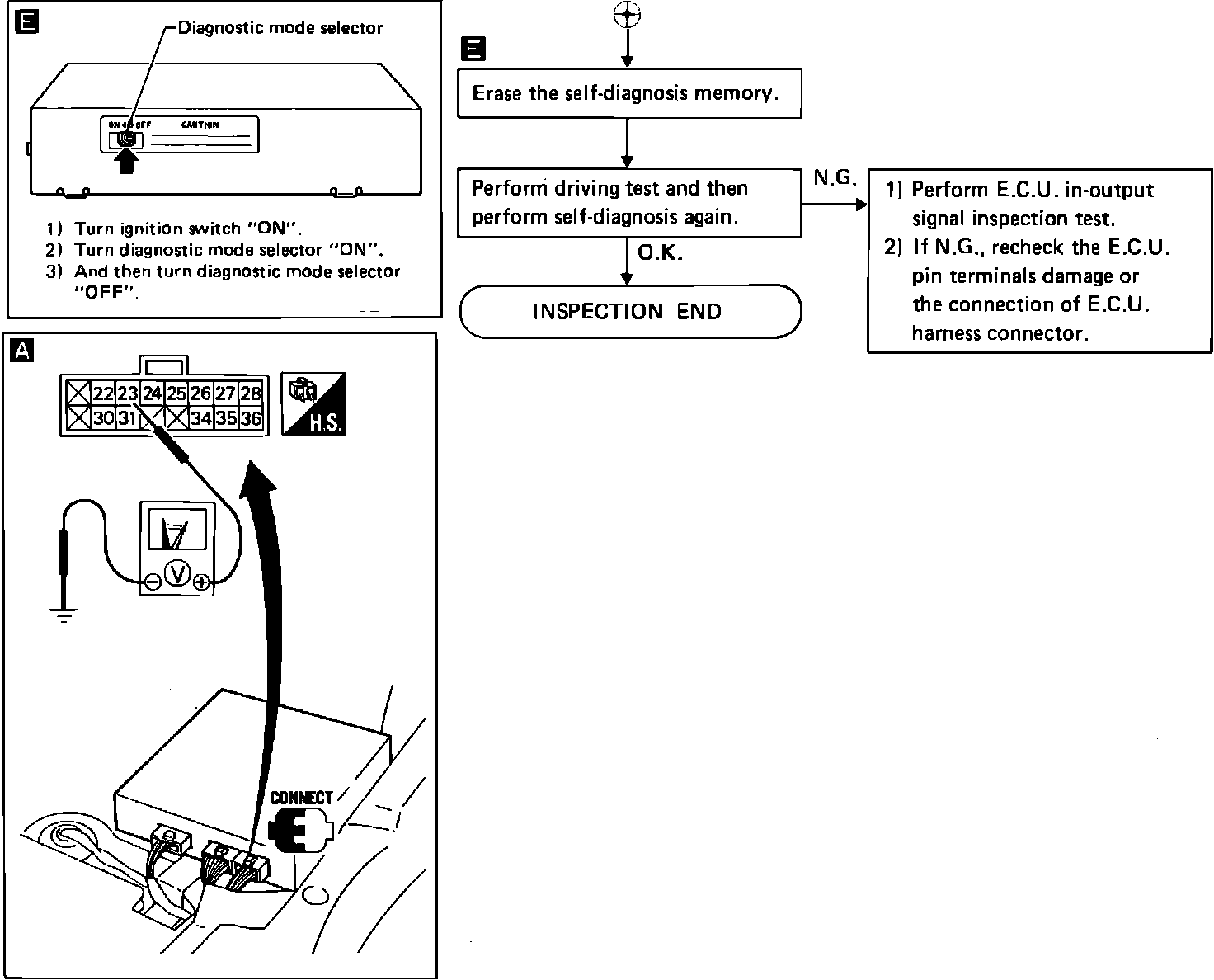

Fig. 221b Cylinder head temperature sensor diagnosis chart. (Code 13):
