Nissan-Datsun
>>
1988
>>
D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 12
DTC 12

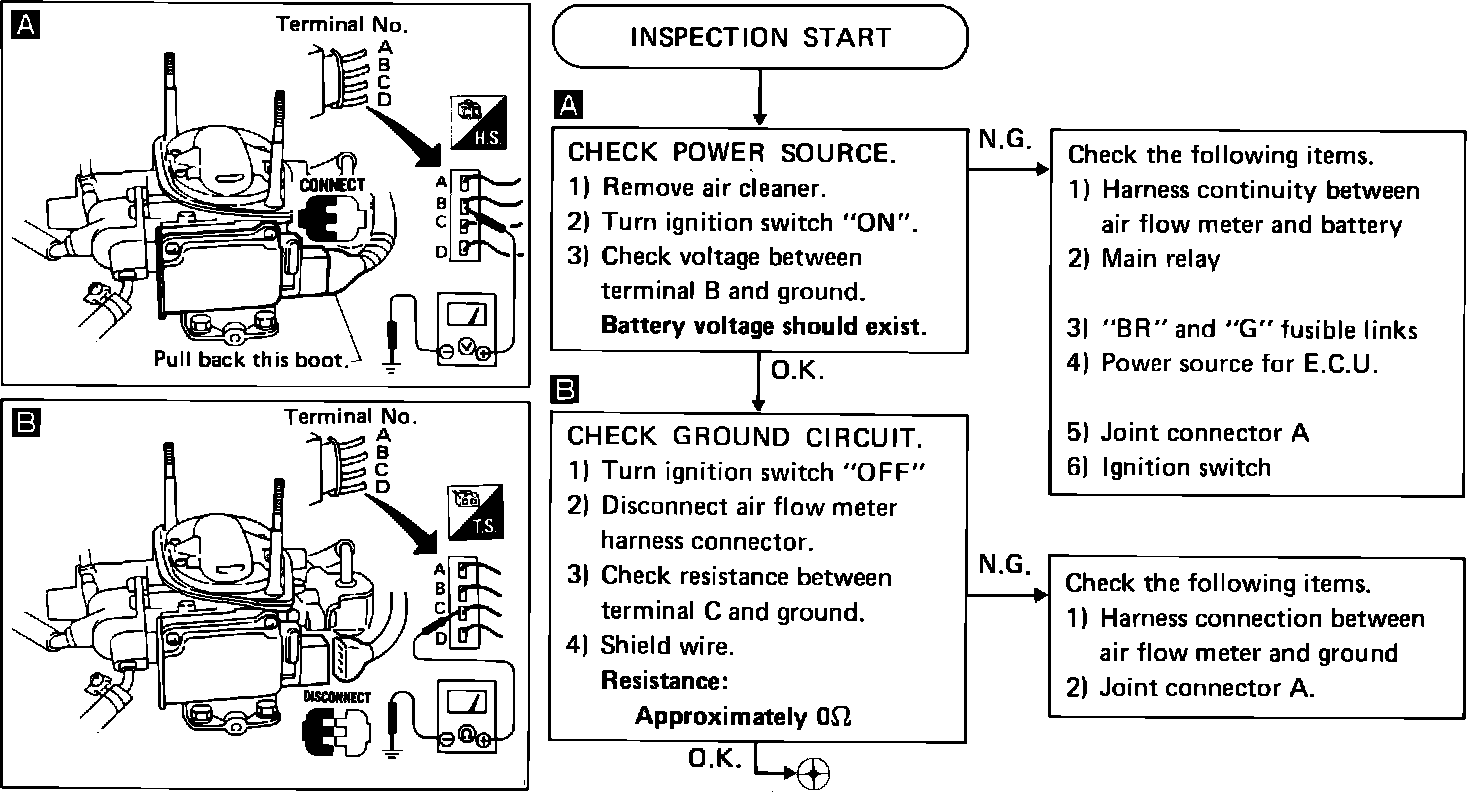

Fig. 220a Air flow meter diagnosis chart. (Code 12):

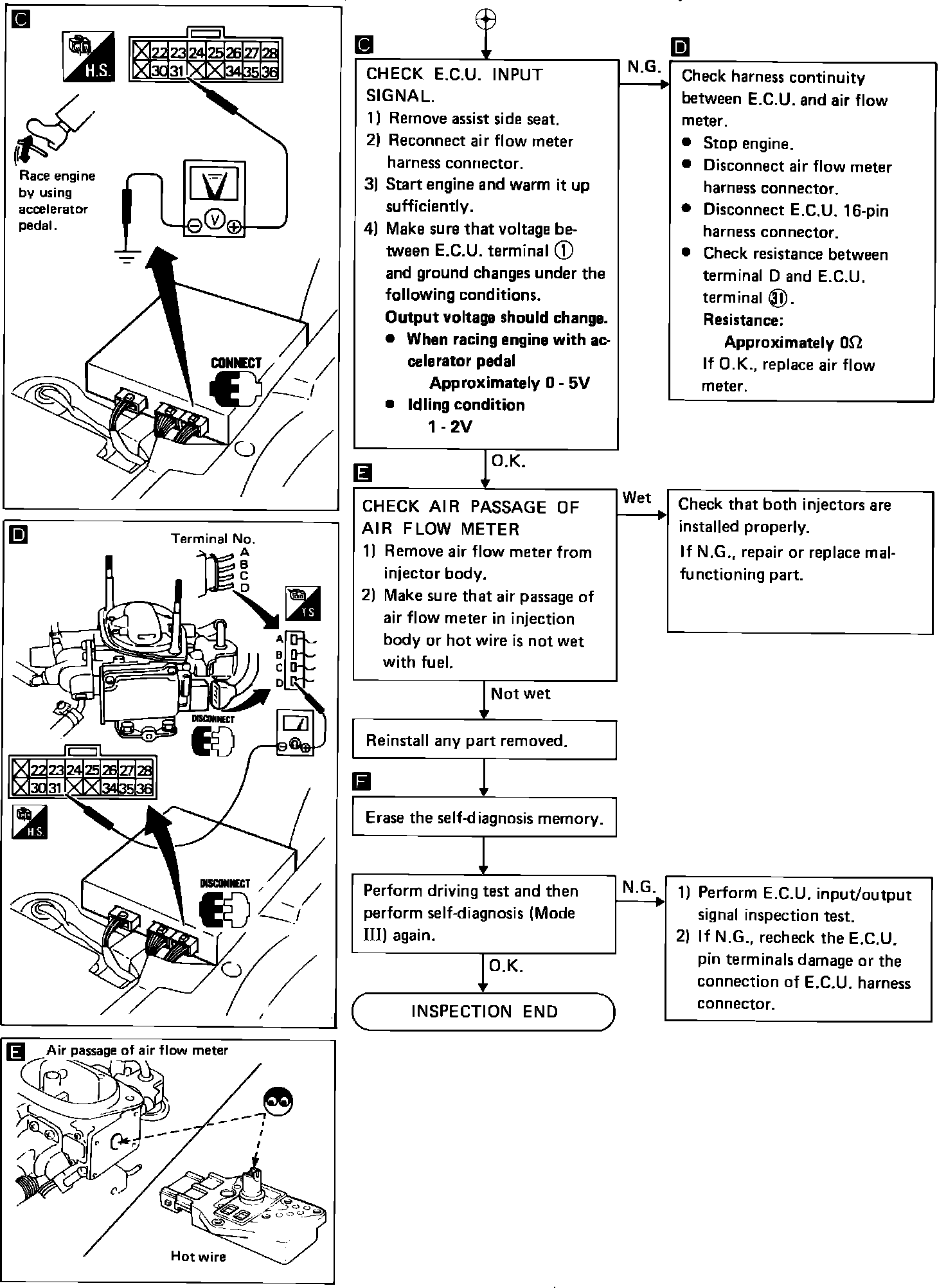

Fig. 220c Air flow meter diagnosis chart. (Code 12):
