A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 11
DTC 11

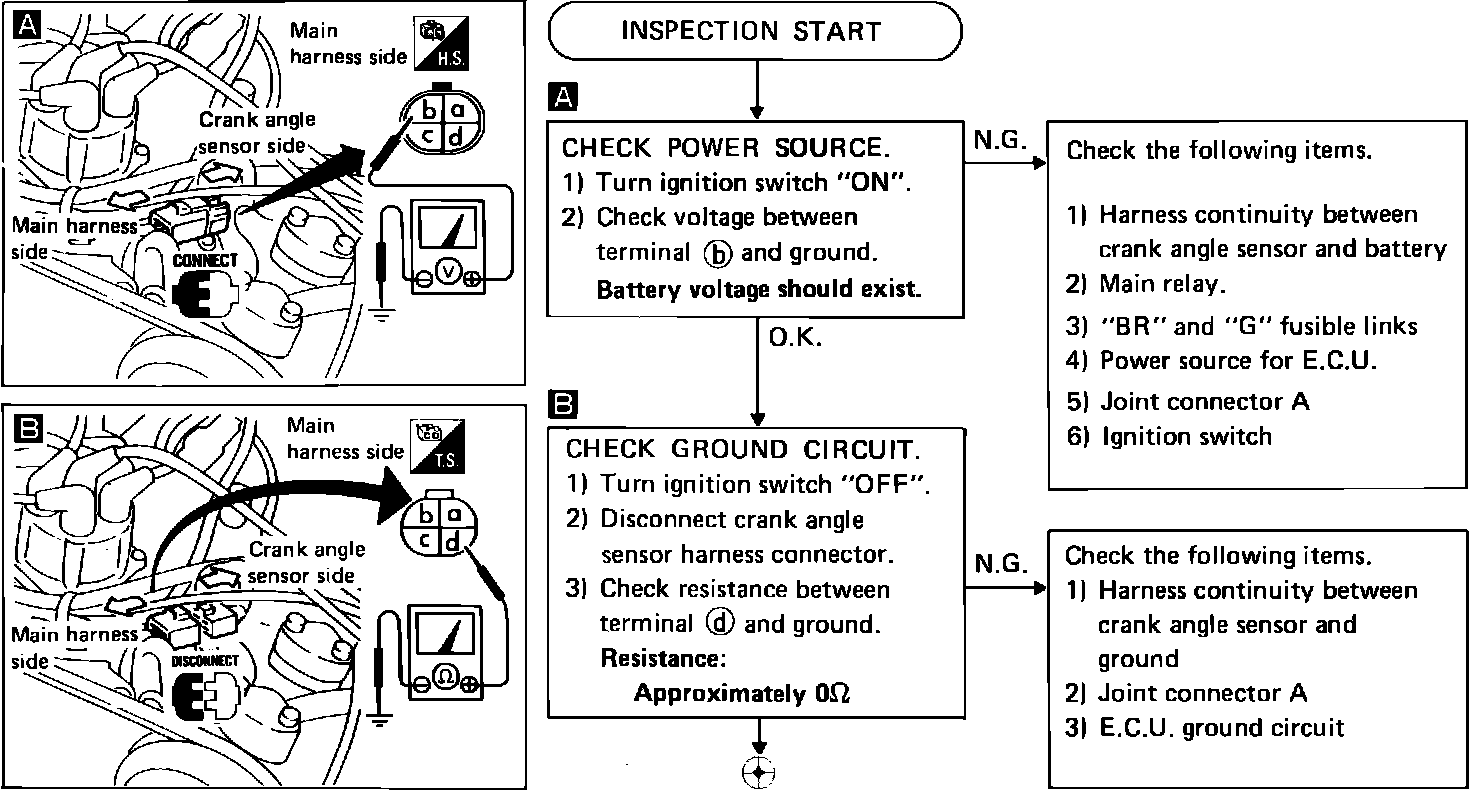

Fig. 219a Crank angle sensor diagnosis chart. (Code 11):

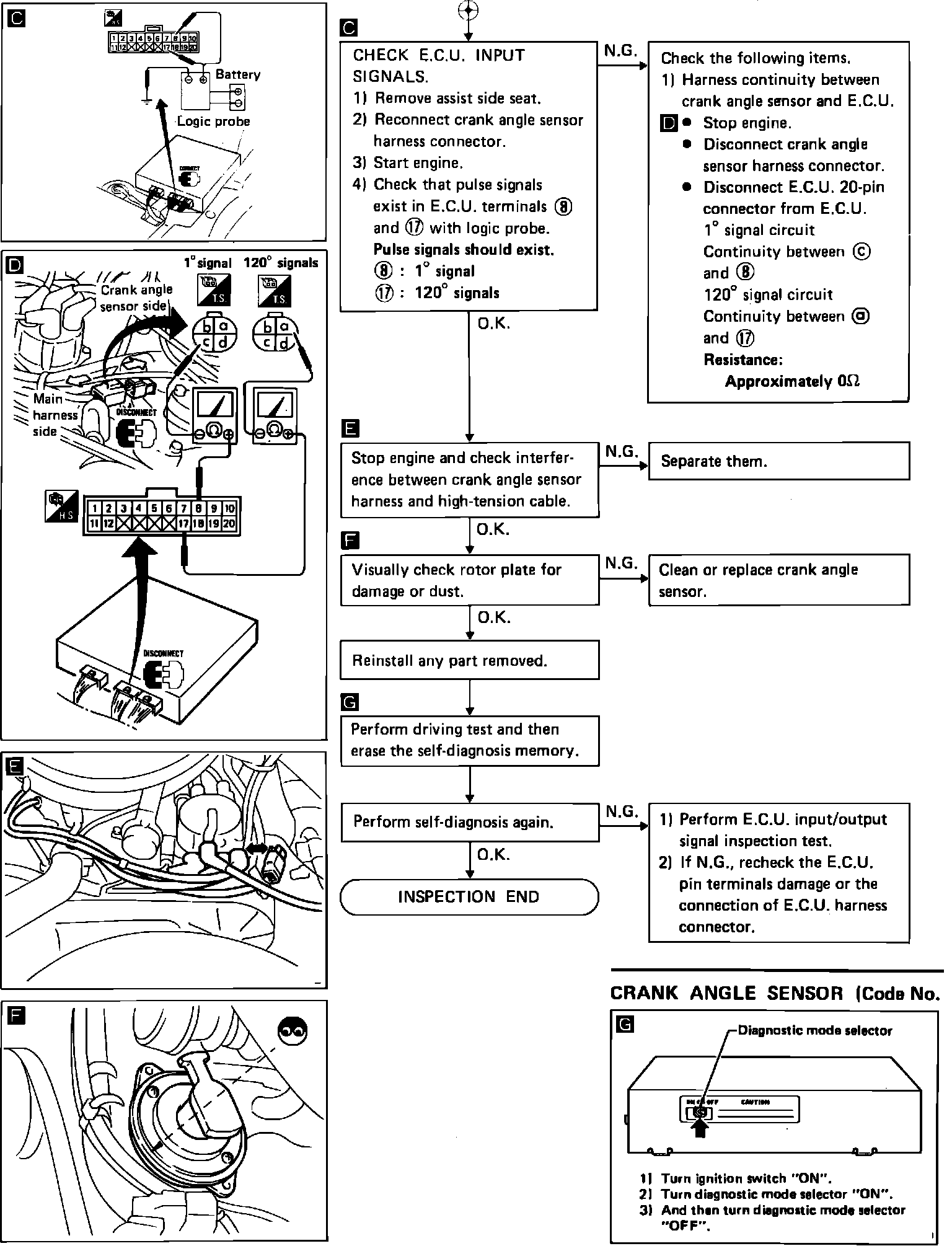

Fig. 219b Crank angle sensor diagnosis chart. (Code 11):
