Timing Belt: Installation
WARNING: This page is about a different car, the 1988 Nissan 300ZX. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure that piston No. 1 is at TDC of compression stroke. Remove valve covers and loosen all rocker shaft bolts. DO NOT bend timing belt. Install tensioner and return spring.
- Turn tensioner clockwise and temporarily tighten lock nut. Install timing belt. Align White lines on timing belt with punch mark on camshaft pulleys and crankshaft pulley. Arrow on timing belt must be pointing toward front belt covers.

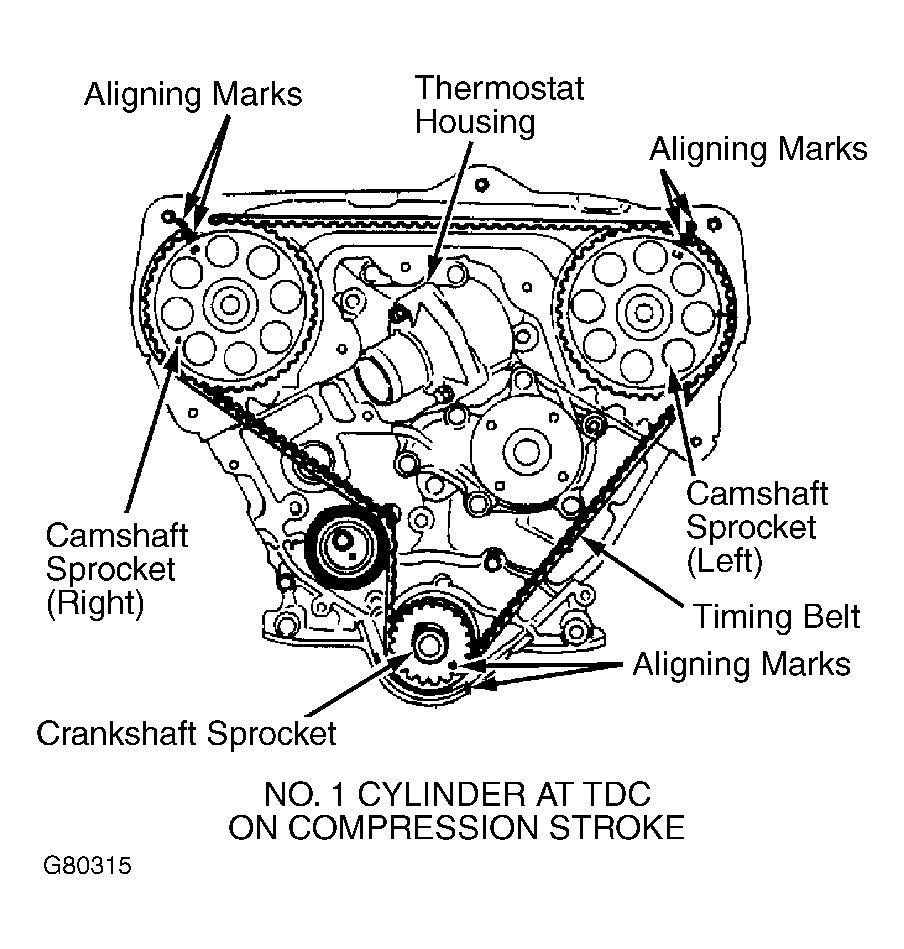

- Using Allen wrench, slowly turn tensioner clockwise and counterclockwise 2 or 3 times. When camshafts and crankshaft marks are aligned, tighten tensioner lock nut. See Fig 1. Ensure that camshaft lobes are correctly positioned. Tighten rocker shaft bolts in 2 stages. To complete installation, reverse removal procedures.
