Intake Manifold: Installation
WARNING: This page is about a different car, the 1988 Nissan 300ZX. However, it is still accessible from the selected car via links, so may be relevant.

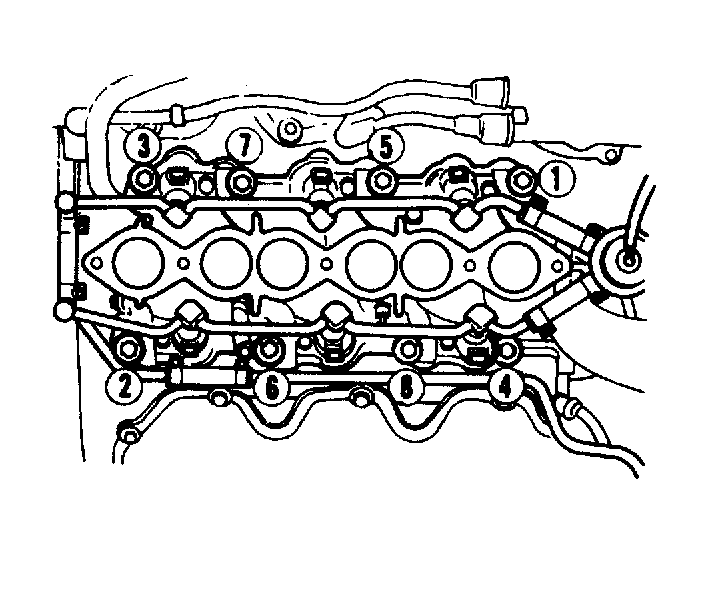

Using new gaskets, install intake manifold assembly. Tighten bolts in reverse order of removal sequence. See Figure. Ensure that all electrical and vacuum lines are properly connected. To complete installation, reverse removal procedure.
