Crankshaft Main Bearings Service
WARNING: This page is about a different car, the 1988 Nissan 300ZX. However, it is still accessible from the selected car via links, so may be relevant.
- Check bearings for scoring or wear. Replace if damaged. If replacing a standard size bearing with a standard oil clearance, replace bearing with one having same number.
- If number cannot be obtained, select bearing by adding numbers on crankshaft and cylinder block together to arrive at numbered bearing needed.

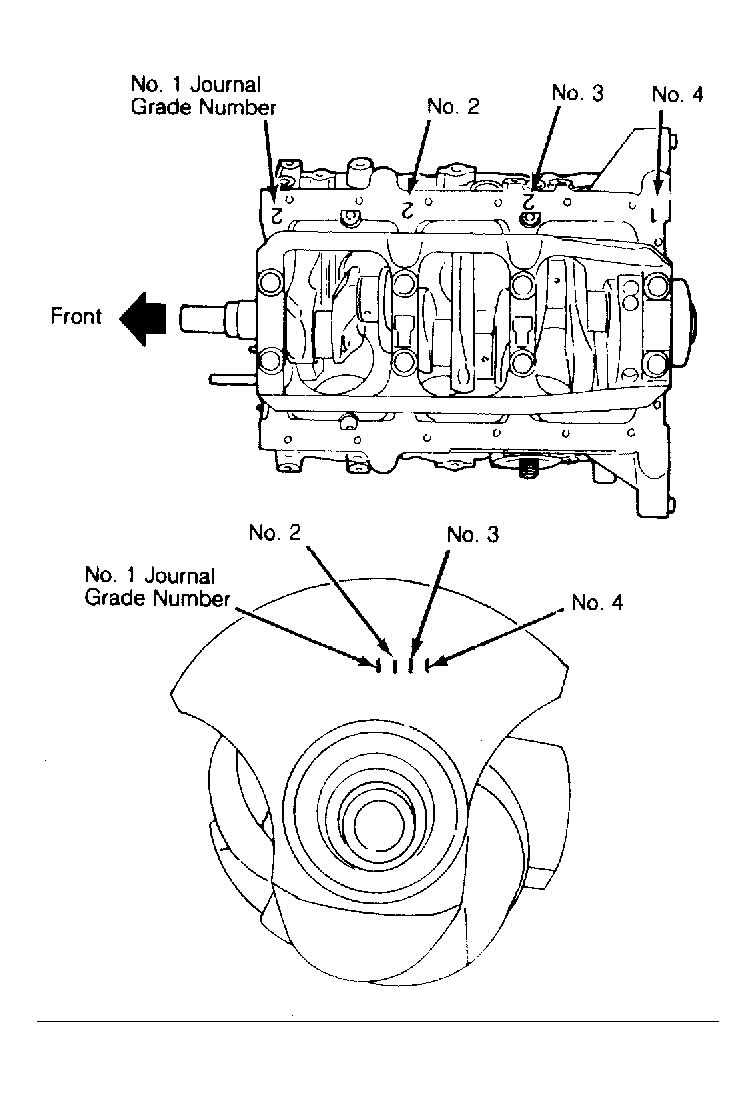

- For example, if cylinder block main bearing bore code number is one and crankshaft journal code number is 2, main bearing code number will be 3. See Fig 1 and CRANKSHAFT MAIN BEARING SPECIFICATIONS chart.
CRANKSHAFT MAIN BEARING SPECIFICATIONS
| Code No. | Thickness In. (mm) | ID/Color |
|---|---|---|
| 0 | .0715-.0717 (1.817-1.821) | Black |
| 1 | .0717-.0719 (1.821-1.825) | Brown |
| 2 | .0719-.0720 (1.825-1.829) | Green |
| 3 | .0720-.0722 (1.829-1.833) | Yellow |
| 4 | .0722-.0723 (1.833-1.837) | Blue |
