Removal & Installation

WARNING: This page is about a different car, the 1988 Nissan 300ZX. However, it is still accessible from the selected car via links, so may be relevant.

Drain coolant from radiator and engine block. See Fig 1. Remove fan belts and crankshaft pulley.

NOTE: It is not necessary to loosen or remove timing belt during water pump removal and installation, unless belt has been contaminated.

NOTE: Note location of water pump retaining bolts for proper reassembly.

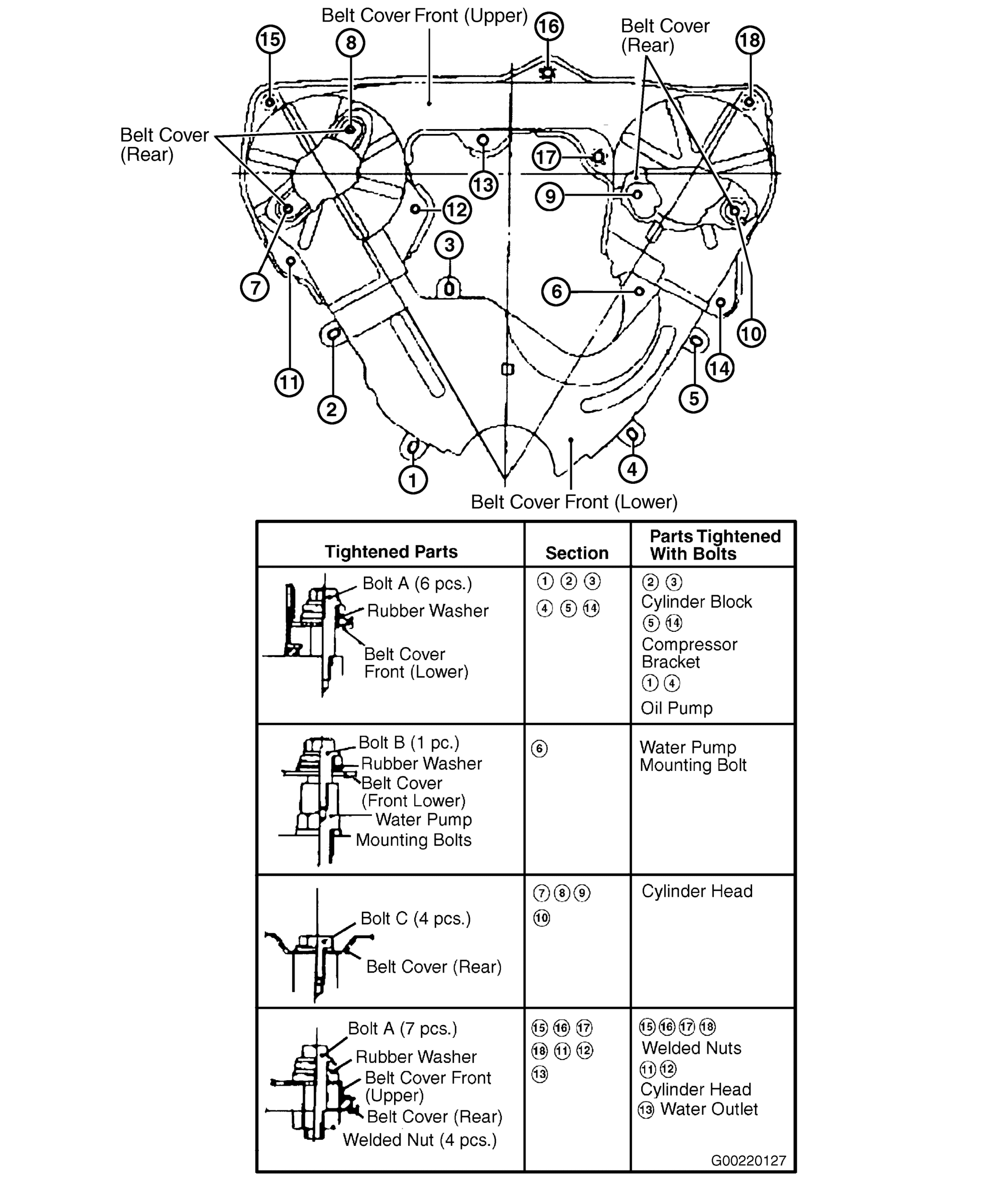

Remove upper and lower timing belt covers to access water pump retaining bolts. See Figure. Remove 6 water pump bolts and remove water pump from vehicle. See Fig 2.

NOTE: Use a scraper to remove the old liquid gasket from mating surface of cylinder block.

To install, reverse removal procedure. Apply a continuous bead of liquid gasket Sealant (KP610-00250), to mating surface of water pump. Pressure check system for leaks after installation. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .

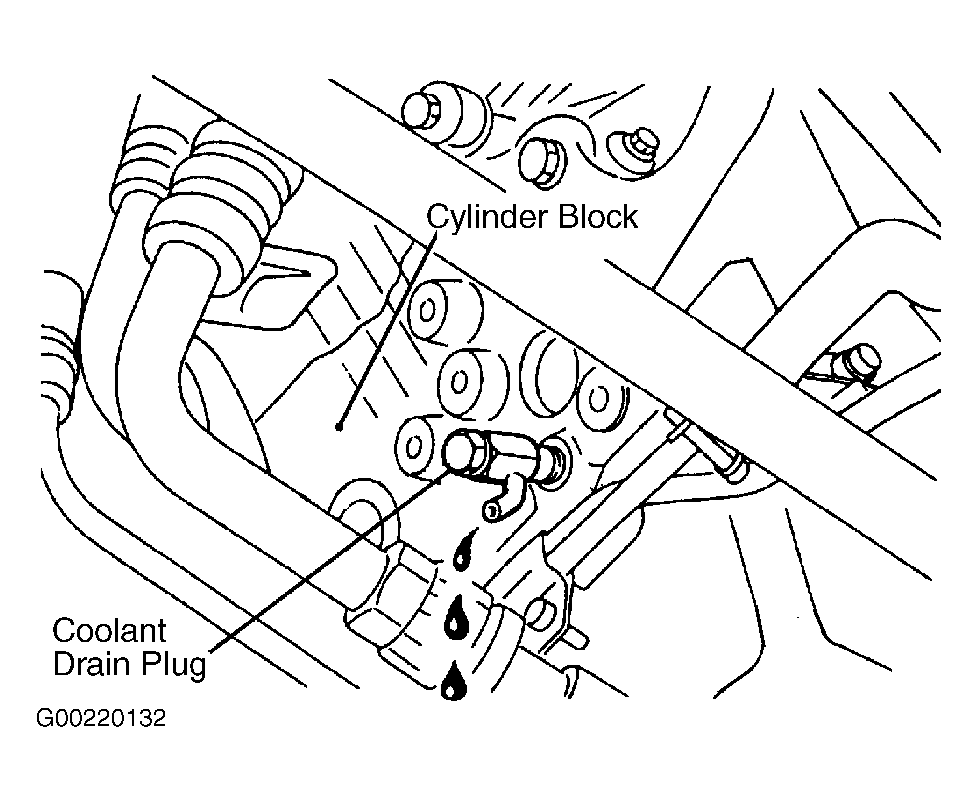

Fig 1: Locating Engine Block Coolant Drain Plug

Courtesy of NISSAN MOTOR CO., U.S.A.

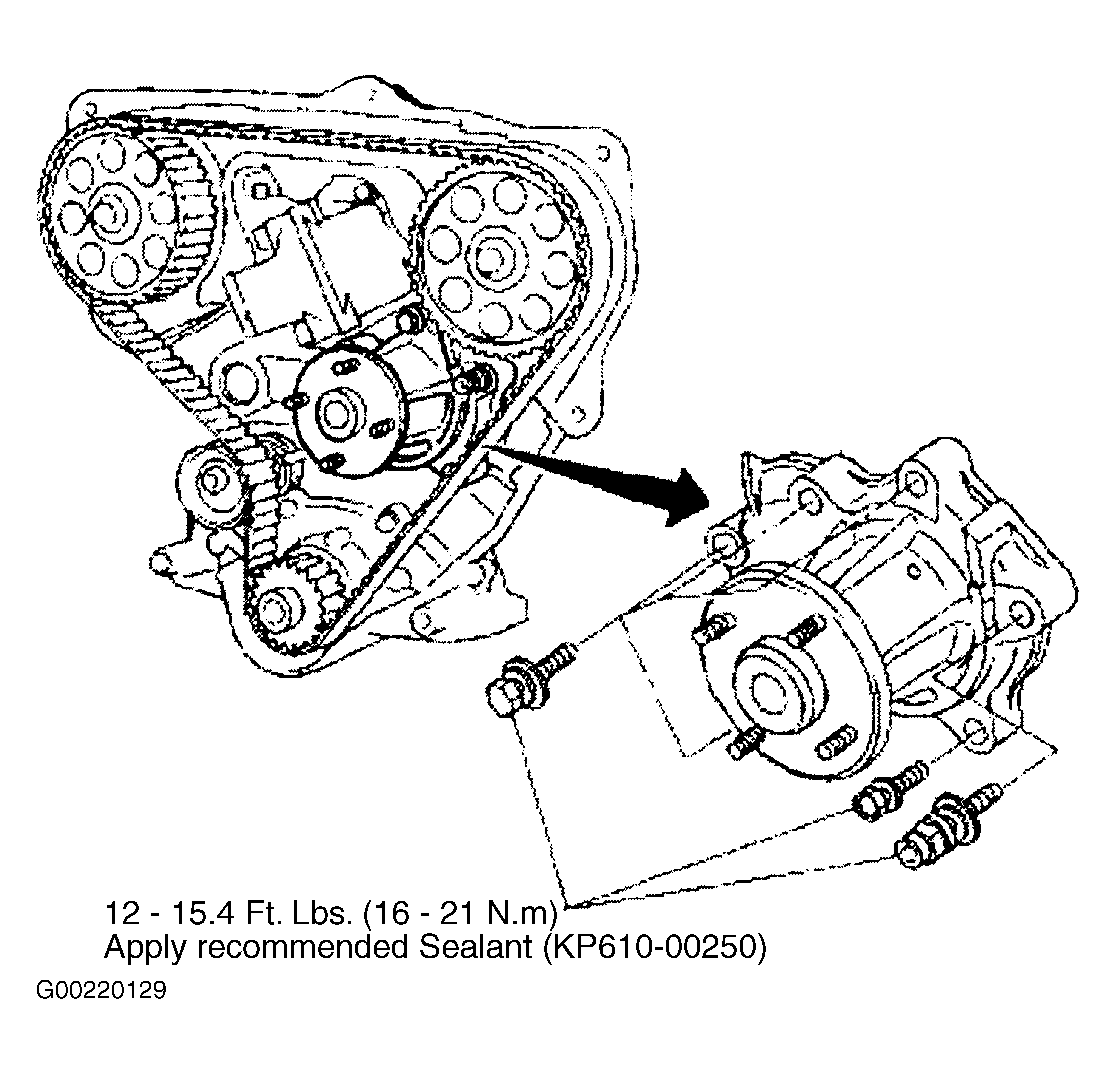

Fig 2: Removing & Installing Water Pump

Courtesy of NISSAN MOTOR CO., U.S.A.
