Speed Sensor Signal Check: 300ZX

Remove speed sensor from transmission. Turn speedometer pinion quickly and measure voltage across terminal No. 1 and No. 2. Voltage should be about .5 volts (AC). If reading is incorrect, replace speed sensor.

CAUTION: Ensure that pinion shaft is properly seated when installing speed sensor. Speed sensor thrusting key should fit into groove of pinion shaft.

SPEED SENSOR CONTINUITY CHECK

Model		Pos. Terminal	Neg.Terminal
Maxima		9	15
Pathfinder & Pickup
w/Sub Fuel Gauge		25	26
w/o Sub Fuel Gauge		25	24
Pulsar		3	4
Sentra
w/Tachometer		18	24
w/o Tachometer		21	20
Stanza		9	8
Stanza Wagon		10	5
Van		"A"	"B"
200SX		6	1

Fig 1: Combination Meter Connector & Speed Sensor Location (Van)

G62623

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Combination Meter Connectors & Speed Sensor Locations (200SX)

G64988

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Combination Meter Connector & Speed Sensor Location (300ZX)

G62622

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Combination Meter Connector & Speed Sensor Location (Maxima)

G62626

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Combination Meter Connector & Speed Sensor Location (Pulsar)

G62630

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Combination Meter Connector & Speed Sensor Location (Pathfinder & Pickup w/ Sub-Fuel Gauge)

G62625

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Combination Meter Connector & Speed Sensor Location (Pathfinder & Pickup w/o Sub-Fuel Gauge)

G62629

Courtesy of NISSAN MOTOR CO., U.S.A.

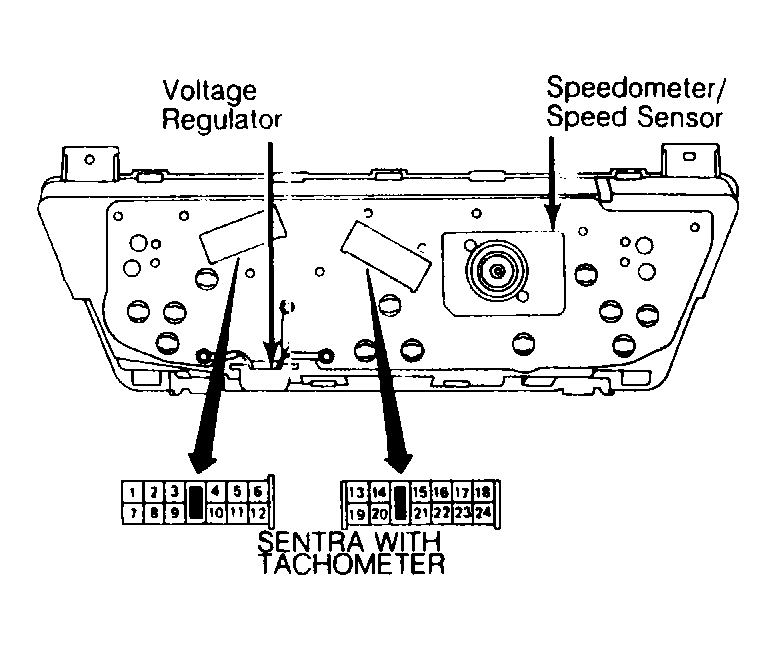

Fig 8: Combination Meter Connector & Speed Sensor Location (Sentra w/ Tachometer)

G64989

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Combination Meter Connector & Speed Sensor Location (Sentra w/o Tachometer)

G62628

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Combination Meter Connector & Speed Sensor Location (Stanza)

G62624

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Combination Meter Connector & Speed Sensor Location (Stanza Wagon)

G62627

Courtesy of NISSAN MOTOR CO., U.S.A.
