Removal & Installation (Van)

  1. Disconnect battery ground. Remove instrument panel upper garnish. Remove cluster lid "A" with air vents. Remove screws attaching combination meter to instrument panel. See Fig 1 .
  2. Release electrical connectors and speedometer cable. Remove combination meter from instrument panel. To install, reverse removal procedures.

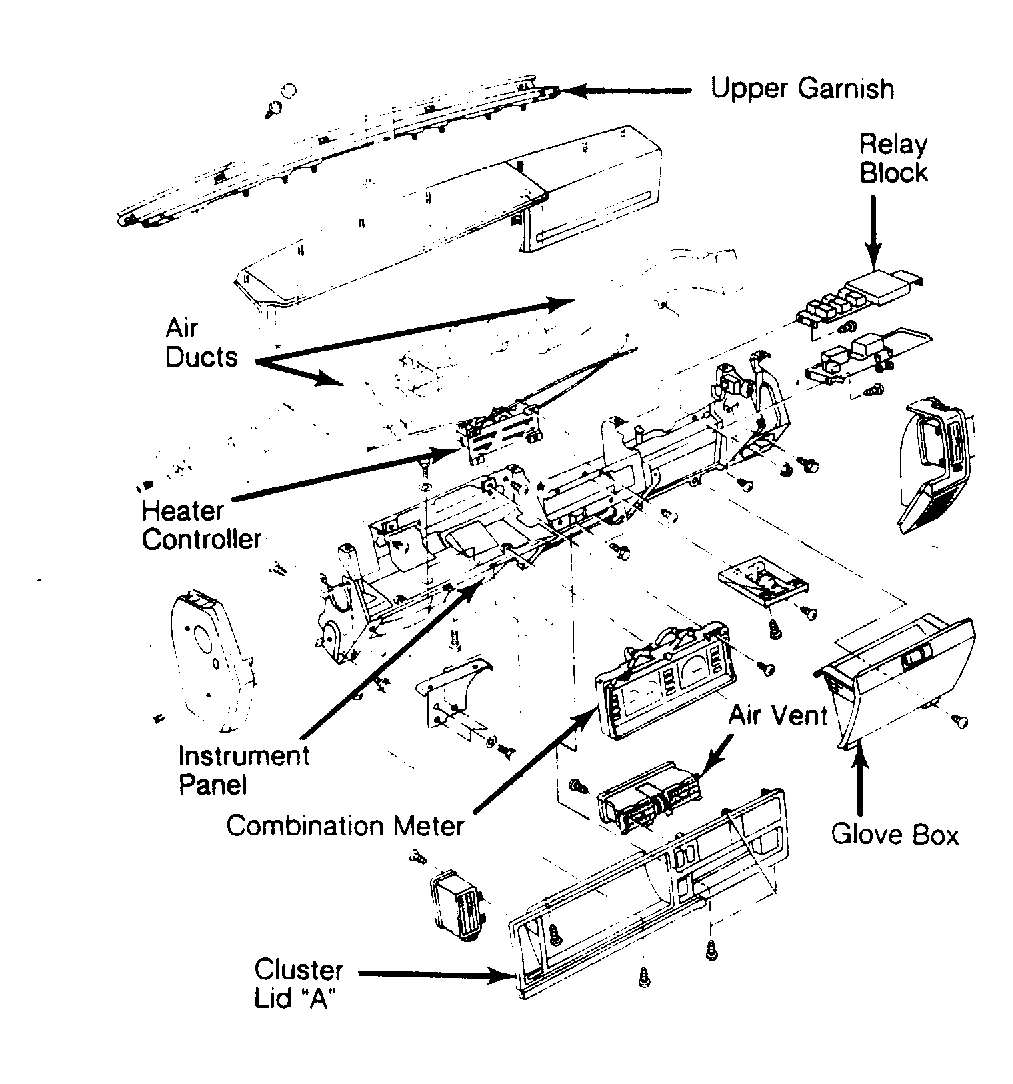

Fig 1: Exploded View of Van Instrument Panel
G65000Courtesy of NISSAN MOTOR CO., U.S.A.
