Removal & Installation (Pulsar, Sentra & Stanza)

1. Disconnect battery ground. Remove steering wheel. Remove steering column cover. Remove combination switch. Remove screws attaching cluster lid "A" located at base of cover. See Fig 1 , Fig 2 or Fig 3 .
2. Remove fuse block. Disconnect Super Multiple Junction (SMJ) for instrument harness. Lift off cluster lid "A". Remove screws attaching combination meter to instrument panel. Release electrical connectors and speedometer cable.
3. Remove choke cable and hood lock cable. Remove radio feed and harness wire. Remove combination meter from instrument panel. To install, reverse removal procedure.

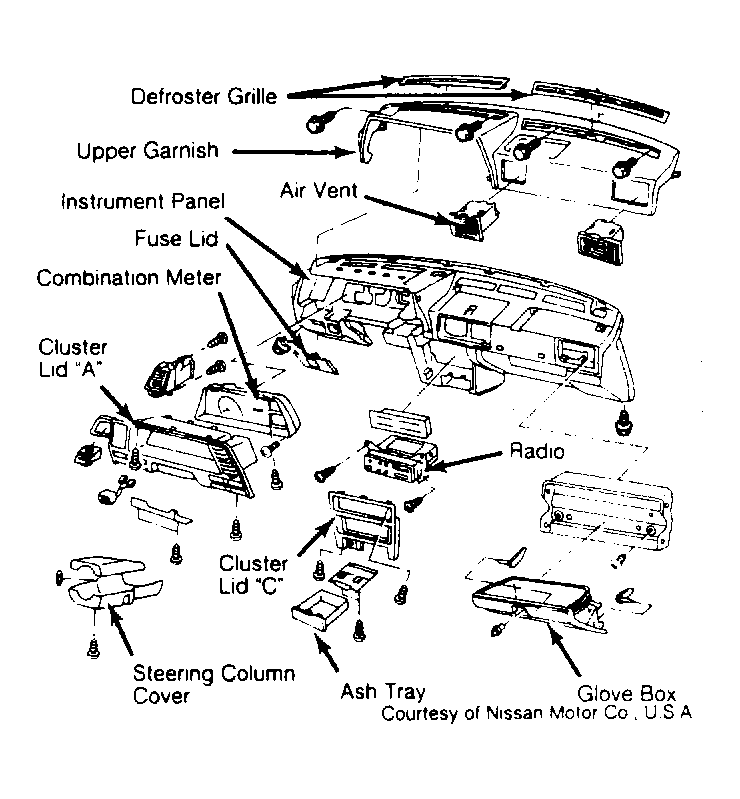

Fig 1: Exploded View of Pulsar Instrument Panel

Courtesy of NISSAN MOTOR CO., U.S.A.

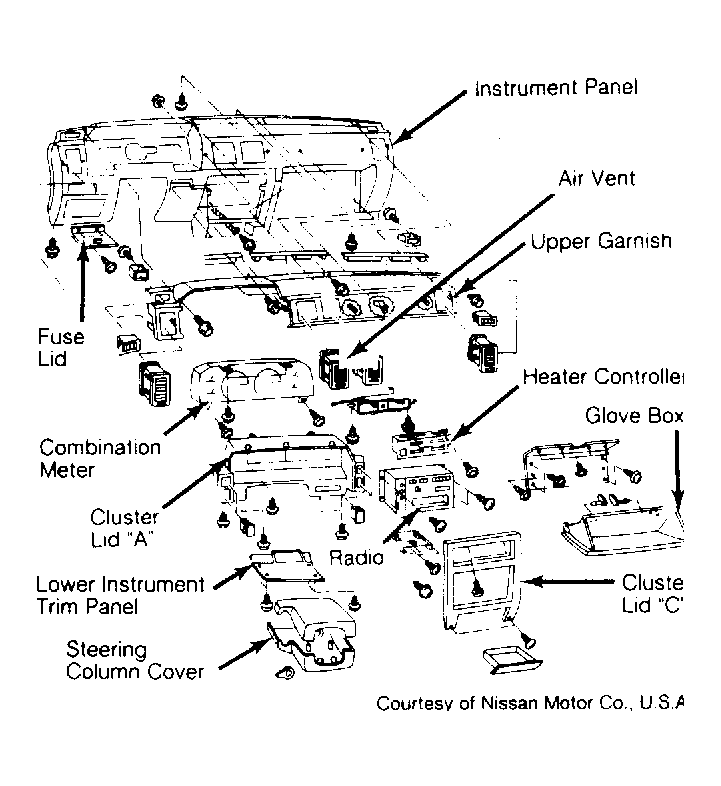

Fig 2: Exploded View of Sentra Instrument Panel

Courtesy of NISSAN MOTOR CO., U.S.A.

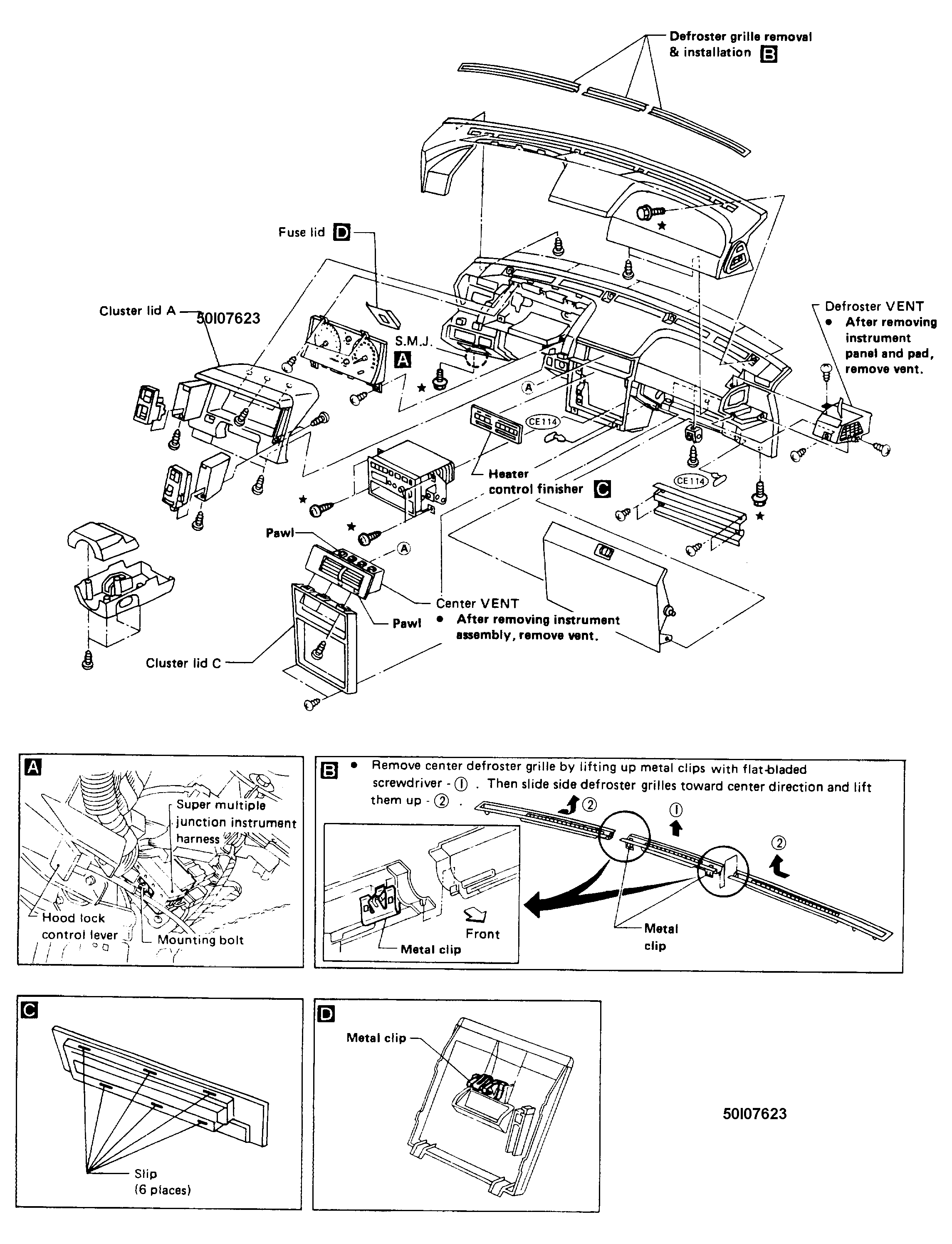

Fig 3: Exploded View of Stanza Instrument Panel

Courtesy of NISSAN MOTOR CO., U.S.A.
