Removal & Installation (Pathfinder & Pickup)

1. Disconnect battery ground. Remove steering wheel and column cover. Remove combination switch. Remove front pillar garnish. Remove fuse block. Disconnect Super Multiple Junction (SMJ) from instrument harness. Remove cluster lid "A". See Fig 1 .
2. Remove 4 screws attaching combination meter to instrument panel. Remove combination meter from instrument panel. Release electrical connectors and speedometer cable. To install, reverse removal procedure.

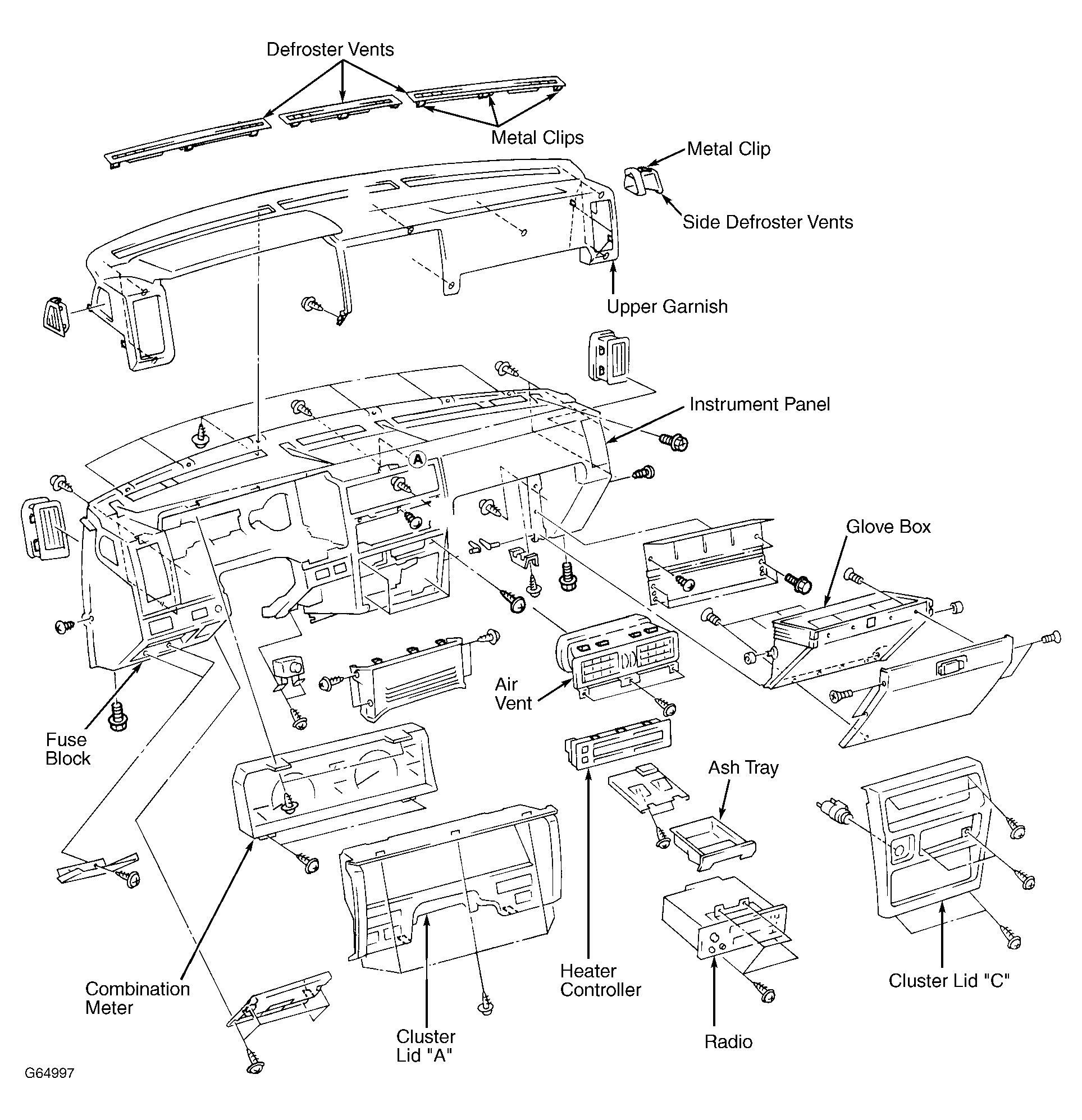

Fig 1: Exploded View of Pathfinder & Pickup Instrument Panel

Courtesy of NISSAN MOTOR CO., U.S.A.
