Vacuum Diaphragm: Adjustments
Vacuum Diaphragm Rod Adjustment1. Remove diaphragm from transmission case.

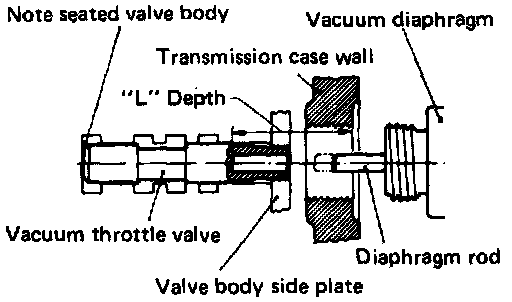

2. With a depth gauge, measure depth "L". Be sure vacuum throttle valve is pushed into valve body as far as possible.

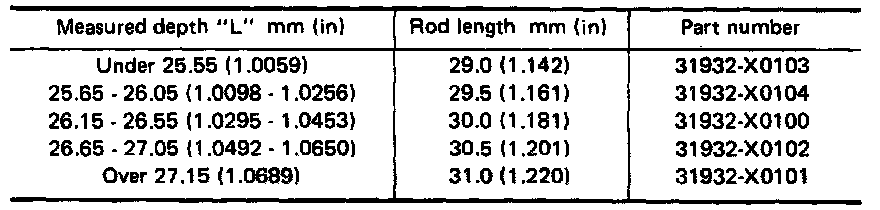

3. Check "L" depth with chart below and select proper length rod.
