A/T - 4N71B Overdrive Case

TSB 88-45 (Oct)

SUBJECT: NISSAN 4N71B

Overdrive Case

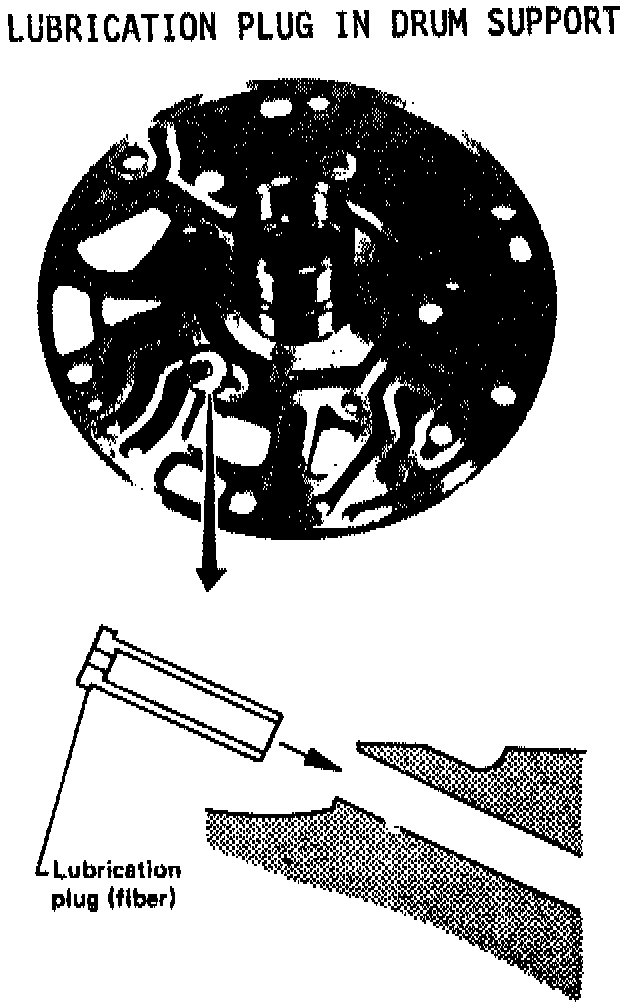

The illustrations show the correct installation of small parts installed into the overdrive case, and the lubrication plug in the drum support.

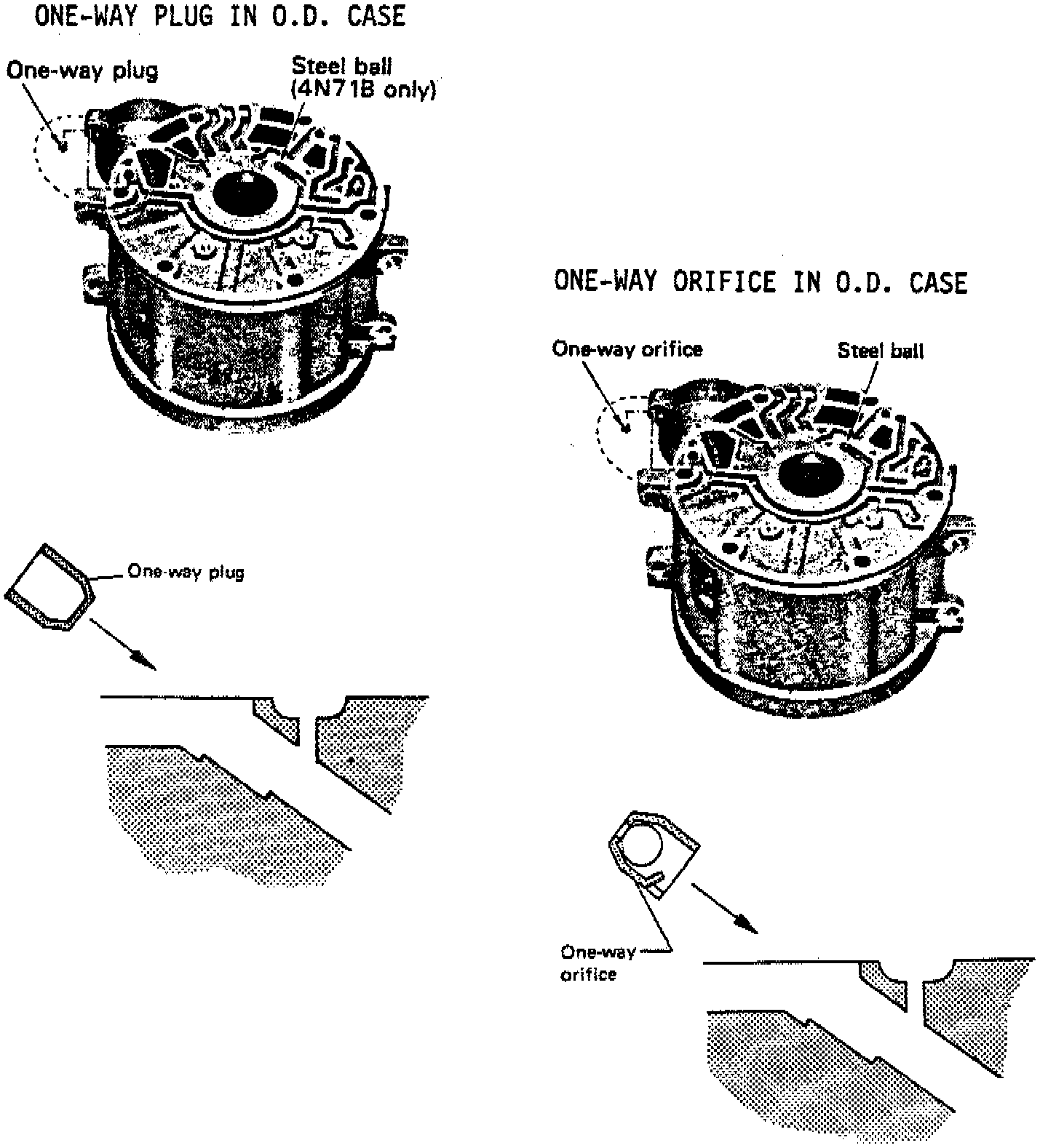

Some models use a one-way plug in the overdrive case. Others use a one-way orifice checkball capsule. These parts may fall out during disassembly and can be easily misplaced.
