Seals and Gaskets: Service and Repair

Extension Oil Seal Replacement
1. Remove transfer (4WD model).

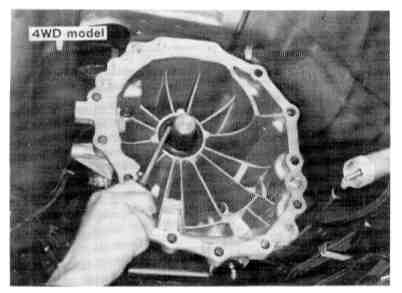

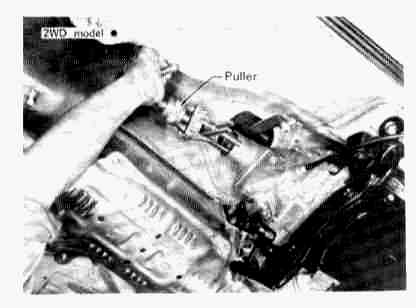

2. Remove oil seal.

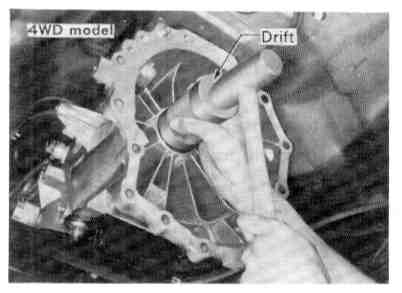

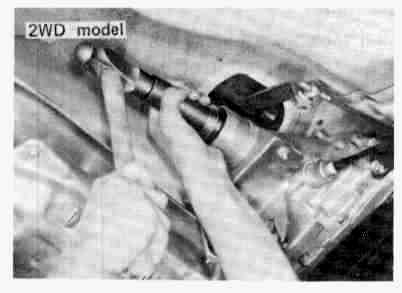

3. Apply coat of ATF to oil seal surface, then drive new seal into place.
4. Coat sealing lips with petroleum jelly, then install propeller shaft.
