Park Gear: Service and Repair

Parking Component
1. Remove transfer (4WD model).
2. Remove oil pan.
3. Remove propeller shaft.

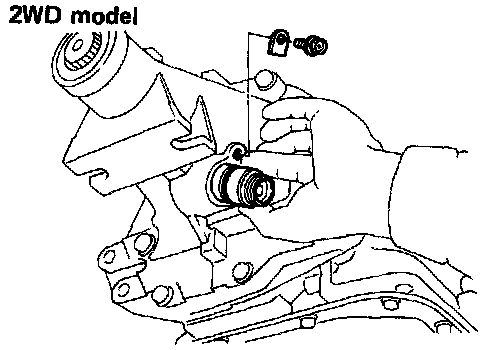

4. Remove speedometer pinion (2WD model).

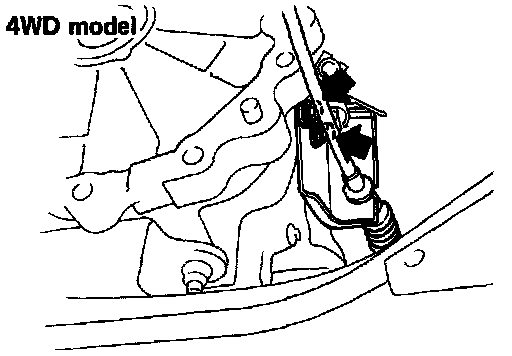

Remove control cable bracket (4WD model).

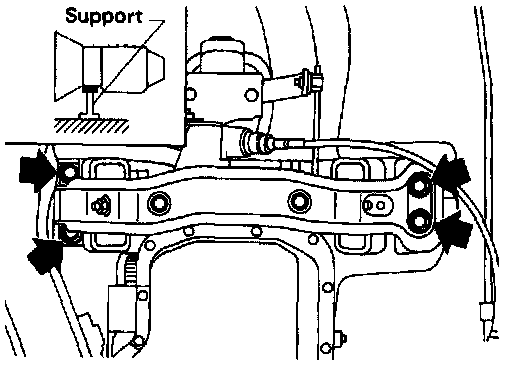

5. Support transmission with a jack, then remove rear mounting bolts.





6. Remove rear extension bolts, then draw out rear extension with rear mounting.

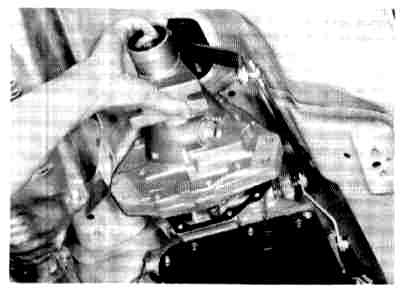

7. Remove control valve assembly.
8. Inspect and repair parking components.
- Check component parts for wear or damage.
