Wheel Cap - Installation Precaution

86nissan07

Models 1986.5 D21 Truck

Section Wheel & Tire

Classification WT86-002

Bulletin No. TS86-053

Date April 16, 1986



WHEEL CAP INSTALLATION 1986.5 D21 TRUCK


SERVICE INFORMATION

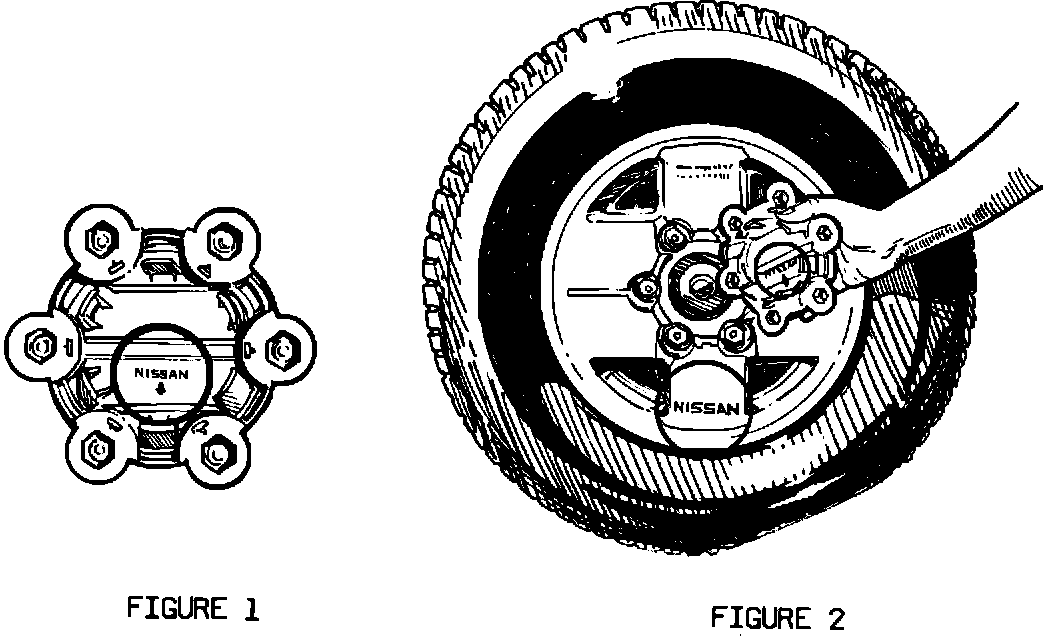

When reinstalling the center disc wheel cap on 1986.5 D21 Trucks, the arrow inside the wheel cap (Figure 1) must point to the word NISSAN stamped on the outer part of the wheel (Figure 2). If these reference marks are not aligned during installation, the cap retaining tab will be broken.
