Rear Leaf Spring - Squeaking Noise
87nissan2Reference: Date:
TECHNICAL BULLETIN TS87-109 July 6, 1987
Classification: Section: Models:
RA87-005 Rear Axle 1986.5-1987 Truck (D21)
REAR SPRING SQUEAK
APPLIED MODEL: 1986.5 - 1987 Truck (D21)
APPLIED VINs:
Japan Std. Bed Z24 2WD - Before JN6ND11S( )HW-005822
Built Long Bed Z24 2WD - Before JN6ND12S( )HW-000684
Trucks: King Cab Z24 2WD - Before JN6ND16S( )HW-006043
Std. Bed Z24 4WD - Before JN6ND11Y( )HW-001058
Long Bed Z24 4WD - Before JN6ND12Y( )HW-000206
King Cab Z24 4WD - Before JN6ND16Y( )HW-001541
Std. Bed VG30 2WD - Before JN6HD11S( )HW-000164
King Cab VG30 2WD - Before JN6HD16S( )HW-001714
Std. Bed VG30 4WD - Before JN6HD11Y( )HW-000351
King Cab VG30 4WD - Before JN6HD16Y( )HW-002374
Long Bed Hvy. Dty. - Before JN6HD12H( )HW-000219
Cab & Chassis - Before JN6HD15H( )HW-000193
U.S. Built
Trucks: All Models - Before 1N6 ( )HC-352063
SERVICE INFORMATION

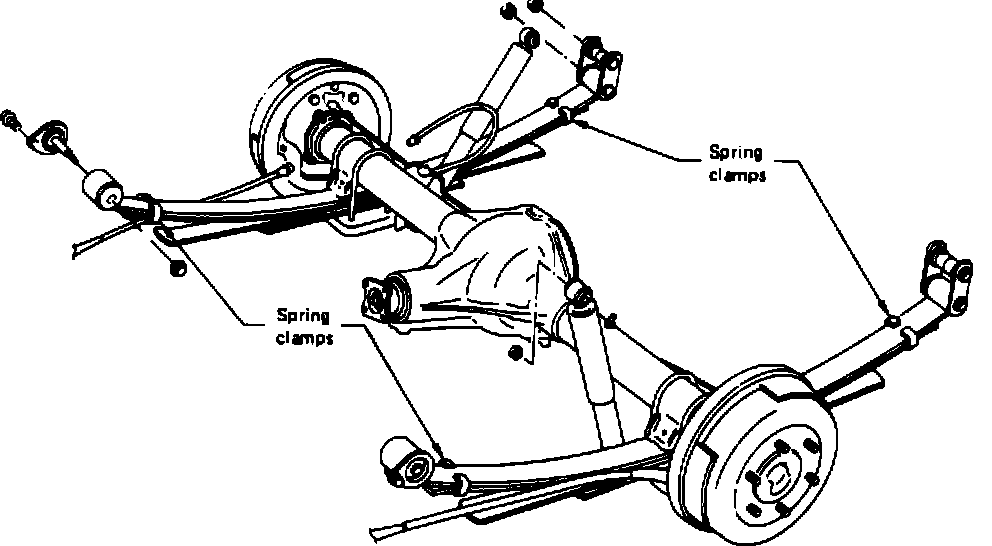

The rear leaf springs of 1986.5 - 1987 Truck vehicles built before the Applied VINs above may squeak when the truck is driven over rough roads. The squeak may be caused by the #1 leaf spring rubbing against the spring clamps.
To reduce this noise, spread the width of the clamp as described below.

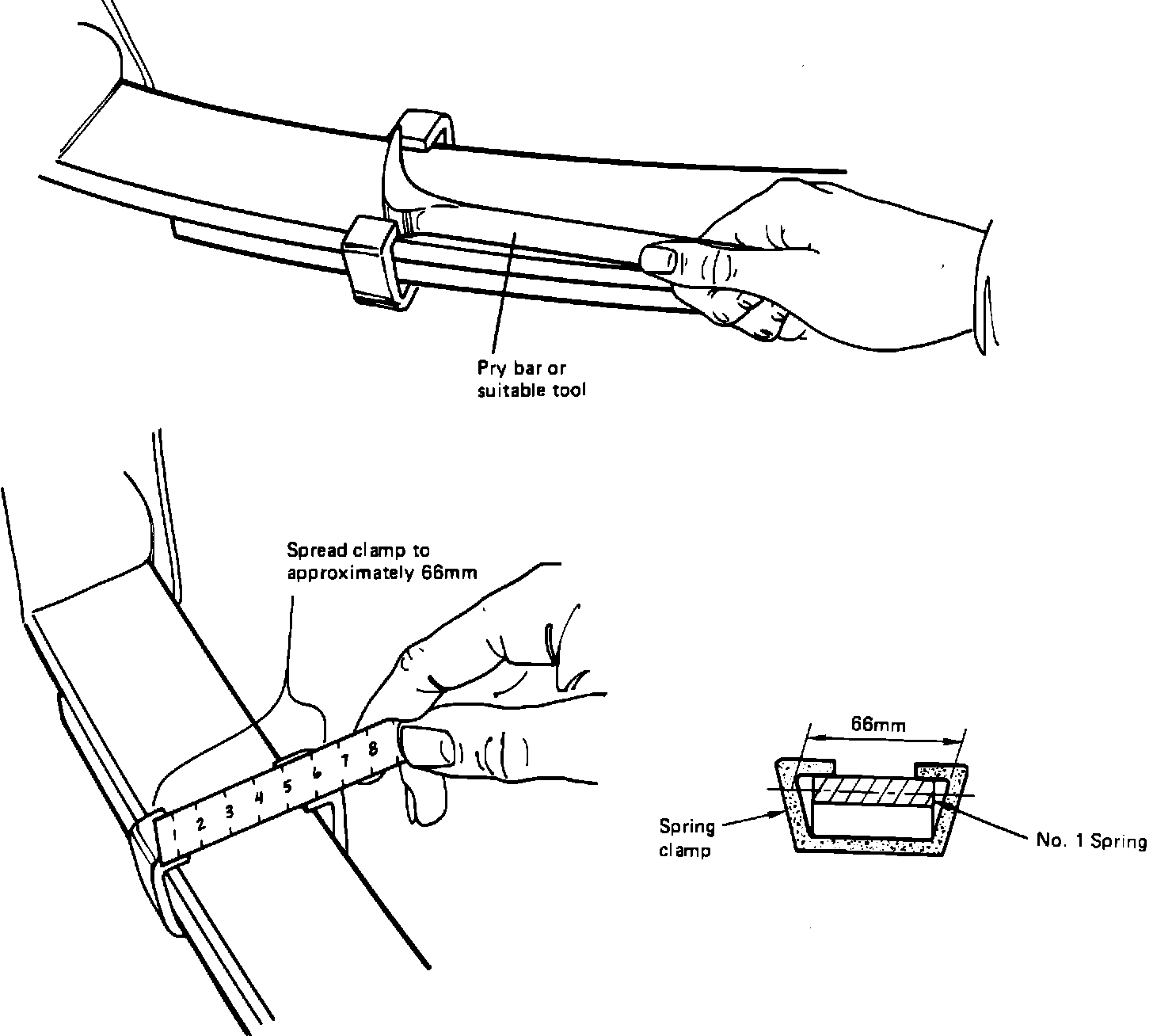

^ Using a pry bar or a suitable tool, spread the top of the clamps (2 per side) approximately 5 mm (to 66 mm) as shown below.
WARRANTY IWORMATION
CS PNC CT OP CODE FLAT RATE
4R 55020 35 LK99AB 0.3/hr.
