Propeller Shaft - Manual Correction

86nissan07

Models 1986.5 D21 Truck

Section Propeller Shaft

Classification PD86-001

Bulletin No. TS86-131

Date July 23, 1986



PROPELLER SHAFT CORRECTION, 1986.5 D21 TRUCK SERVICE MANUAL

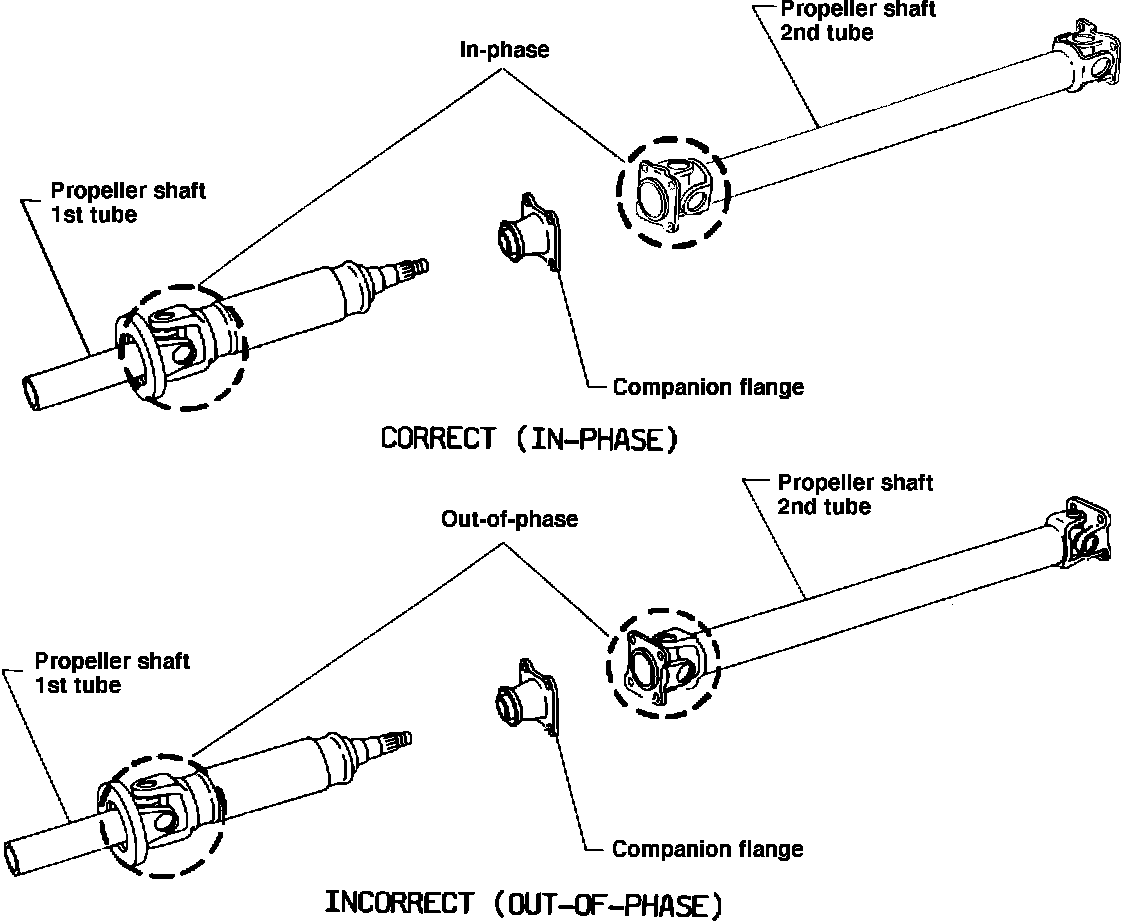

Page PD-4 (November 1985 (01) printing) and page PD-9 (March 1986 (02) printing) of the 1986 D21 Truck service Manual contain incorrect illustrations of both two-piece rear propeller shafts. The propeller shaft yokes in the manuals are incorrectly shown out-of-phase. The correct (in-phase) and incorrect (out-of-phase) illustrations are shown below for your reference. An amended page to the November 1985 Service Manual printing containing this revised information was attached to this bulletin at the time of distribution.
