Manual Steering Gear Box - Oil Fill Level

86nissan09

Models 1986.5 Truck

Section Steering

Classification ST86-002

Bulletin No. TS86-055

Date April 17, 1986



MANUAL STEERING GEAR BOX OIL LEVEL, 1986.5 D21 TRUCK

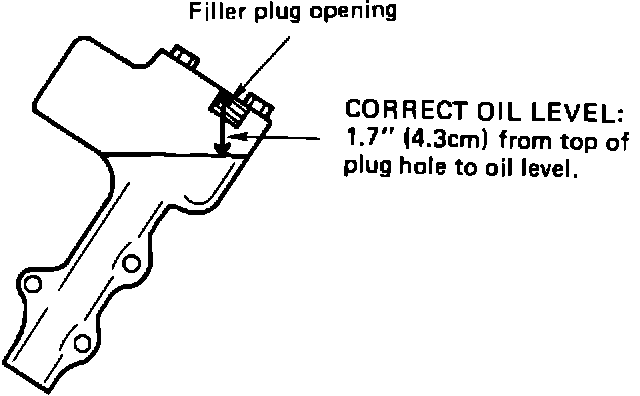

The oil level capacity of the manual steering gear box on 1986.5 D21 Trucks is 3/4 pint, as listed on pages GI-18 and ST-48 of the Service Manual. When manually checking this fluid level, use the specification shown below to determine if additional fluid is required.
