M/T - Shifter Guide Plate Installation Caution

86nissan08

Models 1986.5 D21 Truck

Section Transmission

Classification TM86-015

Bulletin No. TS86-138

Date July 29, 1986



SHIFTER GUIDE PLATE INSTALLATION CAUTION, 1986.5 TRUCK


APPLIED MODEL: 1986.5 D21 Truck with VG301 engine and manual transmission (FS5R30A)

SERVICE INFORMATION

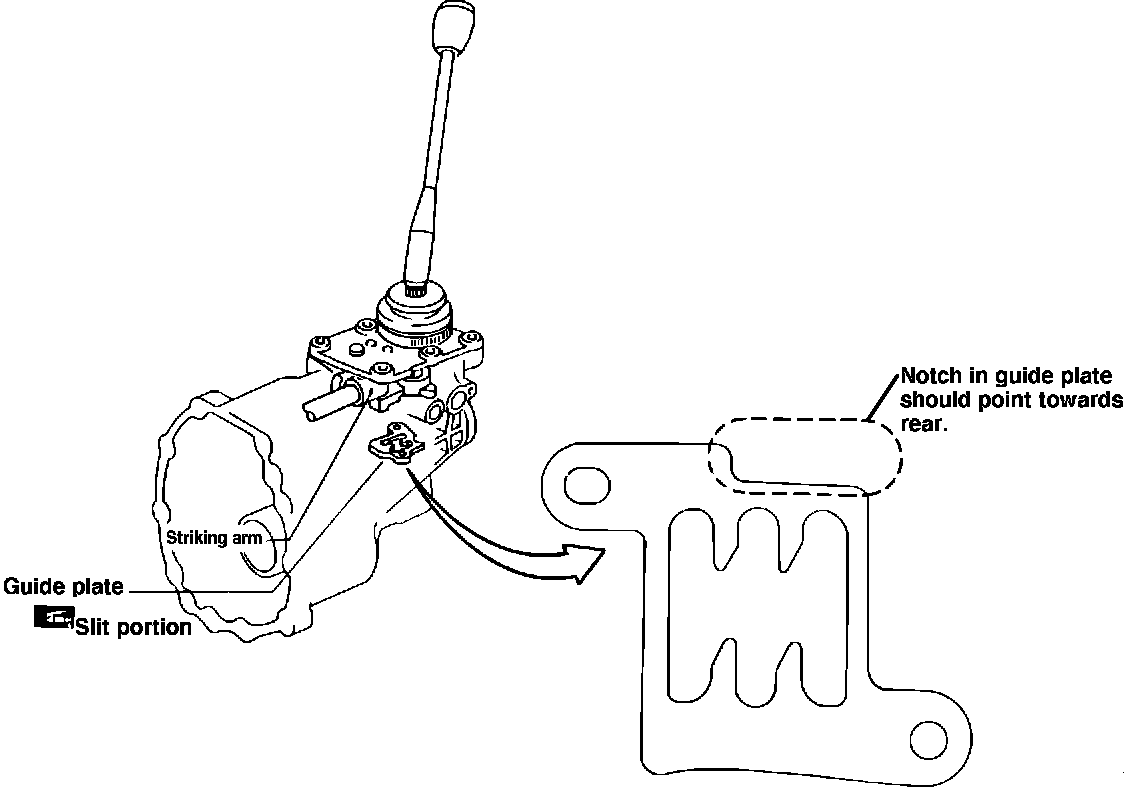

Some 1986.5 D21 Trucks equipped with the VG30i engine and manual transmission have a shifter guide plate that can be improperly installed backwards. If installed backwards, the transmission will not fully engage 2nd, 4th and reverse gears and may not stay in one or more of these gears. When reassembling the transmission after servicing, make sure the guide plate is installed correctly (see illustration below).
