M/T - Countermeasure Application
Reference: Date: April 18, 1986 TECHNICAL BULLETIN T586-048Classification: Section
TM86-008 Models:
Transmission 1986.5 Truck
COUNTERMEASURE TRANSMISSION APPLICATION 1986.5 D21 TRUCK
APPLIED MODEL: 1986.5 2WD and 4WD D21 Trucks with VG30i (V6) engines and manual transmission (Japan produced vehicles only)
APPLIED DATE: March 10, 1986
APPLIED VINs:
MODEL SERIAL NUMBER
2WD Regular Bed JN6HD11S()GW-001281
2WD King Cab JN6HD16S()GW-003075
2WD Long Bed Heavy Duty JN6HD12H()GW-001949
Cab & Chassis JN6HD15H()GW-000707
4WD Regular Bed JN6HD11Y()GW-001222
4WD King Cab JN6HD16Y()GW-002099
COUNTERMEASURE IDENTIFICATION:
SERVICE INFORMATION

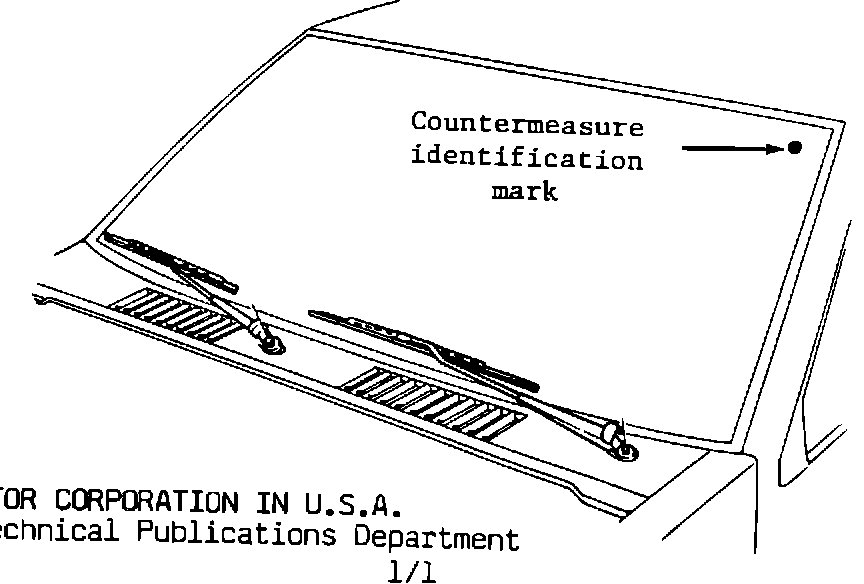

Countermeasure Manual Transmission Assemblies (Model: FS5R30A) for the Applied Models have been installed at the factory since March 10, 1986. For identification purposes, a small blue dot has been placed on the upper left (driver side) of the windshield of these vehicles, (as shown) starting with the Applied VINs. The special service procedures and components described in Technical Bulletins TM86-002, TM86-003 and TM86-005 DO NOT apply to these vehicles. Remove the dot upon receipt of the vehicles.
