M/T - Baulk Ring Procedure Correction

86nissan08

Models 1986.5 D21 Truck

Section Transmission
Classification TM86-013
Bulletin No. TS86-121
Date July 2, 1986



BAULK RING PROCEDURE CORRECTION, 1986.5 D21 TRUCK SERVICE MANUAL

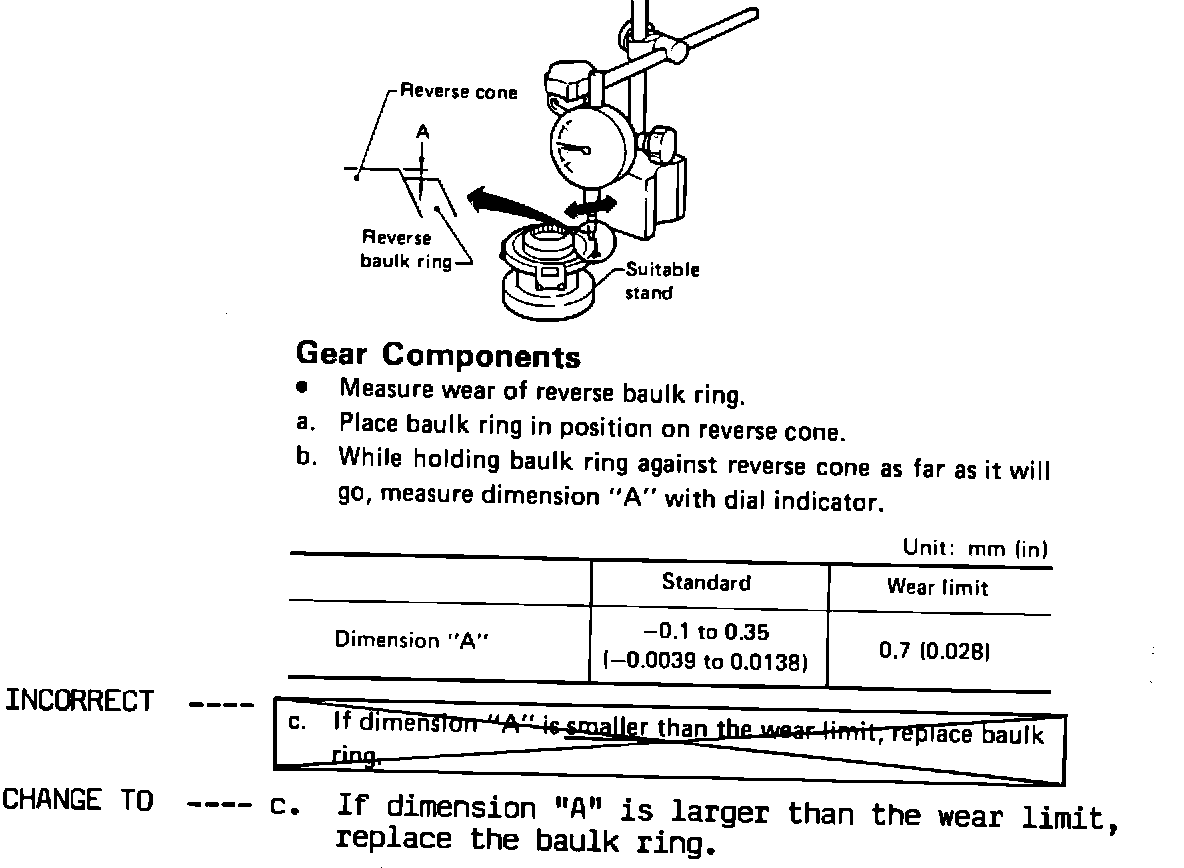

Page MT-40 of the November, 1985 (01) printing of the 1985.5 D21 Truck Service Manual incorrectly states that "if the wear limit is smaller than specified, replace the baulk ring". The text should state that if the wear limit is larger than specified, the baulk ring should be replaced. The correction is shown below for your convenience. Please make note of this correction by hand to your copy of the subject Service Manual. Future printings of this manual will contain the correct procedure.
