Engine - Oil Pan Liquid Gasket Installation Procedure
87nissan05Models All Models
Section Engine Mechanical
Classification EM87-006
Bulletin No. TS87-160
Date October 26, 1987
LIQUID GASKET INSTALLATION PROCEDURE
APPLIED MODELS: All Models with VG30 Engines beginning with the engine serial numbers listed below:
APPLIED ENGINE SERIAL NUMBER RANGE:
MODEL ENGINE SERIAL NUMBER
300ZX Turbo VG30-869970A
300ZX Non-Turbo VG30-866776A
Maxima VG30-858279A
200SX VG30-859037A
2WD Truck VG30-859574A
4WD Truck & Pathfinder VG30-857533A
PARTS INFORMATION
PART DESCRIPTION PART NUMBER
Liquid gasket 999MP-A7007
SERVICE INFORMATION
The following procedure outlines the installation procedure for the new, liquid-type oil pan gasket:

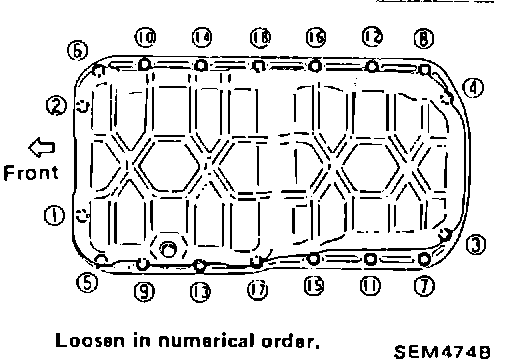

1. Remove oil pan bolts in the order shown below.

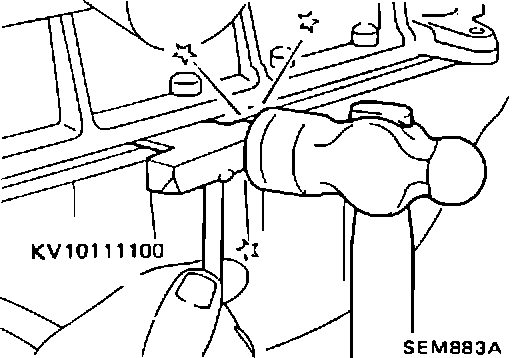

2. Lightly tap Seal Cutter (KV10111100) or suitable tool between oil pan and cylinder block.
CAUTION:
^ DO NOT drive seal cutter into the oil pump or rear oil seal retainer; the aluminum mating face could be damaged.
^ DO NOT use a screwdriver as a substitute for seal cutter; the oil flange could be damaged.
3. Tap the seal cutter along the side of the oil pan to separate the oil pan from the cylinder block.
4. Use a gasket scraper to remove all debris and old gasket material from the oil pan and cylinder block mating surfaces. Both surfaces must be completely cleaned.

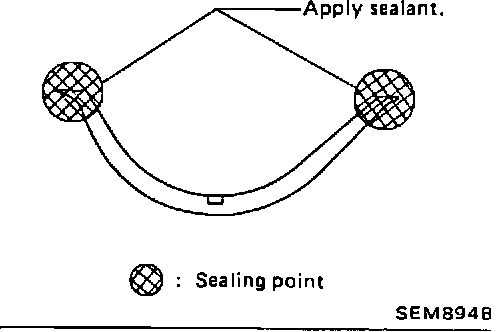

5. Apply RTV sealant to the oil pump gasket and rear oil seal retainer as shown.

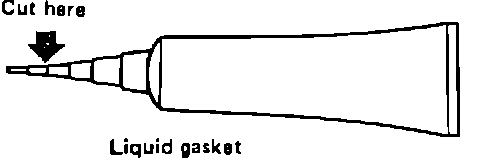

6. Cut the tip of the liquid gasket tube (P/N 999MP-A7007) as shown to obtain a bead width of 3.5 to 4.5 mm (0.138 to 0.177 in.).
7. Apply a continuous bead of liquid gasket along the groove of the oil pan mating surface.

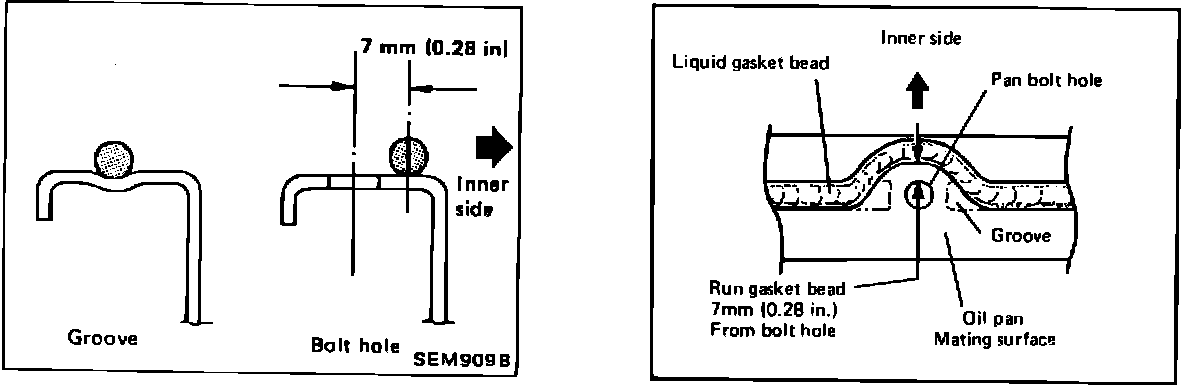

NOTE: In the area near each bolt hole, apply the liquid gasket bead as shown below. The bead should be run on the inner side of the oil pan mating surface as shown.
8. Position oil pan on block WITHIN 5 MINUTES after applying the liquid gasket.
9. Install and tighten oil pan bolts IN REVERSE of the removal order shown in step 1).
10. WAIT AT LEAST 30 MINUTES BEFORE FILLING CRANKCASE WITH OIL.
NOTE: Liquid gasket should not be used on engines originally equipped with a rubber gasket.
