Audio - Radio Volume Loss
87nissan04Reference: Date: November 2, 1987 TECHNICAL BULLETIN TS87-164 Classification:
EL87-022 Section: Electrical System Models: 1986.5-1987 D21 Truck
RADIO VOLUME LOSS
APPLIED MODEL: 1986.5-1987 D21 Truck with dealer installed ET/100 AM/FM ET combo radio (P/N B8026-C9910RX)
SERVICE INFORMATION
Some of the Applied Model vehicles may exhibit radio volume loss when the windshield wipers are turned off. This condition has been corrected in current production radios, and the countermeasure radios may be identified by an "EF" stamp on the radio back panel. Pre-countermeasure incident radios lose volume for about 1 to 3 seconds just before the wipers reach the park position. Use the following Parts Information and Service Procedure to eliminate this condition.
PARTS INFORMATION
PART DESCRIPTION SPECIFICATION
Heavy Duty Noise Any noise suppression kit
Eliminator Kit with a 1.5 mH choke.
(Available at most electronic supply stores.)
SERVICE PROCEDURE
1. Write down all preset radio frequencies (AM & FM).
2. Disconnect the negative battery cable.
3. Locate the green/white wire between the fuse block and radio. This is the wire between the ACC/ON fuse and the radio.

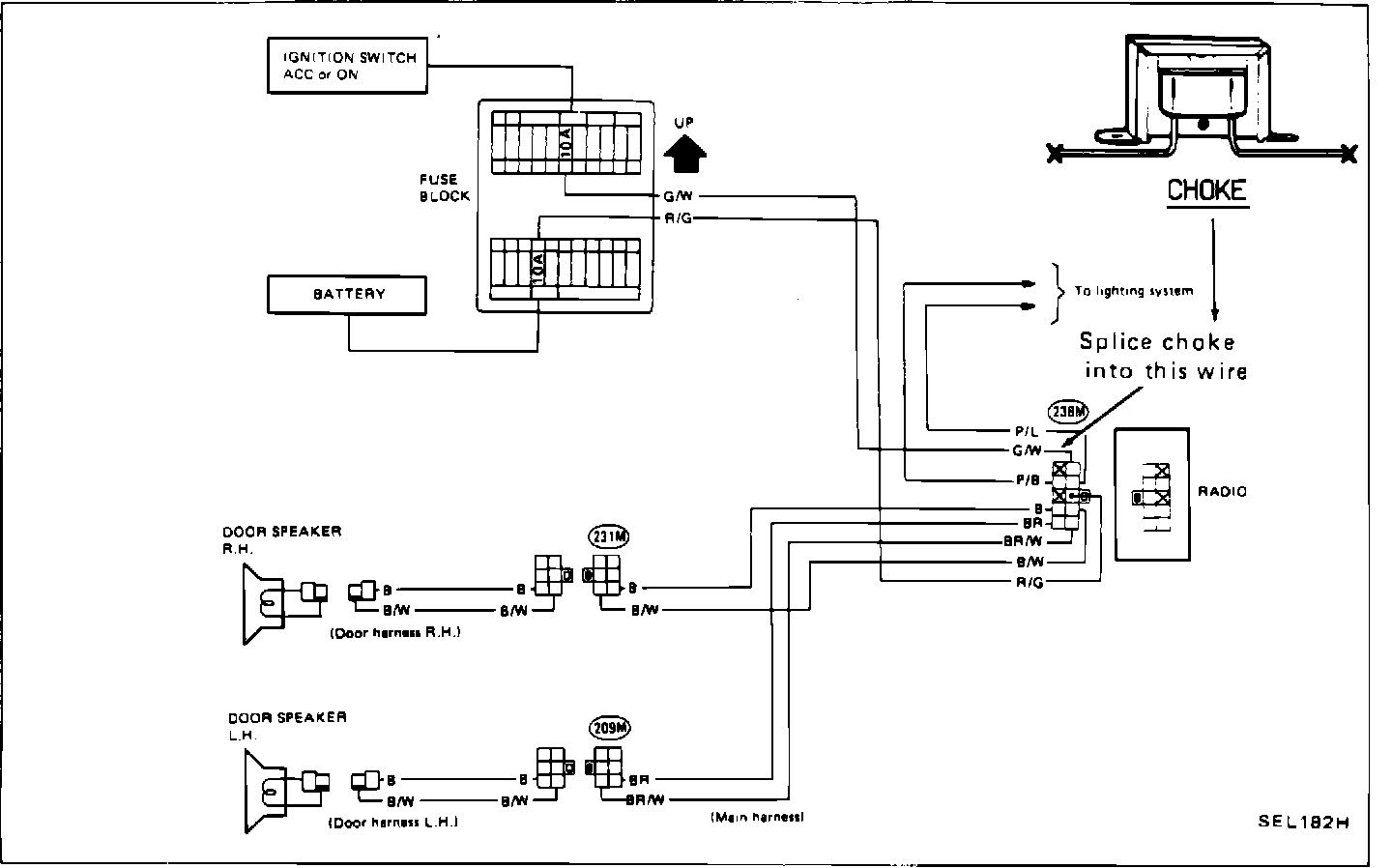

4. At the radio end of the harness, cut this wire and splice the choke from the noise eliminator kit onto the wire (W/R) as indicated below. Wrap the choke in urethane foam tape to reduce possible noise.
5. Reconnect the negative battery cable and confirm that the incident has been resolved.
6. Reset the radio frequencies as noted in Step 1.
WARRANTY INFORMATION
CS PNC CT OP CODE FLAT RATE
4Q 24013 99 PA99AB 0.2/hr
