Home >> Nissan-Datsun >> 1986 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Locations >> Passenger Compartment

Passenger Compartment

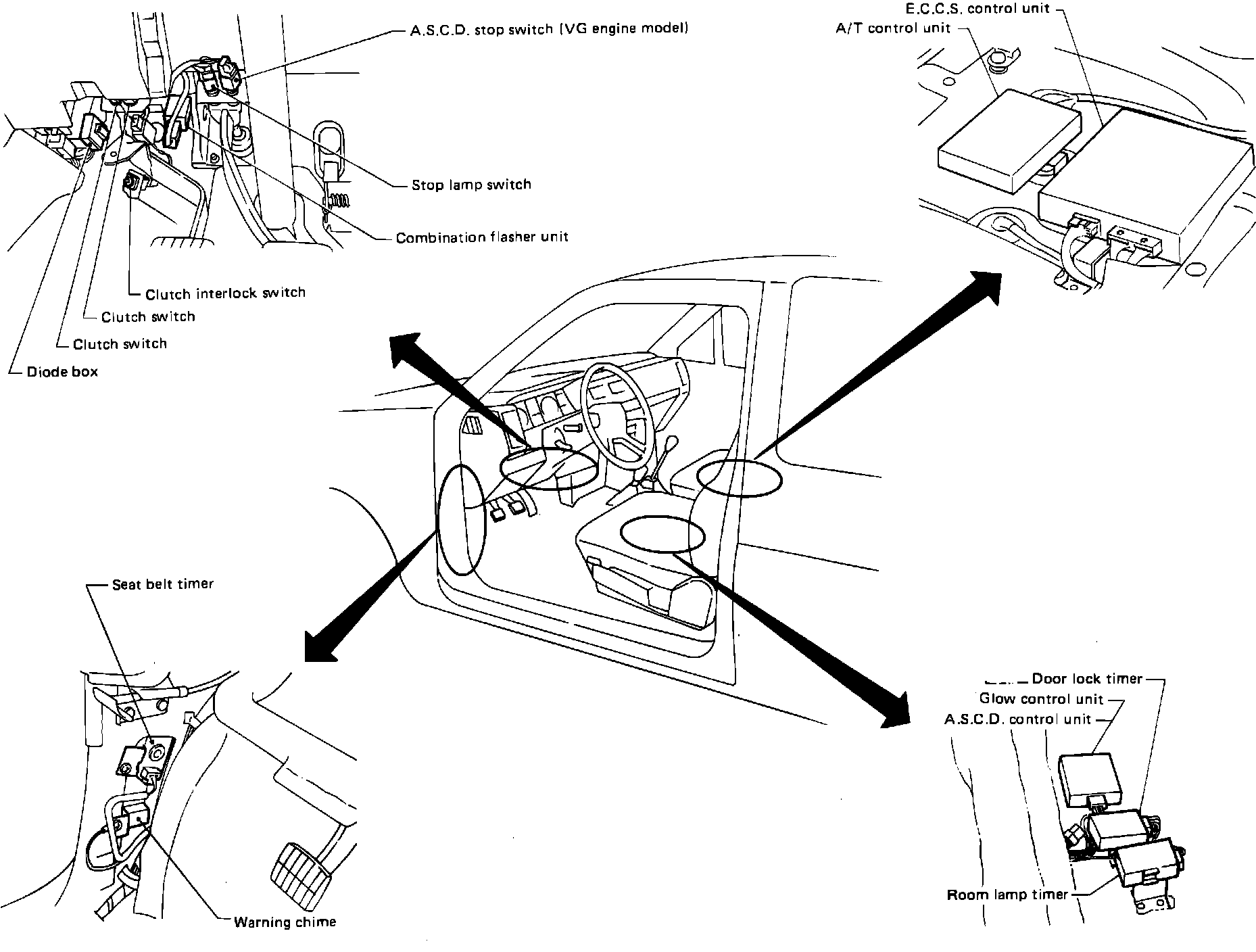

Fig. 4 Electrical Unit Locations. Passenger Compartment:
