A/T Model Wiring Diagram

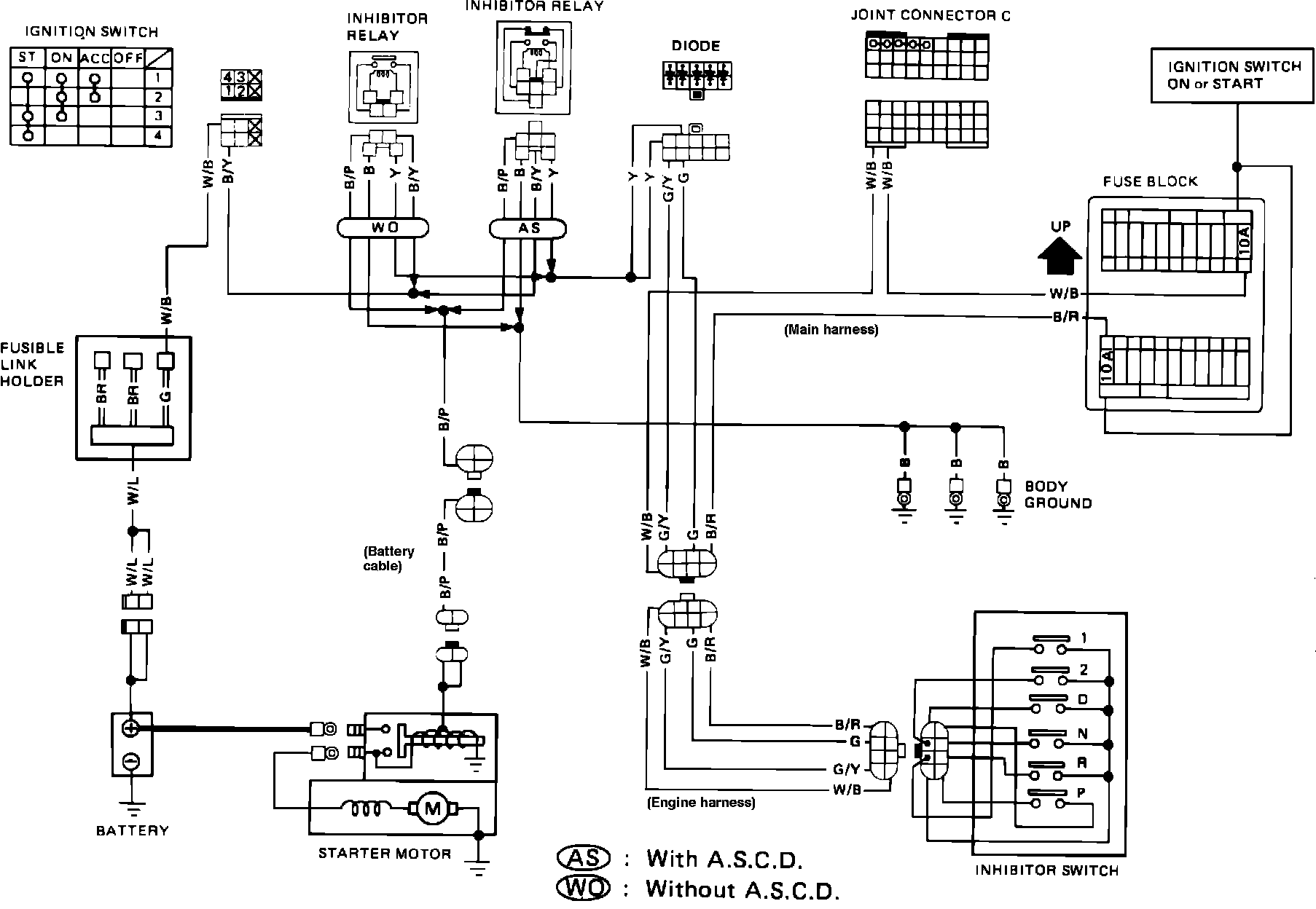

Fig. 38 Starting System Wiring Circuit. Automatic Transmission & VG30i Engine:
