Ignition - New Distributor Rotor Shield Plate

87nissan04

Reference: Date: November 2, 1987 TECHNICAL BULLETIN TS87-142 Classification:
EL87-018 Section: Engine Electrical Models: All Models with VG30 engine


NEW ROTOR SHIELD PLATE


APPLIED MODELS: 1984-87 300ZX (Z31)
1985-87 Maxima (U11)
1987 200SX (S12) with VG30 engine
1986.5-87 Truck (D21) with VG30 engine
1987 Pathfinder (WD21) with VG30 engine




SERVICE INFORMATION

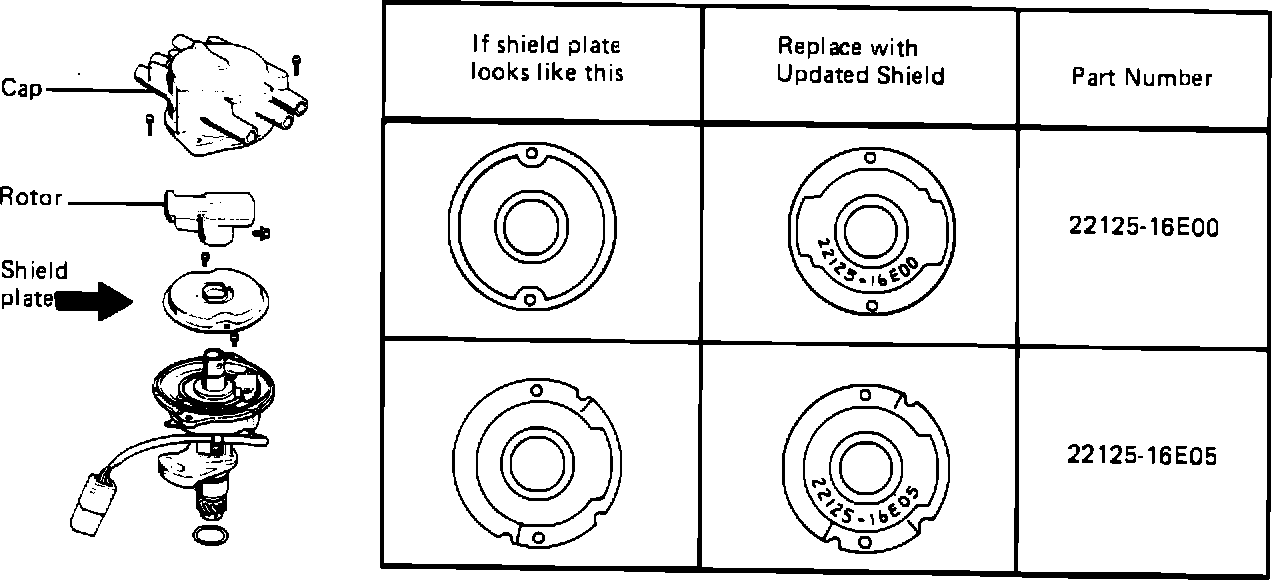

An improved distributor shield plate has been developed for use on VG30 engines. When replacing the distributor cap or rotor on any vehicle with the VG30 engine, make sure that an updated shield plate is installed. Refer to the table below for correct replacement shield plate.

NOTE: If the vehicle is already equipped with one of the updated shield plates replacing it will not be necessary.
