Removal

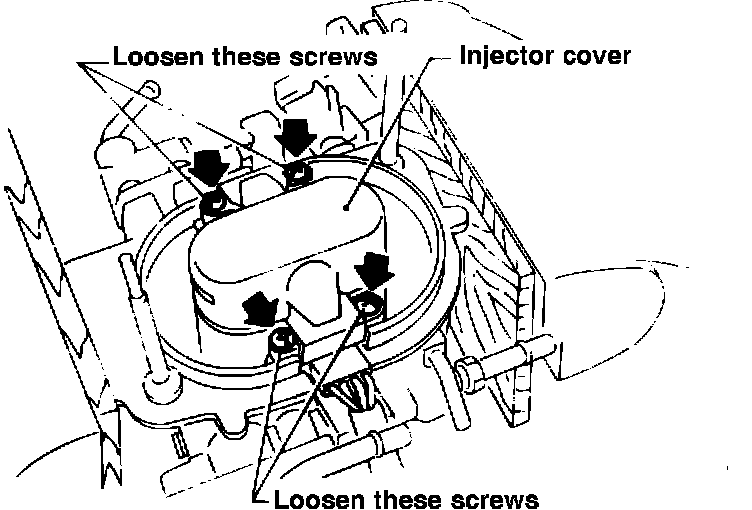

Fig. 1 Injector cover removal.:

CAUTION: REMOVE BATTERY NEGATIVE CABLE PRIOR TO INJECTION REMOVAL. INJECTOR IS POWERED AT ALL TIMES.

1. Remove Electro Injection unit from intake manifold.
2. Remove the injector cover. Fig.1

Fig. 2 Injector removal.:

Fig. 3 Injector removal.:

Fig. 4 Injector removal.:

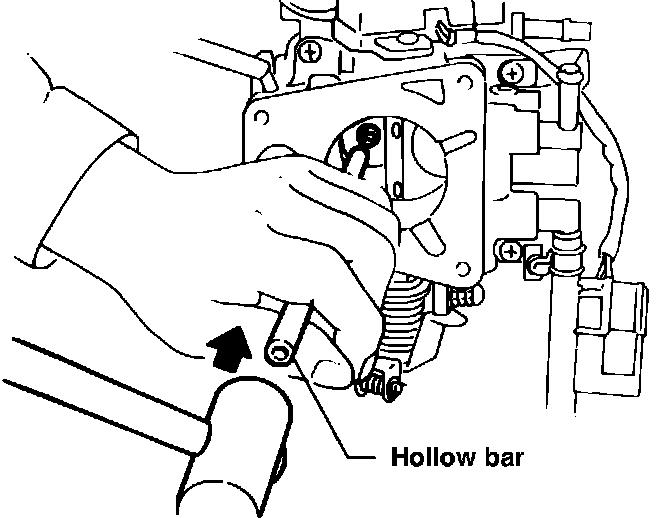

3. With the throttle valve kept fully open, tap the bottom of the fuel injector with a hollow bar Fig.2 described as follows:

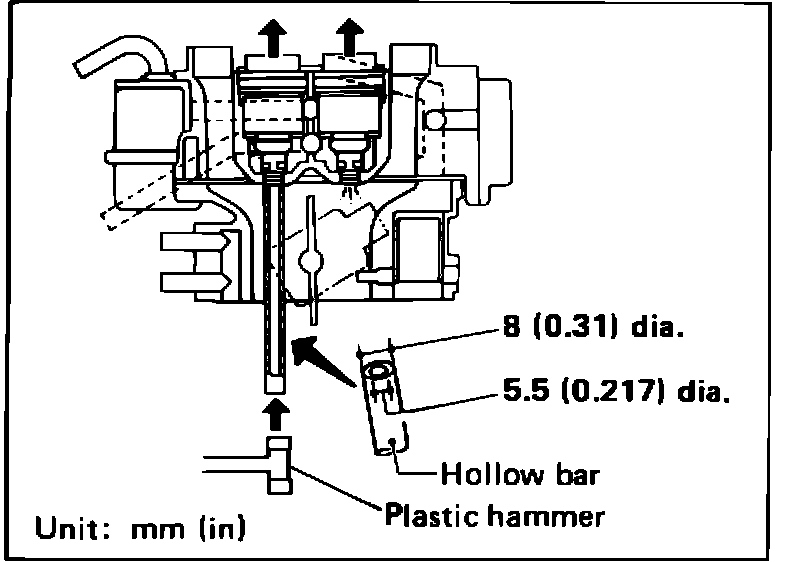

a. A hollow bar as shown Fig.3 is recommended for removing injectors. Do not use a bar with an inside diameter of less than 5.5mm (0.217 in.).

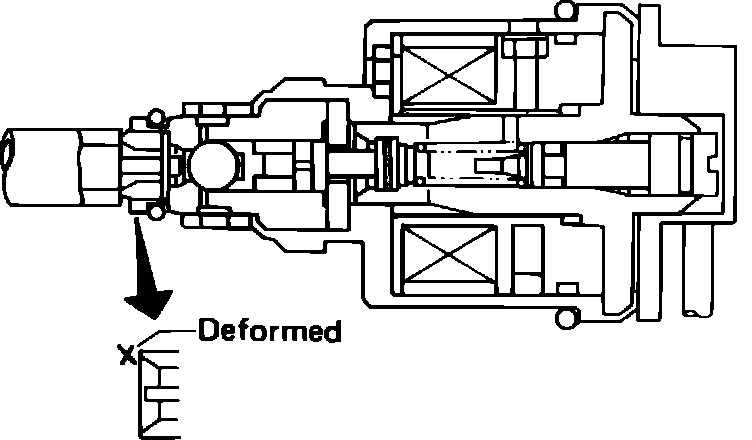

b. If the injector nozzle tip is deformed by the bar, the injector should be replaced. Fig.4
