Home >> Nissan-Datsun >> 1986 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Technical Service Bulletins >> All Technical Service Bulletins >> Emissions - Mixture Ratio Feedback System Inspection >> Mixture Ratio Feedback System Inspection - Z24I Electro Injection >> Chart 1 Checking Idle Speed and Ignition Timing

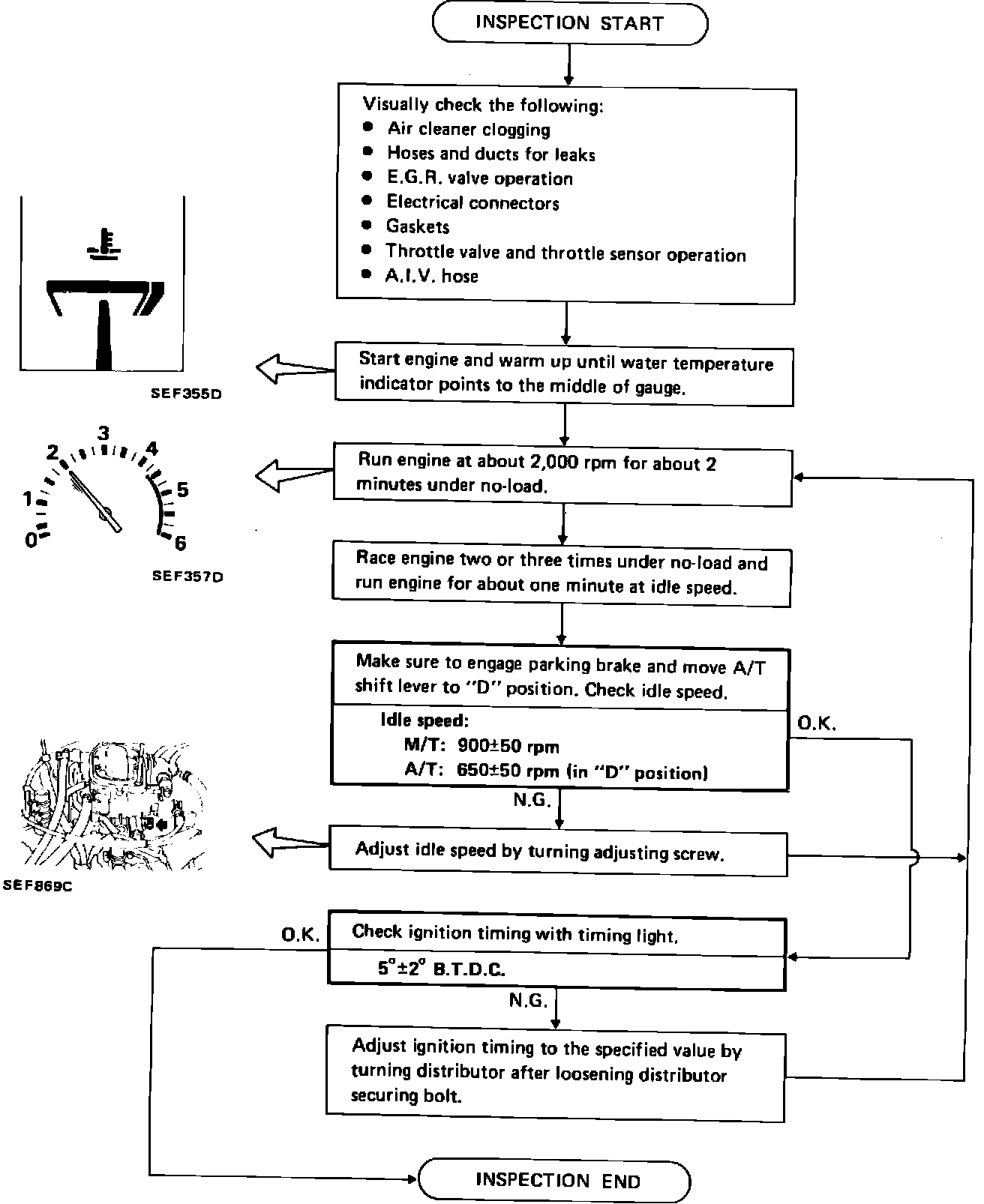

Chart 1 Checking Idle Speed and Ignition Timing
